- Microscope Type:
- Binocular
- Magnification:
- 7 - 45 x
- Color:
- White
- Head:
- Binocular, Rotatable 360, Inclined 45
- Illumination Type:
- LED
- Power:
- 110 - 220 volts
- Application:
- Applied Research
- Body Material:
- Metal
- Lens Material:
- Optical Glass
- Temperature Rating:
- 41 - 95 Fahrenheit
Code: 1RU-MI-LZ1B-76056
MPN: 76056
UPC: 753215775224

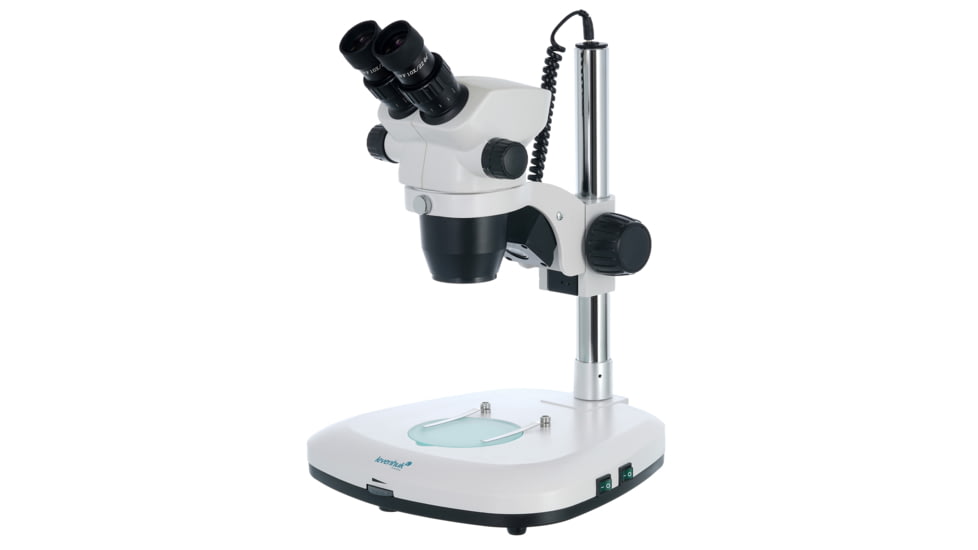

Product Info for Levenhuk ZOOM 7-45x 1B Binocular Microscope
Levenhuk ZOOM 1B is an instrumental microscope with a large working distance. It is convenient for studying geological samples, jewelry, biological objects, textiles, circuit boards, and small mechanisms. This microscope can also be used for hobbies and professional activities, e.g. in a service center or watch workshop.

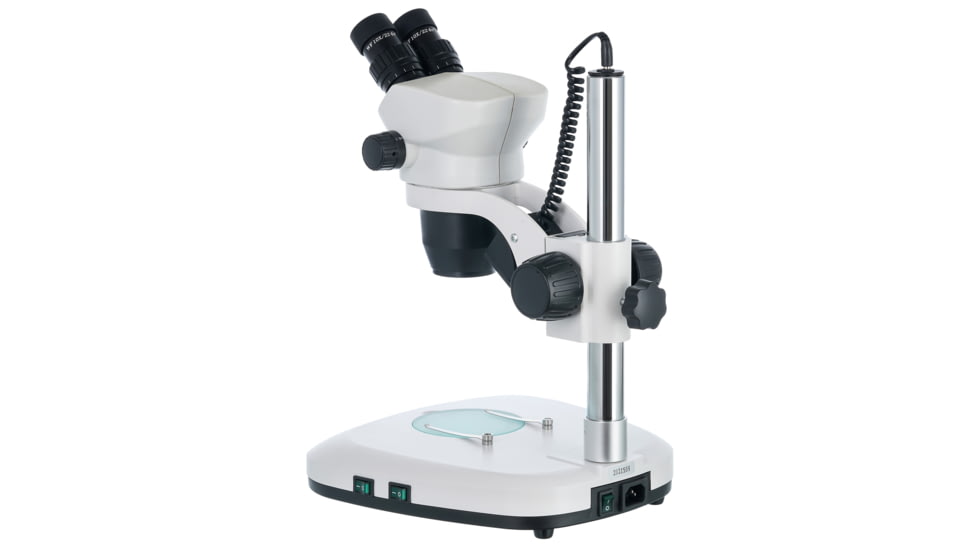

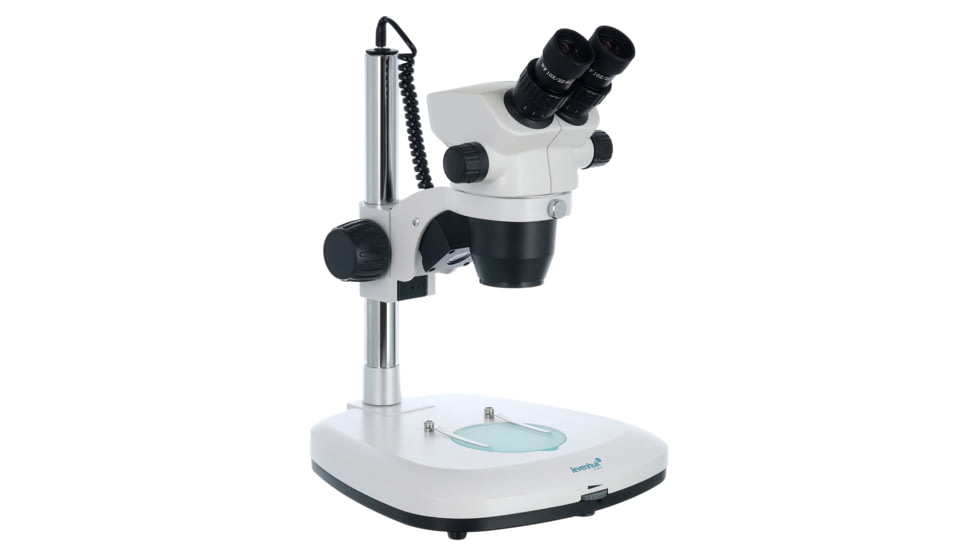

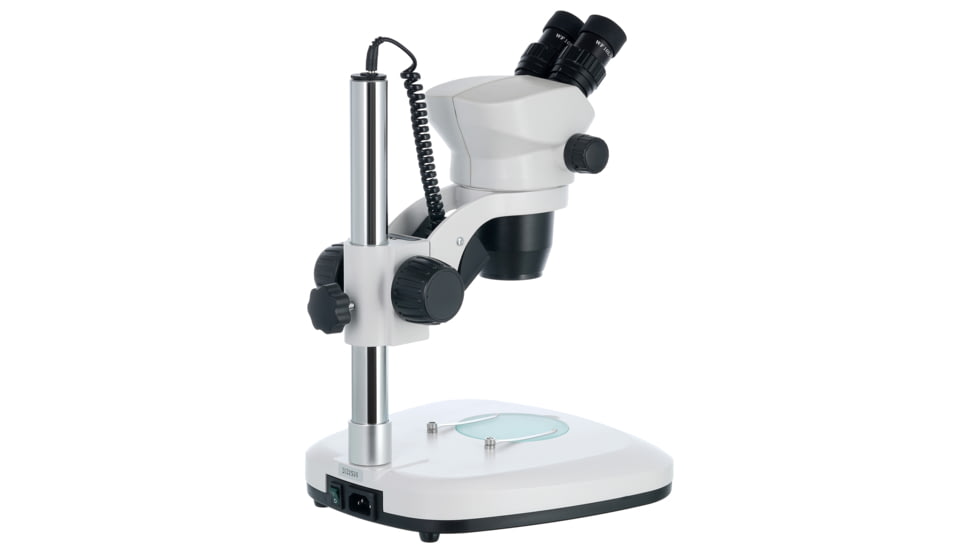

In terms of design, the microscope consists of a base, vertical stand, and optical head. You can conduct observations with both eyes at the same time, the head is slightly angled and can be rotated at 360. The kit includes two wide-field eyepieces with 10x magnification. The optical scheme is supplemented by a zoom objective, thanks to which you can change the magnification of the microscope not stepwise, but smoothly. An overall magnification range varies from 7 to 45 times. Coarse focusing adjustment is available.

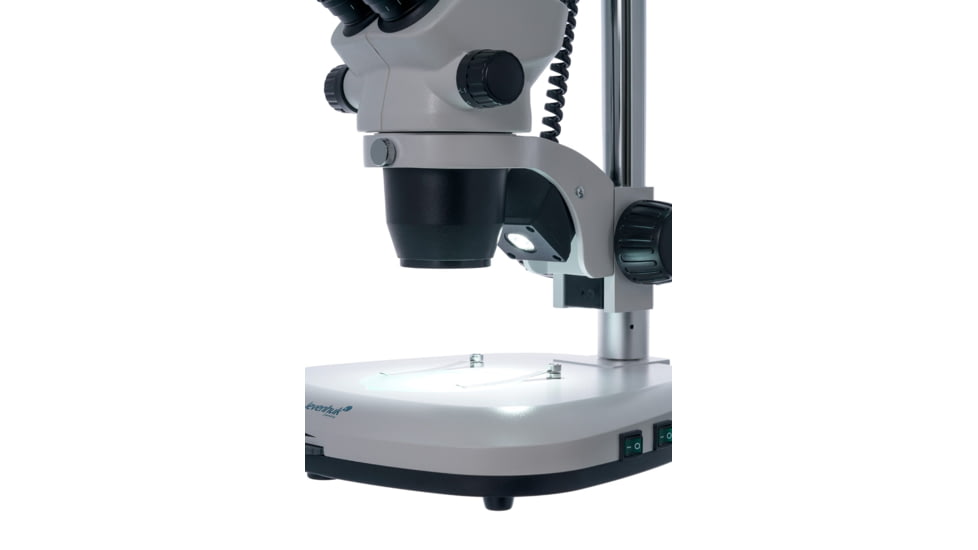

The microscope features two light sources: upper and lower LED lights. This allows for studying samples of any degree of transparency. Brightness adjustment makes it easy to choose an optimal level of illumination so that you can study any of them. The light is powered by an AC power supply.
The microscope body is made of metal, which makes it durable and robust.
Features of Levenhuk ZOOM 7-45x 1B Binocular Microscope
- Stereoscopic (3D) image
- Eyepiece tube diameter, mm: 30

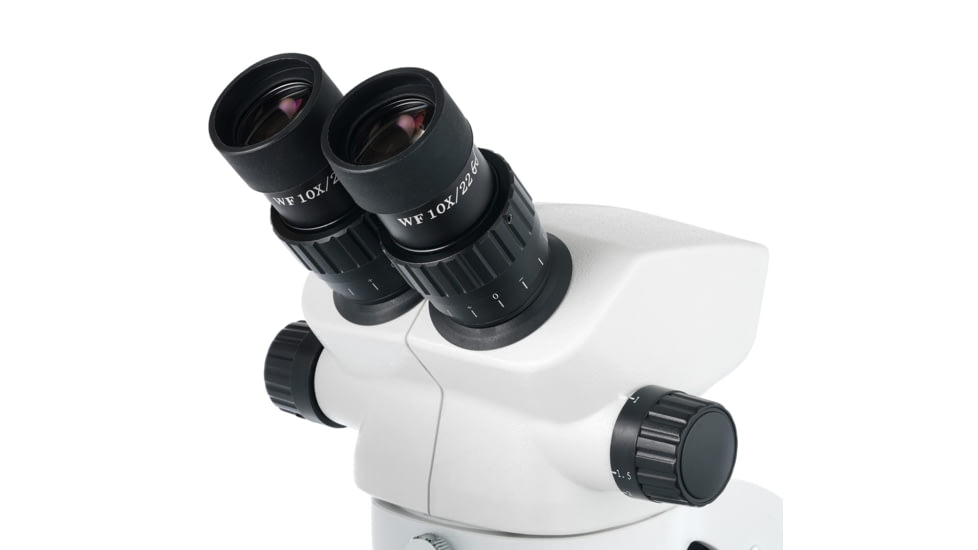

- Eyepieces: WF10x/22 (2 pcs)
- Objectives: zoom: 0.7x-4.5x
- Working distance, mm: 235
- Interpupillary distance, mm: 48-75

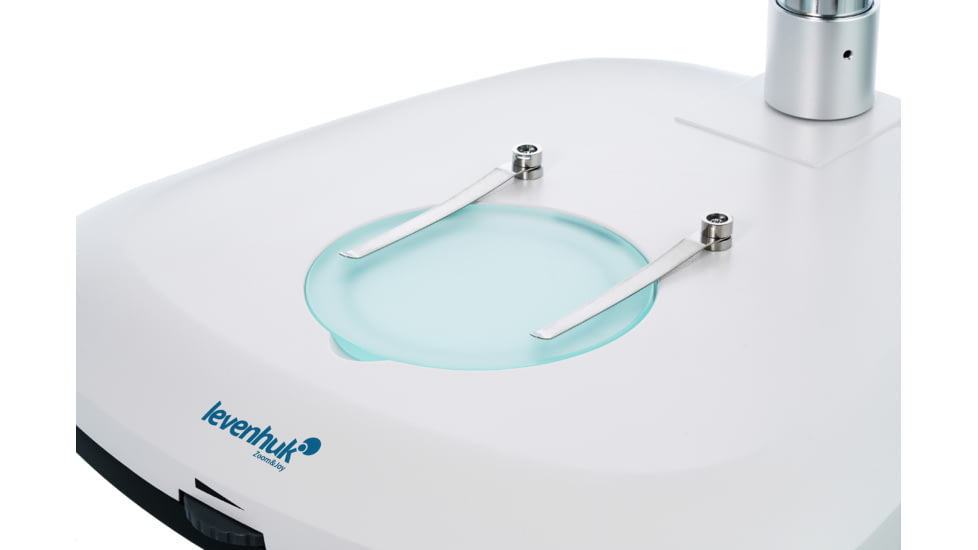

- Stage, mm: "95: matte plate, black-and-white double-sided plate
- Stage moving range, using focusing mechanism, mm: Fixed
- Eyepiece diopter adjustment, diopters: ±5

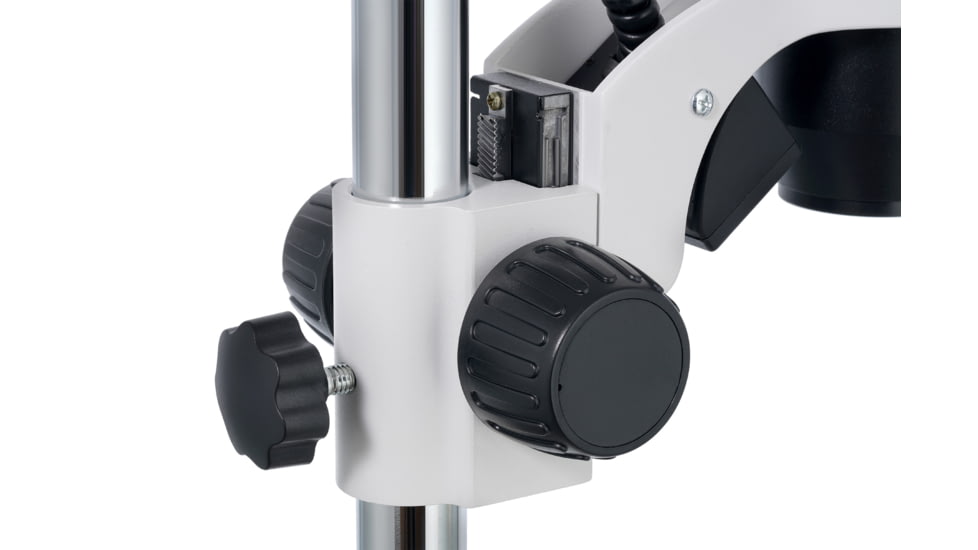

- Focus: Coarse 50mm
- Brightness adjustment: Yes
- Light source type: Upper: 3W LED, Lower: 2W LED
- Assembly and setup: Extremely simple
- General use product. May be used by kids over 3 years old

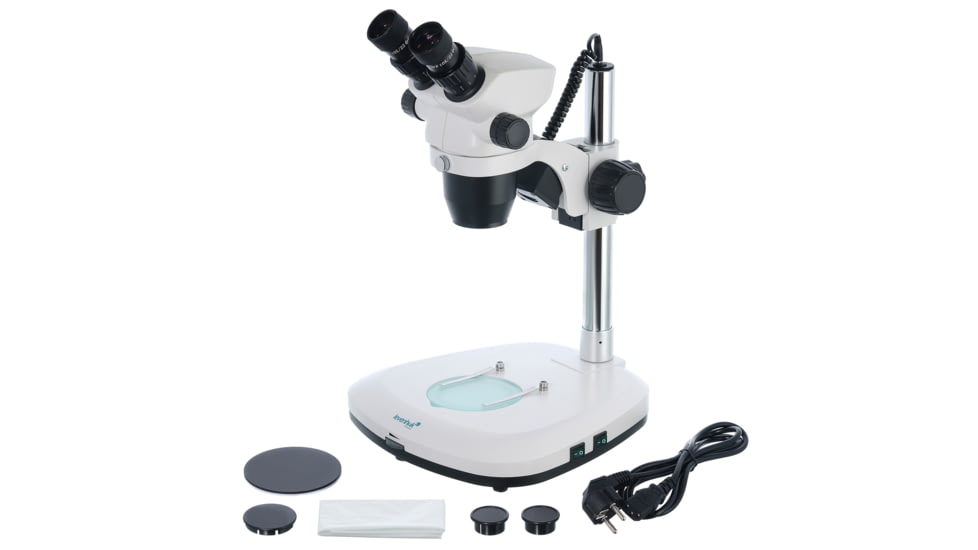

Package Contents:
- Levenhuk ZOOM 7-45x 1B Binocular Microscope
- WF10x eyepieces with eyecups (2 pcs)
- Zoom objective: 0.7x4.5x
- Stage made of matte glass
- Black-and-white double-sided plate
- Power cord with an AC adapter
- Dust cover
- User manual and lifetime warranty
