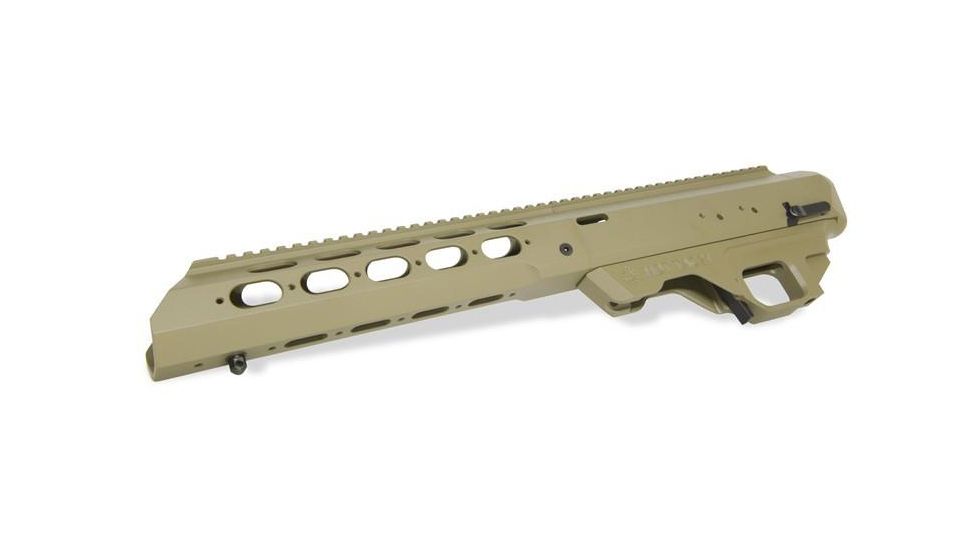

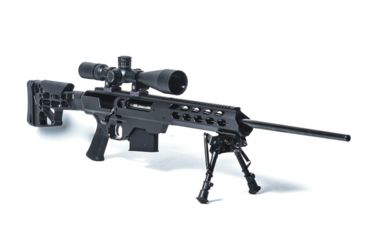

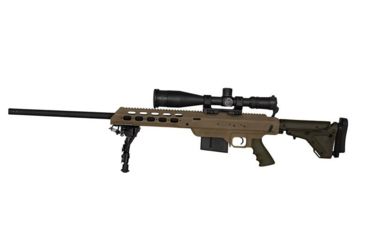

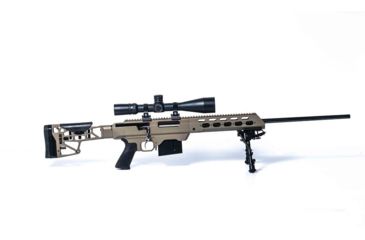

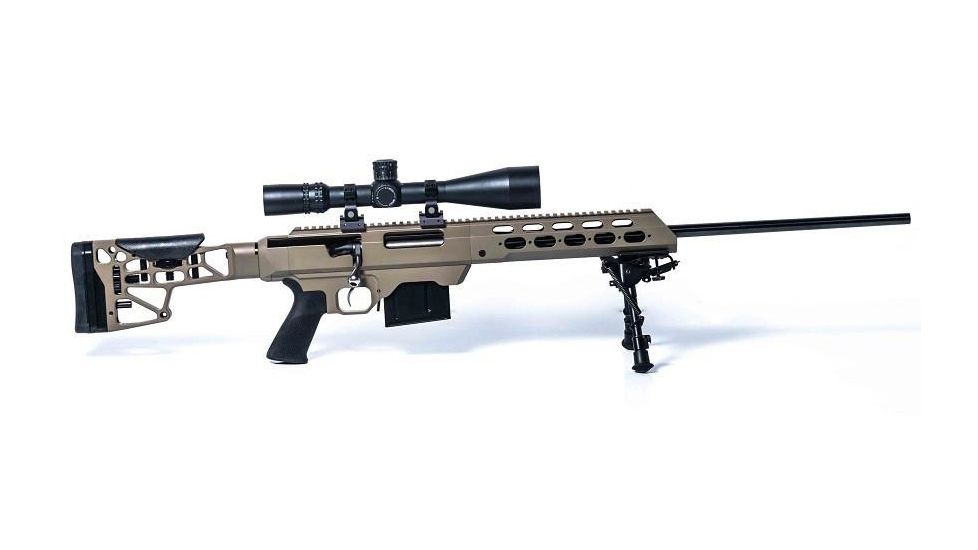

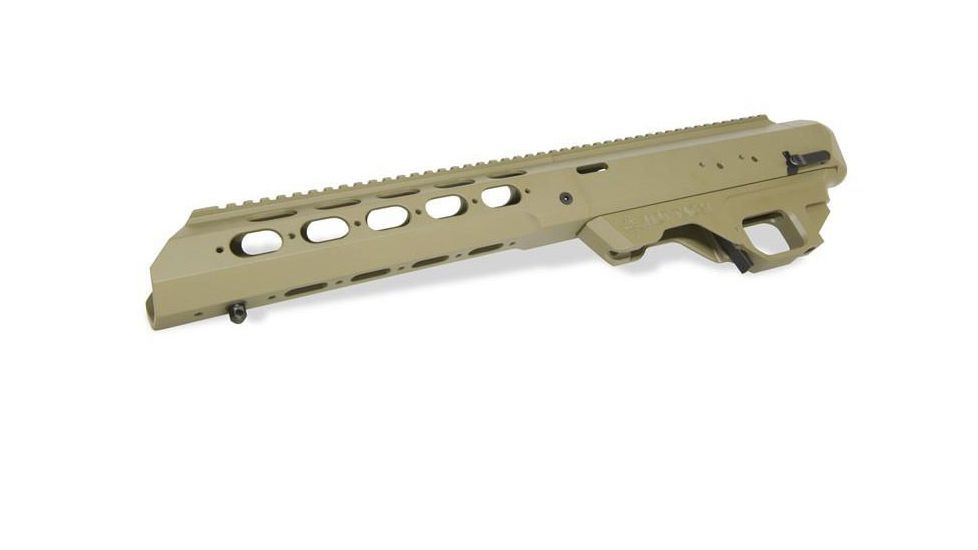

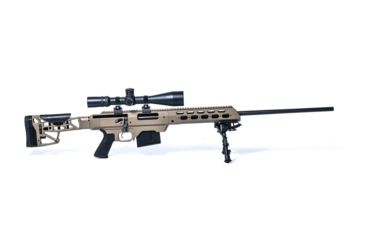

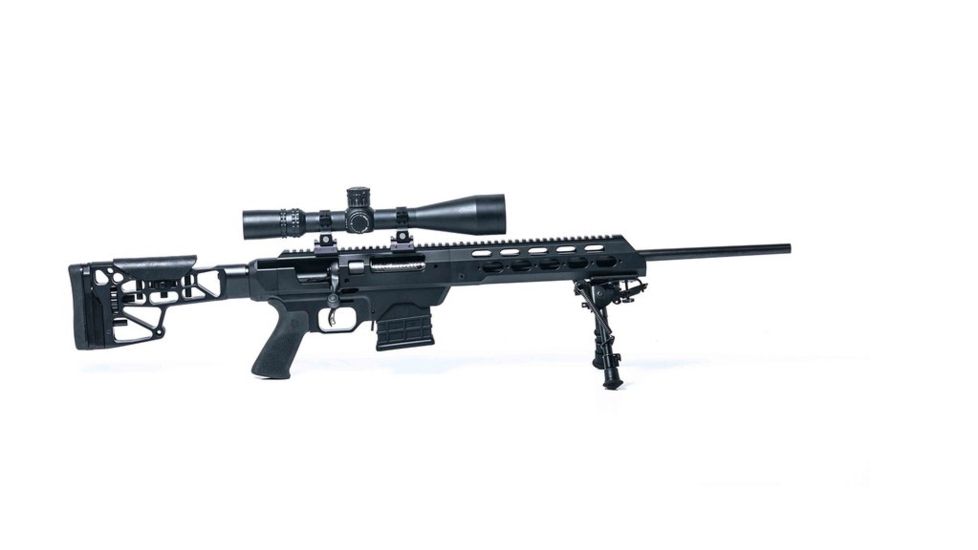

MDT TAC21 Chassis System for Remington 700

The action sits in flat spots inside the action housing and is the only contact point for ultimate accuracy.

Our TAC21 chassis system is a combination of benchrest accuracy, superior ergonomics and specialized design. This chassis brings the bolt action rifles to the next level in versatility and modularity, with an instant improvement in accuracy.

The chassis system is manufactured out of billet 6061-T6 aluminum, which has been finished with Cerakote in Black or Flat Dark Earth (FDE).

TAC21 chassis is engineered to minimize warping and distortion. The rifle receiver only makes contact with the TAC21 chassis on the V shape bedding and recoil lug area insuring the best accuracy and repeatability. The generous clearance on the forend makes any barrel (diameter up to the receiver size 1.350) free floating.

TAC21 End Cap

The end cap features a quick release lever which is tightly locked in place, allowing quick removal of the buttstock and bolt.

Inherently, the TAC21 has a straight-line design, meaning that the recoil comes straight back instead of making the front of the rifle kick upwards. This results in more accurate and quicker follow up shots. This also translates to a decrease in felt recoil and increase in comfort.

MOUNTING AND COMPATIBLE ACCESSORIES

The TAC21 chassis is designed to accept any AR-15 butt-stock or our Skeleton Carbine Stock and pistol grip (purchased separately), offering the option to customize from the wide variety of Accessories available on the market.

The TAC21 chassis uses external box style magazines in .223 and .308 caliber for Short Action and .300WM or .338LM magazines for Long Action rifles, and supports installation of bolt on MIL-STN-1913 accessory mounting rails on the forend and side of the action housing. Mounting holes are spaced for Magpul style L5 (11 slots) and L3 (7 slots) rails (1.600 / 3.200).

With a top full length MIL-STN-1913 accessories mounting rail. The built-in mounting rail has 20 MOA (Minutes of Angle) on the action housing and is parallel to the barrel axis on the fore-end.

TAC21 Sling Swivel Stud

Forend has sling swivel stud installed, which can be removed to install a rail for rail mounted bipods.

Note: Long action magazines come in 3 different lengths: 3.715", 3.775" an 3.850". Our chassis use 3.715 magazines. If you purchased the Remington 700 Tactical Chassis Rifle, the magazine well is 3.775.

SPECIFICATIONS

Increases accuracy by up to 28%

CNC Machined from 6061 aluminum

Cerakote Finish in Black or Flat Dark Earth

20 MOA built in top rail

Hole spacing for Magpul L5(11slot) and L3(7slot)Rails

Lightweight, free-floating modular forend

Will accommodate barrels as thick as the action

Compatible with AICS style magazines in .223 or .308 (SA) and 300WM, 30.06, 338LM (LA). (Long Action Magazine length 3.715)

Weight: 3lb - 3.6lb

WHAT YOU GET, AND WHAT YOU NEED

The TAC21 chassis system comes as a 4-piece chassis, with all required mounting hardware included. This includes new action screws, and a screw for the pistol grip.

To complete this chassis on your rifle, the additional items you need to purchase are:

Any AR-15 buttstock or our Skeleton Rifle Stock.

A buffer tube for your buttstock. (Both milspec and commercial work on our chassis)

An AR-15 Pistol Grip

At least one magazine

For a lighter, more compact chassis, please also see our LSS chassis System or our HS3 Chassis System.

Features of MDT TAC21 Chassis System for Remington 700:

• Increases accuracy by up to 28%
• CNC Machined from 6061 aluminum
• Cerakote Finish in Black or Flat Dark Earth
• 20 MOA built in top rail
• Hole spacing for Magpul L5(11slot) and L3(7slot)Rails
• Lightweight
• free-floating modular forend
• Will accommodate barrels as thick as the action
• Compatible with AICS style magazines in .223 or .308 (SA) and 300WM
• 30.06
• 338LM (LA)
• (Long Action Magazine length 3.715)

Package Contents:

• MDT TAC21 Chassis System for Remington 700
