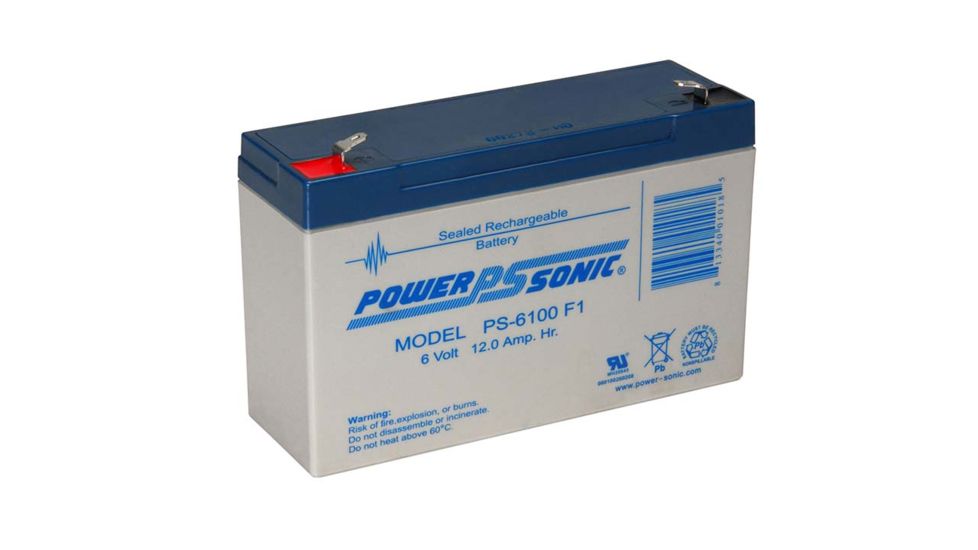

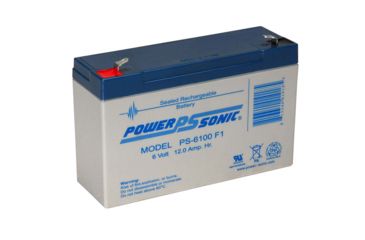

Power Sonic 6 Volt 12Ah Sealed Lead Acid Battery w/ F1 Terminal PS-6100-F1

Features/Specifications:

Sealed and maintenance-free

High discharge rate

Economical

Wide operating temperature range

Design flexibility

Easy handling

Long shelf life

Rugged Construction

Deep discharge recovery

Compact

Long Service Life

Chemistry: SLA (Sealed Lead Acid)

Terminal Type: F1 of F2

Nominal Voltage: 6 Volts (3 Cells)

Nominal Capacity:

20-Hour (600mA to 5.25V)........ 12.00 Ah

10-Hour (1.15A to 5.25V)......... 11.50 Ah

5-Hour (2.1A to 5.10V)......... 10.50 Ah

1-Hour (7.3A to 4.50V)......... 7.30 Ah

15-Min. (22.3A to 4.50V)......... 5.58 Ah

Energy Density (20-Hour Rate): 1.64 W-h/in (99.79 W-h/l)

Specific Energy (20-Hour Rate): 16.74 W-h/lb (36.91 W-h/kg)

Internal Resistance (approx.): 10 milliohms

Max Discharge Current (7 Min.): 36.0 amperes

Max Short-Duration Discharge Current (10 Sec.): 120.0 amperes

Shelf Life (% of nominal capacity at 68F (20C)):

1 Month ......... 97%

3 Months ........ 91%

6 Months ........ 83%

Charge: -4F (-20C) to 122F (50C)

Discharge: -40F (-40C) to 140F (60C)

Dimensions (LxWxH): 5.95in x 2.00in x 3.86in (151mm x 51mm x 98mm)

Approximate Weight: 4.30 lbs. (1.95 kg)

Features of Power Sonic 6 Volt 12Ah Sealed Lead Acid Battery w/ F1 Terminal:

• Sealed and maintenance-free
• High discharge rate
• Economical
• Wide operating temperature range
• Design flexibility
• Easy handling
• Long shelf life
• Rugged Construction
• Deep discharge recovery
• Compact
• Long Service Life
• Chemistry: SLA (Sealed Lead Acid)
• Terminal Type: F1 of F2
• Nominal Voltage: 6 Volts (3 Cells)
• Nominal Capacity:
• 20-Hour (600mA to 5.25V).......
• 12.00 Ah
• 10-Hour (1.15A to 5.25V)........
• 11.50 Ah
• 5-Hour (2.1A to 5.10V)........
• 10.50 Ah
• 1-Hour (7.3A to 4.50V)........
• 7.30 Ah
• 15-Min
• (22.3A to 4.50V)........
• 5.58 Ah
• Energy Density (20-Hour Rate): 1.64 W-h/in (99.79 W-h/l)
• Specific Energy (20-Hour Rate): 16.74 W-h/lb (36.91 W-h/kg)
• Internal Resistance (approx.): 10 milliohms
• Max Discharge Current (7 Min.): 36.0 amperes
• Max Short-Duration Discharge Current (10 Sec.): 120.0 amperes
• Shelf Life (% of nominal capacity at 68F (20C)):
• 1 Month ........
• 97%
• 3 Months .......
• 91%
• 6 Months .......
• 83%
• Charge: -4F (-20C) to 122F (50C)
• Discharge: -40F (-40C) to 140F (60C)
• Dimensions (LxWxH): 5.95in x 2.00in x 3.86in (151mm x 51mm x 98mm)
• Approximate Weight: 4.30 lbs
• (1.95 kg)

Package Contents:

• Power Sonic 6 Volt 12Ah Sealed Lead Acid Battery w/ F1 Terminal
