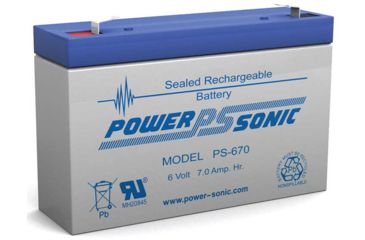

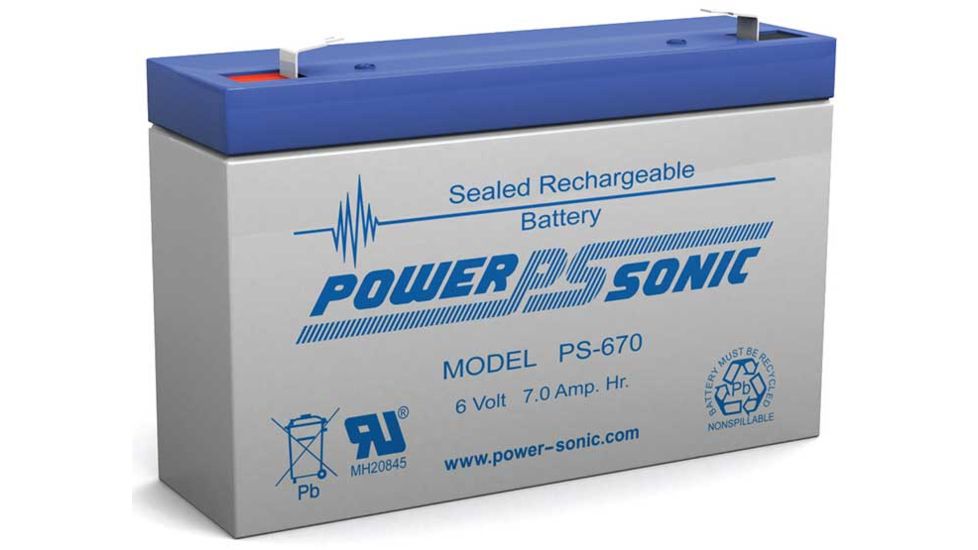

Power Sonic PS670F1 6V 7Ah Sealed Lead Acid Battery PS-670

Features/Specifications:

Absorbent Glass Mat (AGM) technology for superior performance

Valve regulated, spill proof construction allows safe operation in any position

Power/volume ratio yielding unrivaled energy density

Rugged impact resistant ABS case and cover (UL94-HB)

Approved for transport by air. D.O.T., I.A.T.A., F.A.A. and C.A.B. certified

U.L. recognized under file number MH 20845

Chemistry: SLA (Sealed Lead Acid)

Terminal Type: F1

Nominal Voltage: 6 Volts (3 Cells)

20-Hour (350mA to 5.25V)........ 7.00 Ah

10-Hour (630mA to 5.25V)......... 6.30 Ah

5-Hour (1.19A to 5.10V)......... 5.95 Ah

1-Hour (4.34A to 4.50V)......... 4.34 Ah

15-Min. (13.5A to 4.50V)......... 3.38 Ah

Energy Density (20-Hour Rate): 1.42 W-h/in (86.88 W-h/l)

Specific Energy (20-Hour Rate): 17.36 W-h/lb (38.26 W-h/kg)

Internal Resistance (approx.): 15 milliohms

Max Discharge Current (7 Min.): 21.0 amperes

Max Short-Duration Discharge Current (10 Sec.): 70.0 amperes

Shelf Life (% of nominal capacity at 68F (20C)):

1 Month ......... 97%

3 Months ........ 91%

6 Months ........ 83%

Charge: -4F (-20C) to 122F (50C)

Discharge: -40F (-40C) to 140F (60C)

Dimensions (LxWxH): 5.95in x 1.34in x 3.70in

Approximate Weight: 2.42 lbs. (1.10 kg)

Features of Power Sonic PS670F1 6V 7Ah Sealed Lead Acid Battery:

• Absorbent Glass Mat (AGM) technology for superior performance
• Valve regulated
• spill proof construction allows safe operation in any position
• Power/volume ratio yielding unrivaled energy density
• Rugged impact resistant ABS case and cover (UL94-HB)
• Approved for transport by air
• D.O.T.
• I.A.T.A.
• F.A.A
• and C.A.B
• certified
• U.L
• recognized under file number MH 20845
• Chemistry: SLA (Sealed Lead Acid)
• Terminal Type: F1
• Nominal Voltage: 6 Volts (3 Cells)
• 20-Hour (350mA to 5.25V).......
• 7.00 Ah
• 10-Hour (630mA to 5.25V)........
• 6.30 Ah
• 5-Hour (1.19A to 5.10V)........
• 5.95 Ah
• 1-Hour (4.34A to 4.50V)........
• 4.34 Ah
• 15-Min
• (13.5A to 4.50V)........
• 3.38 Ah
• Energy Density (20-Hour Rate): 1.42 W-h/in (86.88 W-h/l)
• Specific Energy (20-Hour Rate): 17.36 W-h/lb (38.26 W-h/kg)
• Internal Resistance (approx.): 15 milliohms
• Max Discharge Current (7 Min.): 21.0 amperes
• Max Short-Duration Discharge Current (10 Sec.): 70.0 amperes
• Shelf Life (% of nominal capacity at 68F (20C)):
• 1 Month ........
• 97%
• 3 Months .......
• 91%
• 6 Months .......
• 83%
• Charge: -4F (-20C) to 122F (50C)
• Discharge: -40F (-40C) to 140F (60C)
• Dimensions (LxWxH): 5.95in x 1.34in x 3.70in
• Approximate Weight: 2.42 lbs
• (1.10 kg)

Package Contents:

• Power Sonic PS670F1 6V 7Ah Sealed Lead Acid Battery
