- Objective Lens Diameter:
- 44 mm
- Magnification:
- 10 x
- Reticle:
- Illuminated MOA Scale Type 1
- Tube Diameter:
- 30 mm
- Adjustment Click Value:
- 0.25 MOA
- Adjustment Type:
- MOA
- Magnification Type:
- Fixed
- Gun Type:
- Rifle
Code: XP-RS-ST10ERGOSLIM-ST-1001
MPN: ST-1001

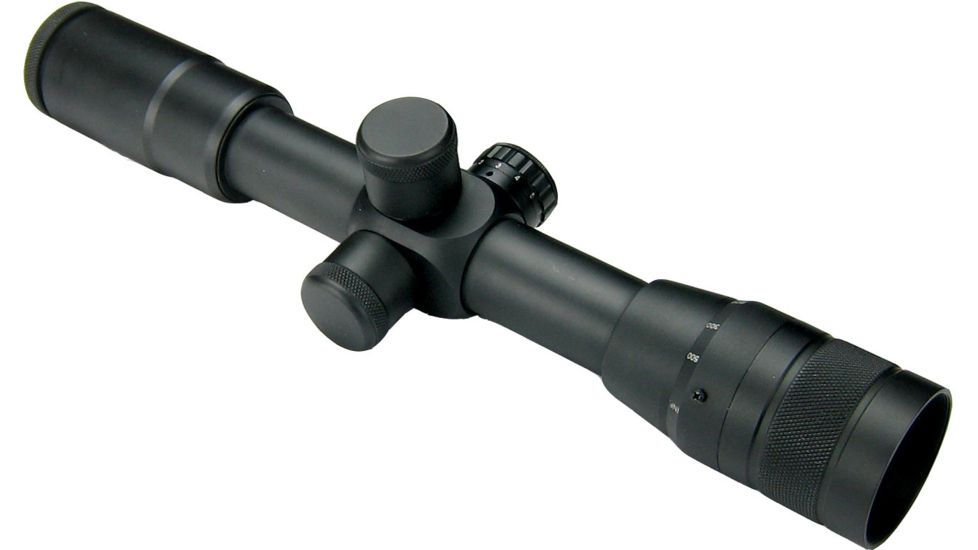

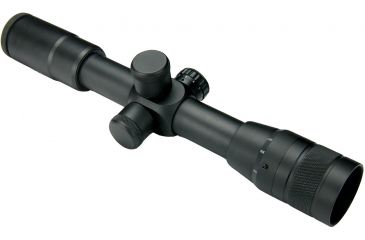

Product Info for U.S Optics 10x ST10 ERGO Parallax Ill Rifle scope with Slimline Knobs
U.S Optics 10x ST10 ERGO Parallax, Type III Rifle Scope with Slimline Knobs is a fixed magnification scope that is made for target engagement out to 1000+ yards. Reliable adjustments and extreme durability make this Rifle Scope by US optics a very affordable medium-long range tool that will fit well with most rifle platforms. MOA and MIL adjustments, along with MOA or MIL reticles allow you to use whatever combination you desire. Standard 30mm tube diameter will yield 100MOA of total elevation adjustment. Scope body, eye piece, objective housing and any and all other body parts are made with 6061-T6 aircraft aluminum and are then coated with a matte black type III hard anodizing. Elevation knobs materials consist of stainless, brass and 4130 Chrome Moly, ball detents are tungsten carbide with a stainless steel jacket. Duel elevation and windage rebound springs will insure decades of reliable and accurate adjustments.
- Available models of U.S. Optics 10x ST-10 ERGO Parallax Ill Rifle Scope:
- ST-1001: U.S. Optic 10 x ST-X ERGO Parallax Scope, MOA Scale Type 1 Reticle 1/4 MOA Slim line Knobs
- ST-1003: U.S.Optics 10 x ST-10 ERGO Parallax, Type-3 Rifle scope, RDP MOA Reticle 1/4 MOA Slimline Knobs
- ST-1014: US Optics 10x ST10 ERGO Parallax Ill Rifle Scope, MIL Scale GAP Reticle .1 MIL Slimline Knob

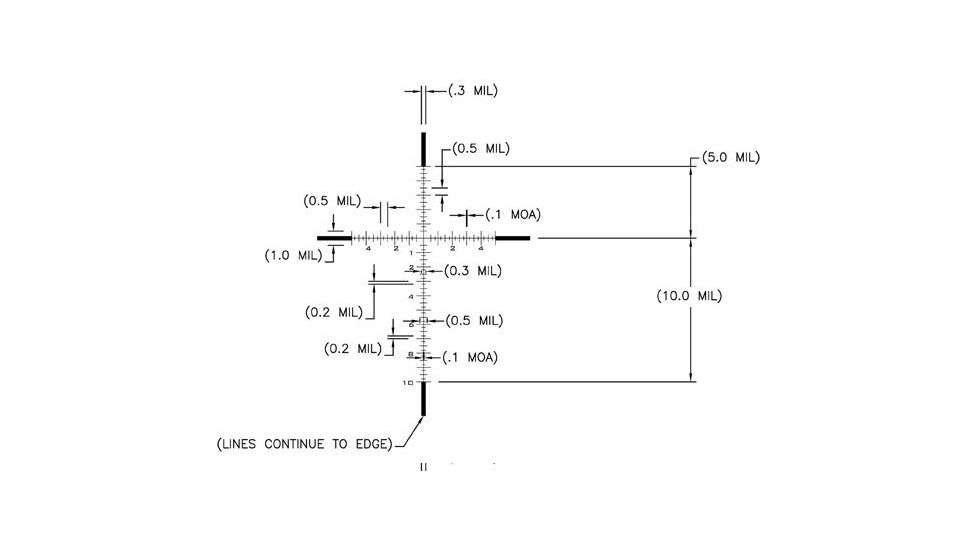

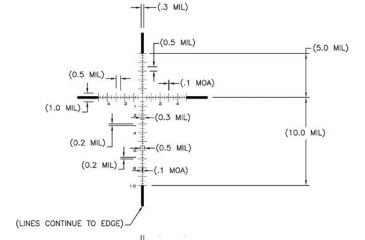

- ST-1015: U.S.O. 10x ST 10 Rifle scope E.R.G.O Parallax, Type III, MIL Scale MPR Reticle .1 MIL Slimline Knobs
Specifications for USOptics 10x ST 10 ERGO Parallax III Scope:
| Model: | ST-10 |
| Power: | 10x |
| Length: | 12.00 |
| Weight: | 1.50 |
| Eye Relief: | 3.5 |
| Eyepiece: | Rapid Focus |
| Eyepiece Housing: | Low Profile |
| Tube: | 30mm |
| Color: | Matte Black |
| Elevation Knob: | U.S.#1 1/4 MOA |
| Windage Knob: | U.S.#1 1/4 MOA |
| Reticle: | Mil-Dot |
| Lit Reticle: | Yes |
| Parallax: | FIXED |
| Objective: | 44mm |
Package Contents:
- U.S Optics 10x ST-10 E.R.G.O. Parallax Rifle Scope with Slimline Knobs
Related Products to U.S Optics 10x ST10 ERGO Parallax Ill Rifle scope with Slimline Knobs
U.S Optics 10x ST10 ERGO Parallax Ill Rifle scope with Slimline Knobs Unavailable & Discontinued Models
List of Unorderable Models
- U.S. Optics 10x ST-10 ERGO Parallax Ill. Reticle MOA Scale Type 1 Reticle 1/4 MOA Slimline Knobs, ST-1001 , MPN: ST-1001 , Code: XP-RS-ST10ERGOSLIM-ST-1001
- U.S. Optics 10x ST-10 ERGO Parallax Ill. Reticle MIL Scale GAP Reticle .1 MIL Slimline Knobs, ST-1014 , MPN: ST-1014 , Code: XP-RS-ST10ERGOSLIM-ST-1014
- U.S. Optics 10x ST-10 ERGO Parallax Ill. Reticle RDP MOA Reticle 1/4 MOA Slimline Knobs, ST-1003 , MPN: ST-1003 , Code: XP-RS-ST10ERGOSLIM-ST-1003
- U.S. Optics 10x ST-10 ERGO Parallax Ill. Reticle MIL Scale MPR Reticle .1 MIL Slimline Knobs, ST-1015 , MPN: ST-1015 , Code: XP-RS-ST10ERGOSLIM-ST-1015
