Leupold Mark-4 2.5-8x36mm Mid-Range / Tactical (MR/T) M1 Scope is designed for the U.S. military. Leupold Mark 4 2.5-8x36mm MR/T M1 Military Riflescope is the
scope of choice for those situations where the requirements of the mission can change as fast as the weather. A 30mm maintube design of Leupold Riflescope offers additional windage and elevation adjustment. The M1 style 1/4 MOA adjustment knobs with audible and tactile clicks allow that adjustment to be made quickly. A fast focus eyepiece with special eye relief ideally suited to AR15 and M16 style rifles and a small overall size makes this powerful scope from Leupold just as small as possible without compromising one bit on performance. Leupold Mark 4 Mid-Range Tactical Scope MR/T M1 optical and mechanical systems are covered by the Leupold Full Lifetime Guarantee while the electronics are covered by the Leupold Electronics Warranty.
| Actual Magnification: | 2.6-7.8 | |
| Length (in): | 11.3 | |
| Eyepiece Length (in): | 3.1 | |
| Objective Length (in): | 2.6 | |
| Objective Diameter (in): | 1.7 | |
| Eyepiece Diameter (in): | 1.7 | |
| Tube Diameter: | 30mm | |
| Weight: | 16.0 oz. / 454 grams | |
| Eye Relief (in): | 4.7 3.7 | |
| Eye Relief (mm): | 119 94 | |
| Obj. Lens Diameter: | 1.4in / 36mm | |
| Max. Adjustment @ 100 yds (in): | 90 | |
| Max. Adjustment @ 100 m (cm): | 229 | |
| FOV @ 100 yds (ft): | 37 13.5 | |
| FOV @ 100 m (m): | 12.3 4.5 | |
| Ring Spacing | ||
| Max. Mount Ring Spacing (in): | 5.8 | |
| Front Ring Space (in): | 1.9 | |
| Rear Ring Space (in): | 2.4 | |

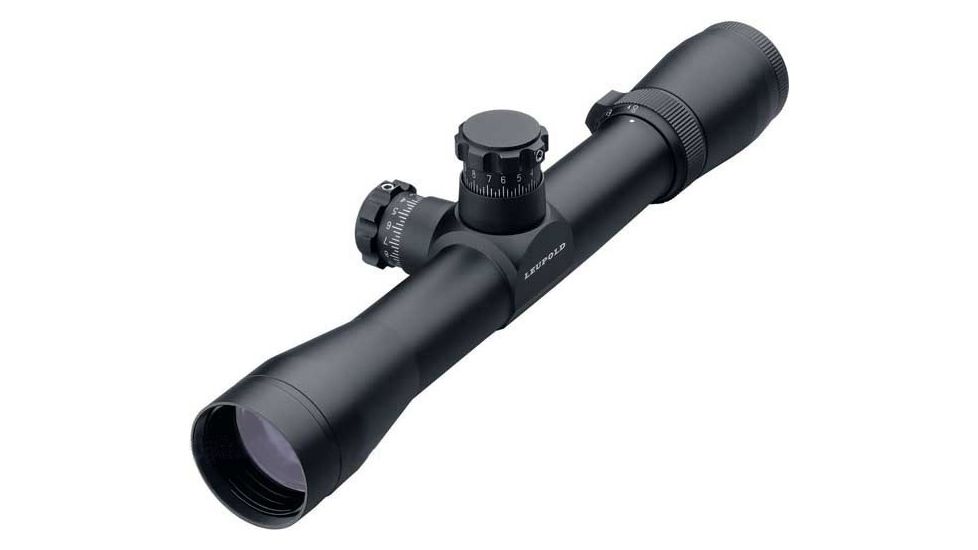

Leupold Mark 4 2.5-8x36mm MR/T M1 Tactical Scopes

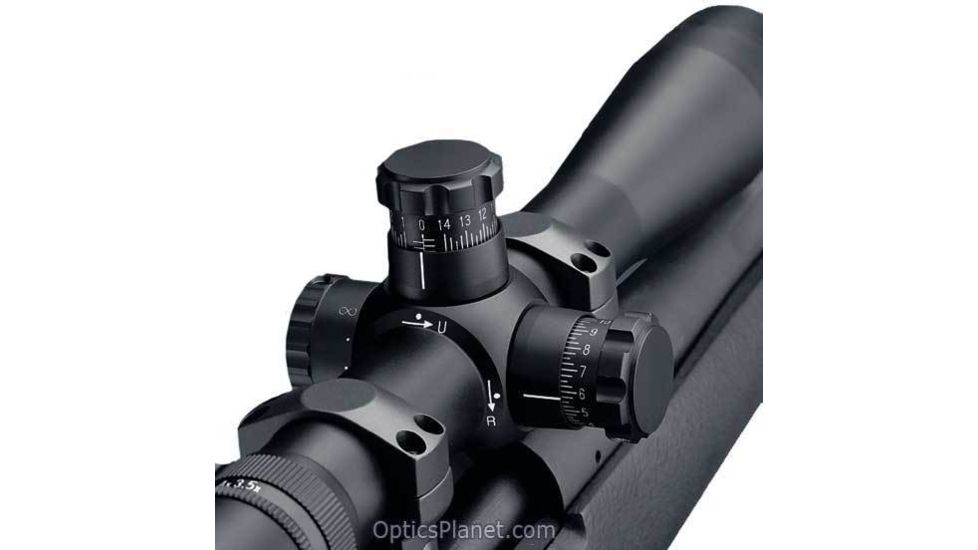

M1 Dials
Tactical Milling Reticle
