Product Discontinued by Manufacturer

Navman iCN 650 Drive-Away Navigation System GPS - AA005360 has been discontinued by Navman and is no longer available. Our product experts have helped us select these available replacements below. You can also explore other items in the GPS category yourself to try and find the perfect replacement for you!

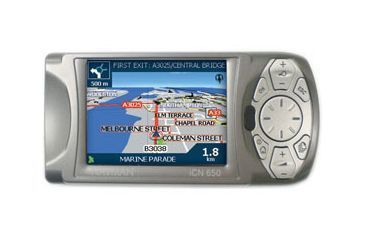

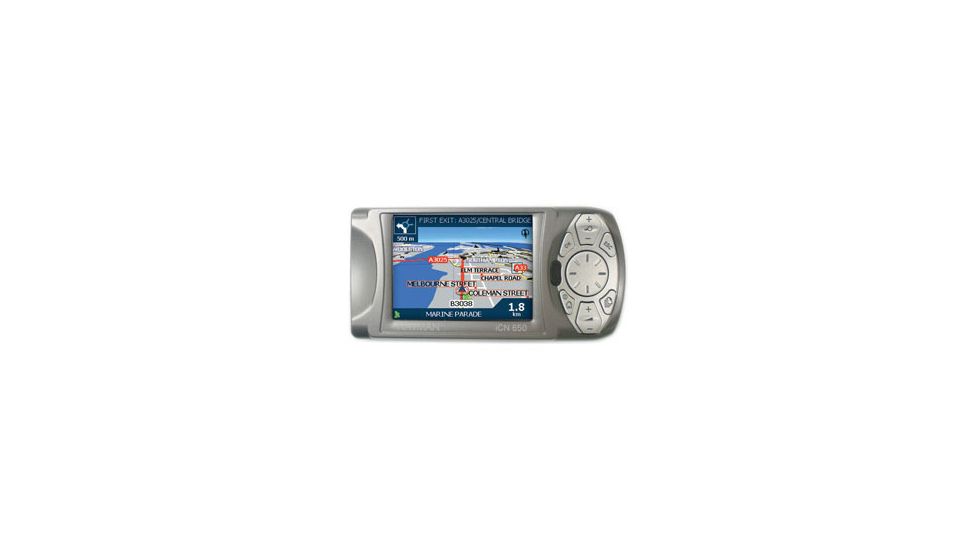

Navman iCN 650 Drive-Away Navigation System GPS - AA005360 Product Info

Relax with the confidence of TeleAtlas® for United States and imageCanada map data. Combined with our powerful SmartSTTM V 3.00 3D navigation software, Navman iCN 650 will give you a premier mobile GPS street mapping solution!

iCN 650 comes with United States and Canada maps already preloaded into the unit's hard drive. There is no need to install a software and activate it, you just plug your Navman iCN 650 GPS unit into any car's cigarette lighter and go.

Specifications for Navman iCN 650 Drive-Away Navigation System GPS - AA005360:

  Display
Display Type:   TFT, Advanced Automotive Active Matrix, Daylight Viewable
Resolution:   320x240, landscape
Colors:   64K color palette
  Processor
Microprocessor:   Intel® PXA255 Applications Processor with Intel® X-ScaleTM Technology
  Memory
Internal Storage:   2GB of storage preloaded with United States and Canada maps
External SDRAM:   128MB for system memory
  Power
Supply voltage rate:   5.0 V +/- 5%, 2.5 A
External power VPA:   12V DC input, 5V DC output
  Working/Storage Conditions
Operating Temperature:   0ºC to + 70ºC
Storage Temperature:   -10ºC to + 85ºC
Relative Humidity:   20% to 80%, non-condensingc
  Case
Case material:   Magnesium alloy
Case color:   Split case, dark metallic grey coloring
Printing:   Small NAVMAN brand printed on front case with model number
  Standards and Warranty
EMC Standards:   FCC Part 15, CE, e-Mark, and C-Tick
Warranty:   Twelve 12 months limited parts and labor
  System Requirements
Operating System:   Windows 98SE/ME/2000/XP
System Requirements:   IBM Compatible 486 PC, or higher
CD-ROM:   2x Speed or higher
Interface:   USB V1.1 support, or higher
  GPS
GPS Receiver:   L1, 1575.42 MHz., C/A code, SPS (Standard Positioning Service)
Channels:   12-channel parallel automatic selection
Elevation Mask Angle:   7.5º
Frequency:   L1, 1575.42 MHz
  Antena
Internal Antenna Type:   Ceramic Patch (Internal Only)
External Antenna:   MCX (optional, available separately)
  Accuracy
Position:   5 meters CEP
Velocity:   0.1 meters/second
  Data Acquisition
Reacquisition:   0.1 sec. typical
Cold Start:   45 sec. typical, open sky, stationary
Warm Start:   38 sec. typical, open sky, stationary
Hot Start:   8 sec. typical, open sky, stationary
Snap Start:   3 sec. typical, open sky
  Dynamic Conditions
Altitude:   < 20,000 metres
Velocity:   < 515 meters/second
Acceleration:   4g, max.
  GPS Interface
Output Data Update rate:   Once every second

Features of Navman iCN 650 GPS Navigation System - AA005360:

  • Compact, mobile, and powerful Transferable In-Car Navigation device
  • Advanced Automotive, Daylight Viewable TFT display for unmatched map display and route guidance, even in a reflective, sunny environment
  • Ultra fast map panning and route calculation is made possible with the Intel® PXA255 Applications Processor with Intel® X-ScaleTM Technology
  • Light weight and high tensile Magnesium alloy case for a modern and elegant device and durable solution
  • 2" high output speaker for clear voice instructions while navigating in the vehicle
  • Fold away antenna sits down flush and gives multi-directional reception while in use
  • Easy installation with the adjustable windshield suction mounting bracket. Permanent dash mount base also included
  • Latest 12-channel GPS satellite receiver technology
  • MCX External Antenna socket for improved performance in difficult environments and permanent installations (optional, available separately)
  • Backlit keypad for night time operation
  • Vehicle power adapter powers the iCN 650 in the vehicle from the cigarette ligter socket
  • 110V mains power pack for use indoors while planning travel
  • USB cable, 3 feet, for map downloads and backing up user profile, favorite address, etc.
  • Nylon zip up protective case for the iCN 650 device to protect the unit when packed away
  • Anti-static screen cleaning cloth for the LCD screen care
  • Quick start guide for fast reference on how to use the iCN 650
  • Remote Control
  • Easy-to-use interface
  • Address-to-address navigation, including navigation to City or Town centers, Street name only, full street addresses, and five digit ZIP codes
  • Route planning with automatic Back-on-TrackTM re-routing after a detour
  • Route setup options including shortest time, shortest distance, avoid toll roads and avoid urban areas
  • Extensive and simple-to-use POIs. Search by name and category for hotels, gas stations, restaurants, ATMs and more
  • Concise voice and visual turn-by-turn instructions
  • Fully automatic operation when driving
  • Auto zooming via current driving speed
  • Expansion slot for Secure Digital (SD) or Multimedia (MMC) for additional map data storage

Package Contents:

  • iCN 650 Transferable in-car navigation device
  • SmartST™ four disc CD wallet with maps for United States and Canada
  • In-vehicle mounting kit for windshield or dash mount options
  • 12V DC vehicle power adapter
  • 110V mains power pack
  • USB cable for map downloads
  • Nylon zip up protective case for the iCN 635 device and screen cleaning cloth
  • Quick start guide
  • Remote Control
