Hi-Lux Optics Malcolm 6x17mm Rifle Scopes, 3/4in Tube, Short Telescopic

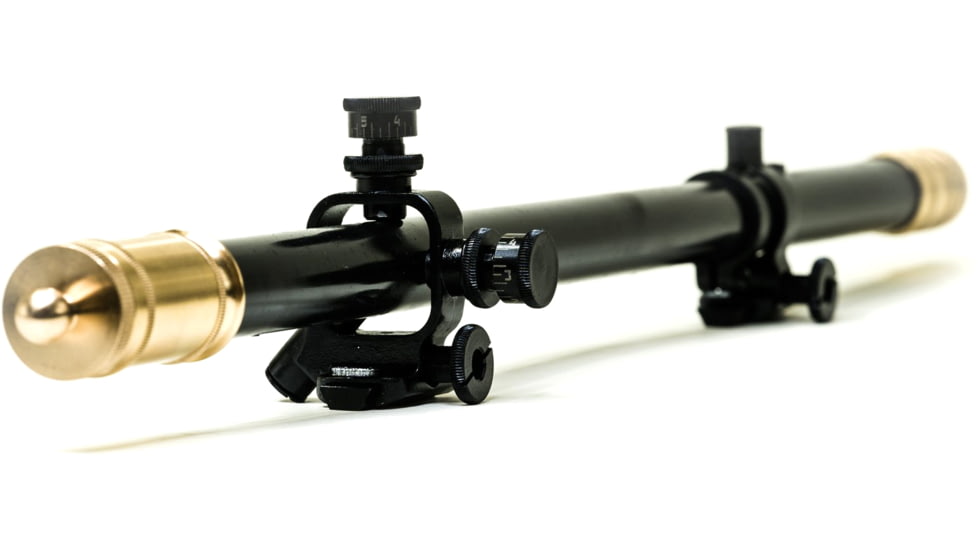

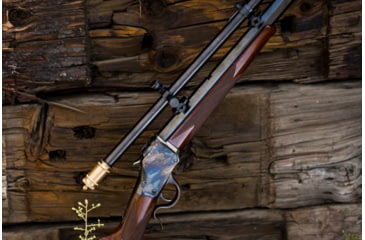

Image of Hi-Lux Malcolm 6x Short Telescopic Rifle Scope, 18in, 3/4 Tube, Fine Cross Reticle with Micrometer Mount and Bases, Matte, Two-Tone Black/Brass, M634181B

Hi-Lux Malcolm 6x Short Telescopic Rifle Scope, 18in, 3/4 Tube, Fine Cross Reticle with Micrometer Mount and Bases, Matte, Two-Tone Black/Brass, M634181B

Image of Hi-Lux Optics Malcolm 6x17mm Rifle Scopes, 3/4in Tube, Short Telescopic, Micrometer Mount, Front Ring, Fine Cross Reticle, Matte Black/Brass, M634181B

Hi-Lux Optics Malcolm 6x17mm Rifle Scopes, 3/4in Tube, Short Telescopic, Micrometer Mount, Front Ring, Fine Cross Reticle, Matte Black/Brass, M634181B

Hi-Lux Malcolm 6x Short Telescopic Rifle Scope, 18in, 3/4 Tube, Fine Cross Reticle with Micrometer Mount and Bases, Matte, Two-Tone Black/Brass, M634181B

Hi-Lux Optics Malcolm 6x17mm Rifle Scopes, 3/4in Tube, Short Telescopic, Micrometer Mount, Front Ring, Fine Cross Reticle, Matte Black/Brass, M634181B

1 of 7 images

Hi-Lux Malcolm 6x Short Telescopic Rifle Scope, 18in, 3/4 Tube, Fine Cross Reticle with Micrometer Mount and Bases, Matte, Two-Tone Black/Brass, M634181B

2 of 7 images

Hi-Lux Malcolm 6x Short Telescopic Rifle Scope, 18in, 3/4 Tube, Fine Cross Reticle with Micrometer Mount and Bases, Matte, Two-Tone Black/Brass, M634181B

3 of 7 images

Hi-Lux Malcolm 6x Short Telescopic Rifle Scope, 18in, 3/4 Tube, Fine Cross Reticle with Micrometer Mount and Bases, Matte, Two-Tone Black/Brass, M634181B

4 of 7 images

Hi-Lux Malcolm 6x Short Telescopic Rifle Scope, 18in, 3/4 Tube, Fine Cross Reticle with Micrometer Mount and Bases, Matte, Two-Tone Black/Brass, M634181B

5 of 7 images

Hi-Lux Malcolm 6x Short Telescopic Rifle Scope, 18in, 3/4 Tube, Fine Cross Reticle with Micrometer Mount and Bases, Matte, Two-Tone Black/Brass, M634181B

6 of 7 images

Hi-Lux Malcolm 6x Short Telescopic Rifle Scope, 18in, 3/4 Tube, Fine Cross Reticle with Micrometer Mount and Bases, Matte, Two-Tone Black/Brass, M634181B

7 of 7 images

Hi-Lux Optics Malcolm 6x17mm Rifle Scopes, 3/4in Tube, Short Telescopic, Micrometer Mount, Front Ring, Fine Cross Reticle, Matte Black/Brass, M634181B

Tap Tap to Zoom

Government Export Restriction

This item may be regulated for export by the U.S. Department of State or the U.S. Department of Commerce. Please see our Export Policy prior to placing your order.

Documents

You May Also Like

Blazin' Deal

TRYBE Optics DiMA1000 Laser Rangefinder with Mount, Black, TROLRF

(6)

List: ~~$764.99~~ $498.43 Save Up to 35%

Blazin' Deal

TRYBE Optics Enhancer Rifle Scope Magnification Quadrupler, 4x54mm, 30mm Tube, Black, ENHRS4X

(5)

List: ~~$799.99~~ $233.93 Save Up to 71%

Blazin' Deal

TRYBE Optics HIPO Rifle Scope, 4-16x44mm, 30 mm Tube, FFP, PLR-25 MOA Reticle, Black, TRORS4-16x44FFP-BL

(18)

List: ~~$409.99~~ $186.29 Save Up to 55%

Winchester Supreme Optics 1-4x24mm 30mm Tube IR Rifle Scope, Second Focal Plane, Illuminated Etched Reticle, Black, 1-4x24IR

(2)

List: ~~$264.99~~ $229.99 Save Up to 13%

Best Rated

TRYBE Optics HIPO Rifle Scope, 6-24x50mm, 30mm Tube, FFP, PLR-25 MOA Reticle, Black, TRORS6-24x50FFP-BL

(18)

List: ~~$449.99~~ $269.99 Save Up to 40%

Best Rated

TRYBE Optics HIPO Rifle Scope, 3-18x50mm, 30 mm Tube, FFP, PLR-25 MOA Reticle, Black, TRORS3-18x50FFP-BL

(19)

List: ~~$499.99~~ $349.99 Save Up to 30%

Questions & Answers

Are there mounts available for the heritage arms revolver rifle ? Manufacturer Answer

If your Heritage Arms Rough Rider has the 11mm dovetail rail and the 3/8" rear sight dovetail on the barrel, you'll be able to mount this scope using our rimfire rifle mounts. Here is the link to the mounts: https://www.opticsplanet.com/hi-lux-optics-rimfire-malcolm-rifle-scope-bases.html

by Hi-Lux Optics, Manufacturer, December 4, 2024

Will this scope work on a Henry .22 s/l/lr ? Manufacturer Answer

Yes, this will work on the Henry .22LR. If your Henry lever action rifle has an octagon barrel, you can use our Henry Golden Boy base to mount the scope without drilling and tapping.

If your rifle has a round barrel and the 11mm dovetail on top of the receiver, you can use our Malcolm rimfire rifle bases to mount the scope without any drilling and tapping.

by Hi-Lux Optics, Manufacturer, October 25, 2023

View All Q&A You Have a Question? Ask!

Customer Reviews

Helpful Positive Review

Turn heads at the range! by Old German, September 2, 2022

I could not be more satisfied with this Hi-Lux Optics Malcolm 6x17mm 3/4in Tube Short Telescopic Rifle Scope purchased for Optics Planet. I ordered it on 8/26/22, it arrived on 8/30/22 and was mounted and at the range on 8/31/22. Well done Optics Pl...
Read More...

2/2 found this helpful

Helpful Positive Review

Malcolm/Hi-Lux 6x scope by Luther, January 4, 2018

The price is right and the optics are good. You get more than what you pay for. Other reviews have been critical of the mounts. The mounts are duplicates of the type of mounts used from about 1900 to 1920. Are they suitable for those persons want...
Read More...

7/9 found this helpful

Helpful Positive Review

Not the one pictured by Neil, November 16, 2021

The scope I received is not the one pictured. It came with a round style rear mount not the more squared off one pictured. Hi-Lux said they were changing to the more square style to give more adjustment. It also shows a sliding front mount that can m...
Read More...

3/4 found this helpful

Helpful Positive Review

A true vintage style rifle scope. by LaRoy, February 1, 2019

This is a neat little scope for a vintage rifle. I am putting mine on a 1879 Steven’s .22lr, tip-up rifle that I am restoring. The optics are clear and bright, the windage and elevation adjustments are firm and positive. It is hard to find fault with...
Read More...

2/2 found this helpful

Helpful Positive Review

great scope by Calvin Murdock, Verified Owner, September 7, 2021

Great glass, great quality build. Only thing I wish I knew was that the adjustment knobs in the rings don’t click. Past that it’s a great setup. The scope it’s self is great and would highly recommend.

4/4 found this helpful

Helpful Positive Review

Leatherwood Malcolm 17' scope by Legacy Reviewer, April 23, 2008

Excellent sdope for the money. Well made, historically correct and durable. I am mounting it on a model 1885 low wall in 22 hornet.

13/19 found this helpful

Read All 16 Reviews

Reticle:: Fine Cross
Reticle Focal Plane:: Second Focal Plane (SFP)
Illumination Color:: None
Finish:: Matte/Brass
Color:: Black/Brass
Weight:: 18 oz
Adjustment Type:: MOA
Illumination Type:: Non-Illuminated
Condition:: New

Code: LW-RS-MRS-M634181B

MPN: M634181B

UPC: 810194021589

List: ~~$579.99~~Save 18%

$475.00

Expert Advice Request for Quote Price Match

Compare

Product Info for Hi-Lux Optics Malcolm 6x17mm Rifle Scopes, 3/4in Tube, Short Telescopic

Leatherwood Leatherwood/Hi-Lux Wm Malcolm Series Rifle Scopes offer authentic vintage styling with modern scope making technology. These Leather Wood Rifle Scopes have features that the original Rifle Scopes lacked. Leatherwood made this old design better by incorporating fully multi-coated lenses and a nitrogen-filled tube to prevent fogging. These scopes can be also be mounted on rifles with barrels ranging from 28 inches and less.

These Leatherwood Leatherwood/Hi-Lux Wm Malcolm Scopes are perfect if you have a smaller rifle and want the same great quality and performance as the Leatherwood Leatherwood/Hi-Lux Wm Malcolm Series Rifle Scope. This scope mount attains the original "old style" look, as well as allowing easier mounting / unmounting.

WARNING: California`s Proposition 65

Specifications for Hi-Lux Optics Malcolm 6x17mm Rifle Scopes, 3/4in Tube, Short Telescopic:

Manufacturer:	Hi-Lux Optics
Objective Lens Diameter:	17 mm
Magnification:	6 x

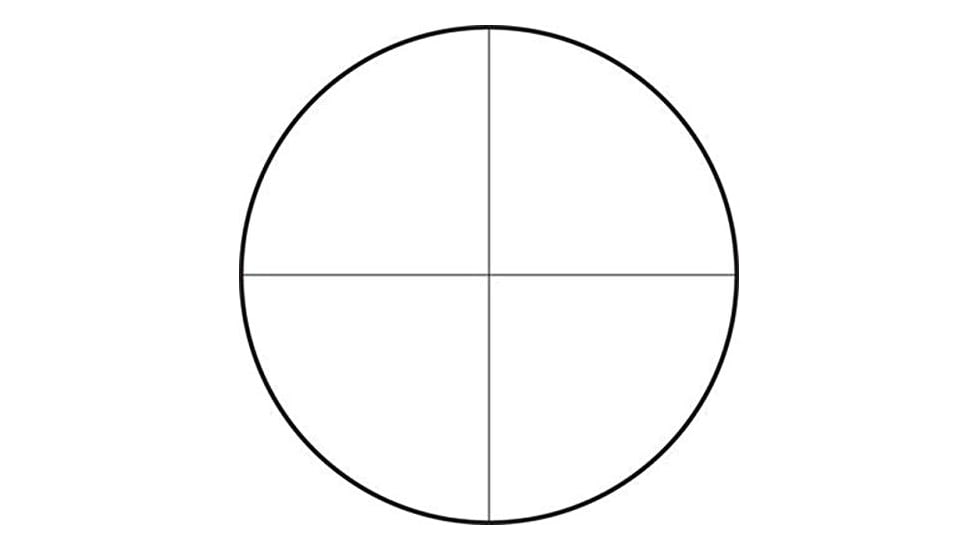

Reticle:	Fine Cross
Tube Diameter:	0.75 in
Reticle Focal Plane:	Second Focal Plane (SFP)
Exit Pupil:	5.8 mm
Illumination Color:	None
Finish:	Matte/Brass
Field of View, Linear:	12 ft at 100 yds
Eye Relief:	4 in
Diopter Adjustment Range:	-3 - 3 dpt
Color:	Black/Brass
Weight:	18 oz
Length:	18 in
Adjustment Type:	MOA
Parallax:	3.33 yds to infinity
Illumination Type:	Non-Illuminated
Width:	0.5 in
Fabric/Material:	Steel
Height:	0.5 in
Focus Range:	100 yds
Lens Material:	Glass
Optical Coating:	Fully Multi-Coated, Diamond Tuff14
Operating Temperature:	-20 - 60 Celsius
Weather Resistance:	Yes
Water Resistance Level:	IP64
Shockproof:	Yes
Fogproof:	Yes
Magnification Type:	Fixed
Condition:	New
Attachment Type:	Riflescope Ring

Features of Hi-Lux Optics Malcolm 6x17mm Rifle Scopes, 3/4in Tube, Short Telescopic

18" Long

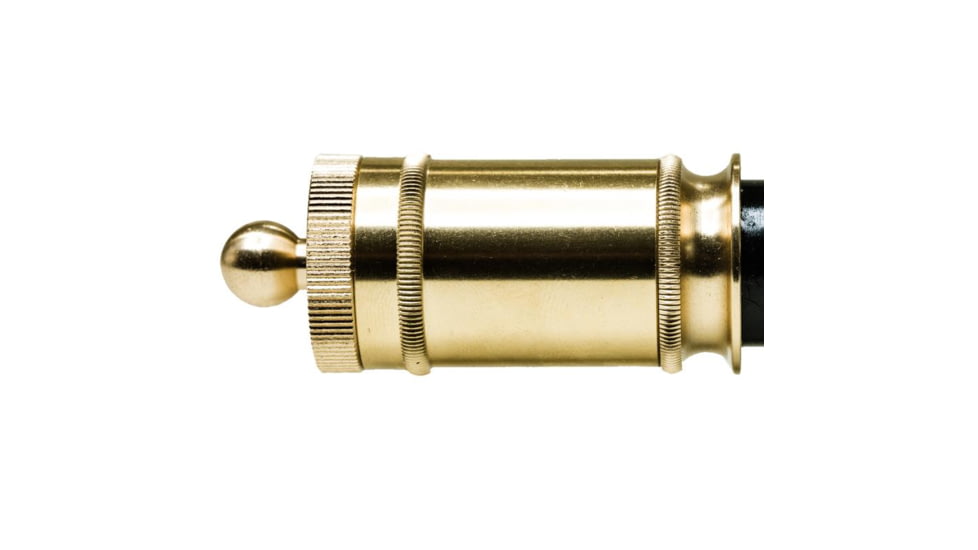

Brass Eyepiece and Objective Lens Housing
Mounts and Bases included

Package Contents:

Hi-Lux Optics Malcolm 6x17mm Rifle Scopes, 3/4in Tube, Short Telescopic

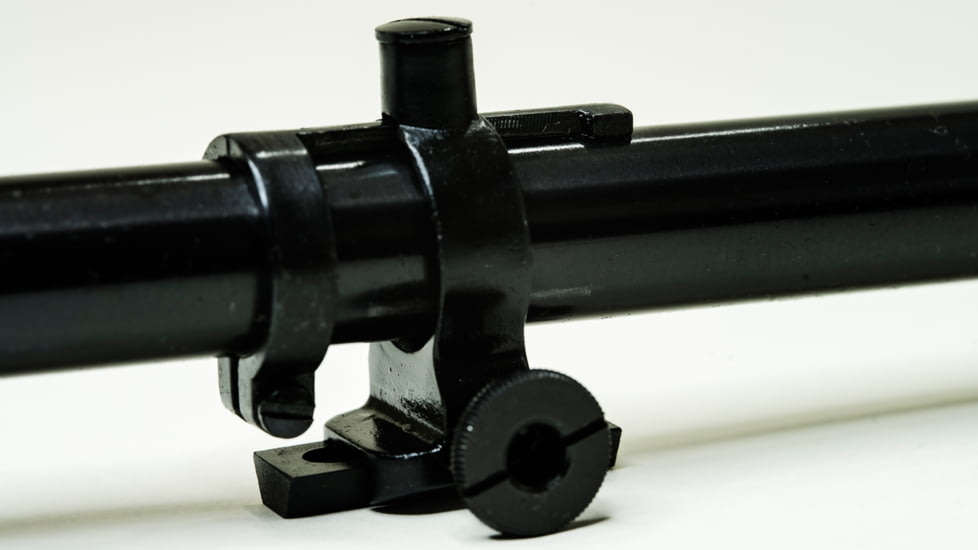

Micrometer Rear Mount
Front Ring
Sliding Ring
Brass Lens Covers
