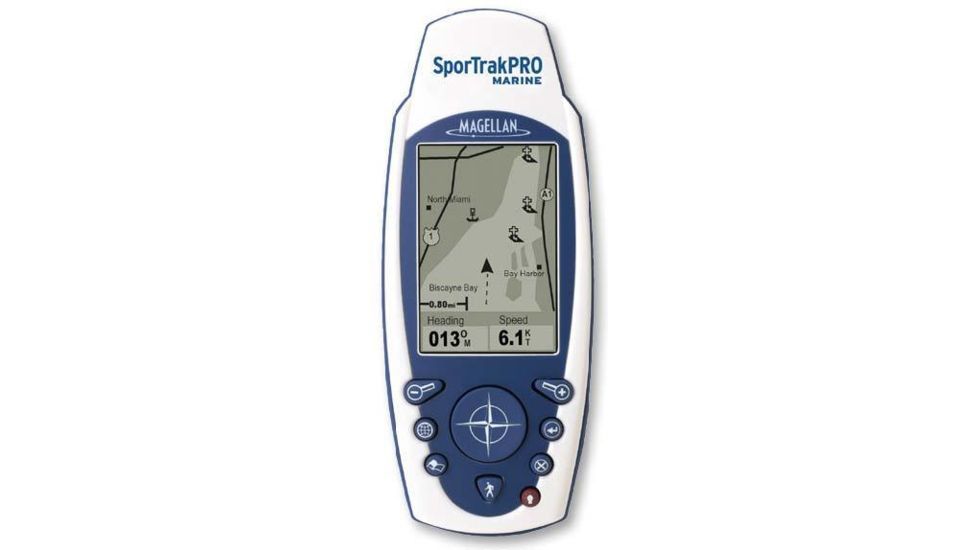

Magellan Portable GPS Receiver SporTrak Pro Marine - 980616-24

The indispensable navigation device for mariners, Magellan Portable GPS Receiver SporTrak Pro Marine - 980616-24 features an extensive 15 MB, built-in mapping database, including waterways, lights, buoys/beacons, fog signals, radar/radio, roads, parks, airports, political boundaries, interstate highways, major inland waterways, state highways and major roads, and city centers. An additional 17 MB of free memory enables you to expand your mapping capabilities with optional detailed maps from the entire line of Magellan MapSend® software products including BlueNavTM which offers detailed coastal marine charts. Magellan Portable GPS Receiver SporTrak Pro Marine - offers superior tracking and 3-meter accuracy, with nine customizable screens that provide an easy way to view your location, heading and route on a large, high contrast 160 x 104 pixel display. Built tough, Magellan Portable GPS Receiver SporTrak Pro Marine - 980616-24 is waterproof and rugged enough to go with you on any boating adventure, or just across town, designed to make getting where you're going a fun, easy and safe trip.

Specifications:

Base Map:		15 MB built-in North American or European basemap -Includes cities, highways, waterways, parks, airports, buoys/beacons, lights, fog signals and radar/radio
Coverage:		North America or Europe
Number of Screens:		9
Screens-Types:		User configurable (Map, Compass, Large Data, Position, Road, Speedometer, Strip Compass)
Position Update Rate (per second):		1
Time to First Fix: Cold:		<2 Minutes
Time to First Fix: Warm:		<1 Minute or 60 seconds
Time to First Fix: Hot:		<15 Seconds
Maximum Velocity (mph/km/h):		951(mph)/1530.5(km/h)
Unit Height (inches/cm):		5.6in/14.2cm
Unit Width (inches/cm):		2.2in/5.6cm
Unit Depth (inches/cm):		1.2in/2.9cm
Weight (oz/gm):		6.1oz/172.9gr
Display Height (in/cm):		2.2in/5.6cm
Display Width (in/cm):		1.4in/3.6cm
Display Resolution:		160x104
Display Resolution Color:		Grayscale
Antenna:		Quadrifilar helix
Backlit Display:		Yes
Backlit Keypad:		Yes
Construction:		Rubber Armored Impact Resistant Plastic
Horizontal Accuracy (feet):		<7
Horizontal Accuracy (meters):		<7
Horizontal Accuracy (%RMS):		95% 2D RMS
Horizontal Accuracy -RMS w/ WAAS or EGNOS (meters):		<3
Horizontal Accuracy (%RMS/WAAS or EGNOS ):		95% 2D RMS w/WAAS
Vertical Accuracy (meters RMS):		10
Velocity (knots RMS):		0.1
Plotter Range Minimum (mi/km):		.01mi/0.035km
Plotter Range Maximum (mi/km):		1,700mi/2,700km
Battery Type:		AA
Battery Quantity:		2
Battery Life (hours):		14
Receiver (parallel channels WAAS/EGNOS enabled):		12
Receiver WAAS/EGNOS Enabled:		Yes
Uploadable Memory Form Factor:		Built-in
Uploadable Memory Limit (megabytes):		17
User Data Backup:		Indefinite - Stored in non-volatile Flash Memory
Waterproof (IEC-529 IPX7 Standard):		Yes
Buoyancy:		Floats
Emissions Certification - Immunity (EN 55022 Class B):		Yes
Emissions Certification - Susceptibility (EN 50082-1):		Yes
Operating Temp Min (F/C):		14F/-10C
Operating Temp Max (F/C):		140F/60C
Operating Altitude Max (ft/m):		60,000ft/18,288m
Waypoints:		500
Routes:		20
Trackpoints:		2000
Grids:		Lat/Lon, UTM, OSGB, MGRS, Swiss, Irish, Finnish, German, Swedish, French, USNG, User Grid
Datums:		75
User-defined Datums:		1
Data Input:		Yes
Data Input (RTC M104 Standard):		Yes
Data Output (NMEA 0183 V1.5 Standard):		Yes
Data Output (NMEA 0183 V2.1 Standard):		Yes
DGPS Ready:		Yes
Languages:		English, French, German, Swedish, Finnish, Spanish, Italian, Portuguese, Dutch
Package Contents:		PC Cable, User Manual (English & French) or User Manual on CD-ROM (9 Languages), 2 AA Batteries, Wrist Strap

Features:

• Magellan Portable GPS Receiver SporTrak Pro Marine - 980616-24
• Accurate - SporTrak Pro Marine finds your location by tracking up to 12 GPS satellites simultaneously. Assisted by the U.S. Wide Area Augmentation System (WAAS), the SporTrak Pro Marine is accurate to within 3 meters or better.
• Easy to use - The intuitive interface and large keyboard provides direct access to key features, putting the power of GPS at your fingertips.
• Built-in mapping of North America and expandability - Start navigating right away with an extensive, 15 MB, built-in mapping database of North America, including highways, major roads, parks, waterways, airports, cities and marine navigation aids, such as buoys, beacons, lighthouses and more. Easily expand your SporTrak Pro Marine's capability with 17 MB of additional free memory, by downloading detailed marine navigation information using Magellan MapSend BlueNavTM software products.
• Full Featured Navigation - Nine customizable graphic navigation screens show a map, compass, speedometer, and text readouts of heading, bearing, speed, direction, ETA, and more. Choose from 12 built-in coordinate systems and 76 datums including Latitude/Longitude, Universal Transverse Mercator, and Military Grid Reference System.
• Store routes and track-points - Store up to 20 routes, 500 waypoints and 2,000 track-points to easily find your way back again.
• Save Track-to-Route - The unique, Save Track-to-Route feature allows you to convert complicated track files into easy to follow routes. Save hundreds of routes by transferring them to a PC using optional Magellan MapSend software.
• NorthFinder - NorthFinderTM technology shows your direction even when standing still.
• Tides - Built-in information for major tide stations enables you to confidently navigate from port to port without having to guess about the conditions ahead. Additional detailed information is available with optional MapSend BlueNavTM software.
• Sun/Moon positions - SporTrak Pro Marine shows you when the sun will rise and set, as well as the phase of the moon, for any date and location in the world.
• Currents - With optional MapSend BlueNavTM software, SporTrak Pro Marine provides detailed information on currents in the waters you are traveling, making your marine adventure safer and more enjoyable.
• Fish and game calculator - Want to know when the fish are likely to be biting in your little corner of the world? The Magellan SporTrak Pro Marine can tell you.
• Satellite status - Monitor the GPS satellites in view and get information about their status.
• Built to perform on the most challenging and rigorous adventure.
• Large backlit high contrast display - Easily view all the GPS information you need to make your adventure fun and safe, even at night.
• Compact and lightweight - At a mere 6.1 oz, the attractive SporTrak Pro Marine is compact and lightweight enough to slip into your pocket and go with you no matter where your adventure takes you.
• Advanced power management - 2 AA batteries provide up to 14 hours of continuous use.
• Rugged construction - Rubber armored, impact resistant plastic allows you to confidently take SporTrak Pro Marine on that next great adventure.
• Waterproof - SporTrak Pro Marine is sealed to IEC-529 IPX7 specifications - and it floats!
• Built-in help database - The SporTrak Pro Marine is intuitive, easy to use, and all the major functions are described in step-by-step instructions.
• Multiple language support - If you speak English, French, German, Swedish, Finnish, Spanish, Italian, Portuguese or Dutch, so does the Magellan SporTrak Pro Marine.
• 1-year warranty - We pride ourselves on building rugged and reliable navigation products that you can depend on, backed by a full one-year warranty.
