Product Discontinued by Manufacturer
SightMark Core TX 4x32DCR Rifle Scope has been discontinued by SightMark and is no longer available. Our product experts have helped us select these available replacements below.You can also explore other items in the Rifle Scopes & Accessories, Rifle Scopes, Fixed Power Rifle Scopes yourself to try and find the perfect replacement for you!

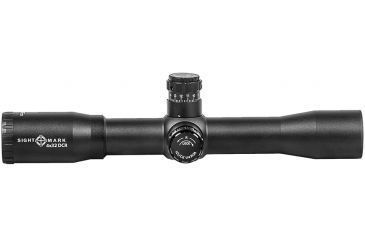

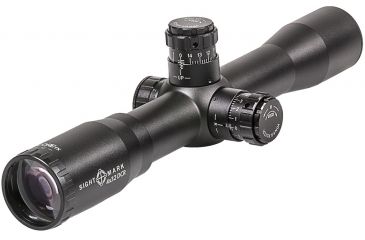

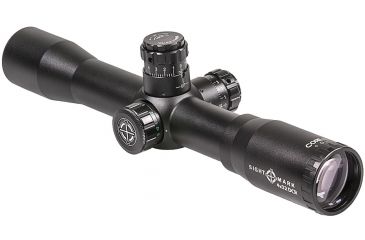

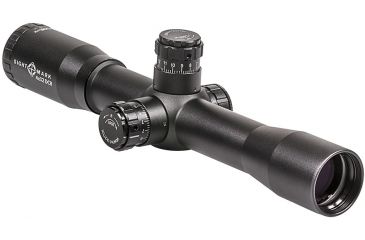

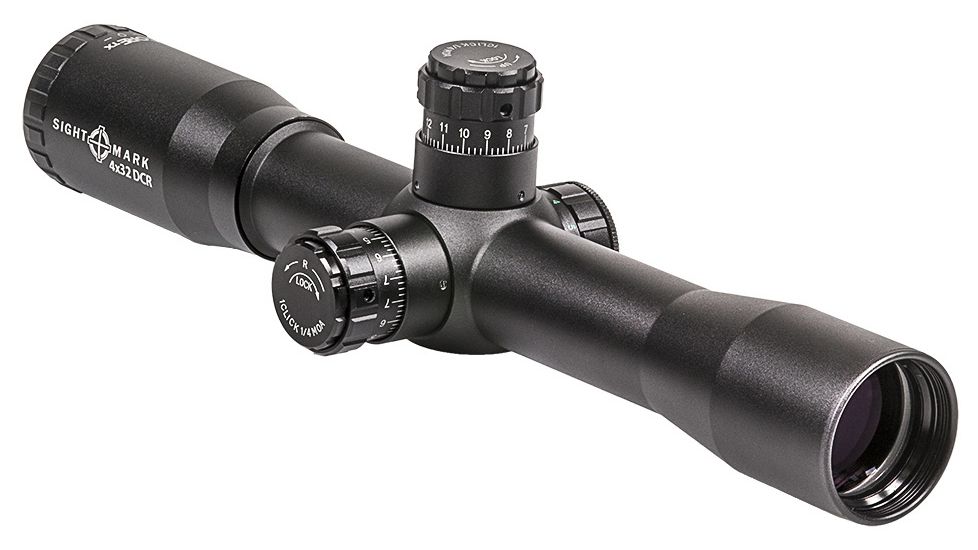

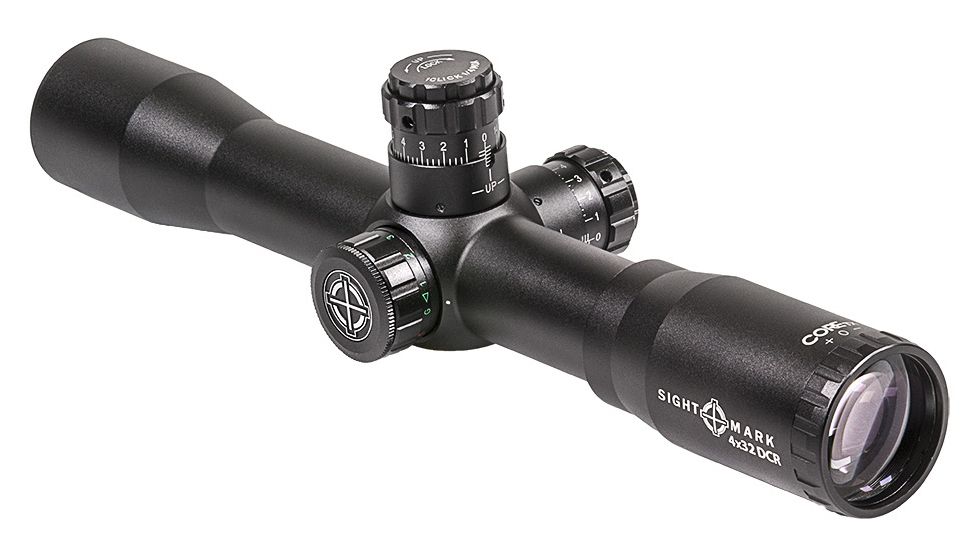

Product Info for SightMark Core TX 4x32DCR Rifle Scope

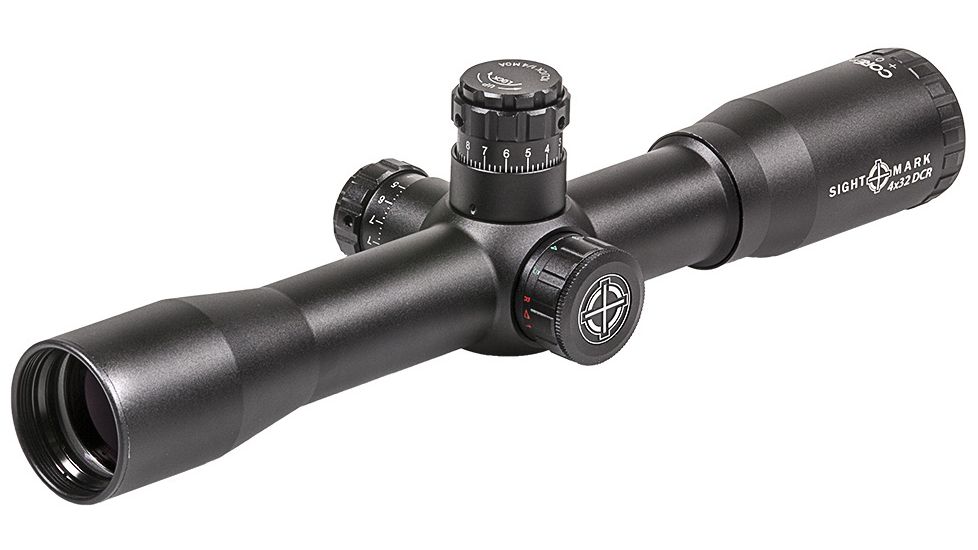

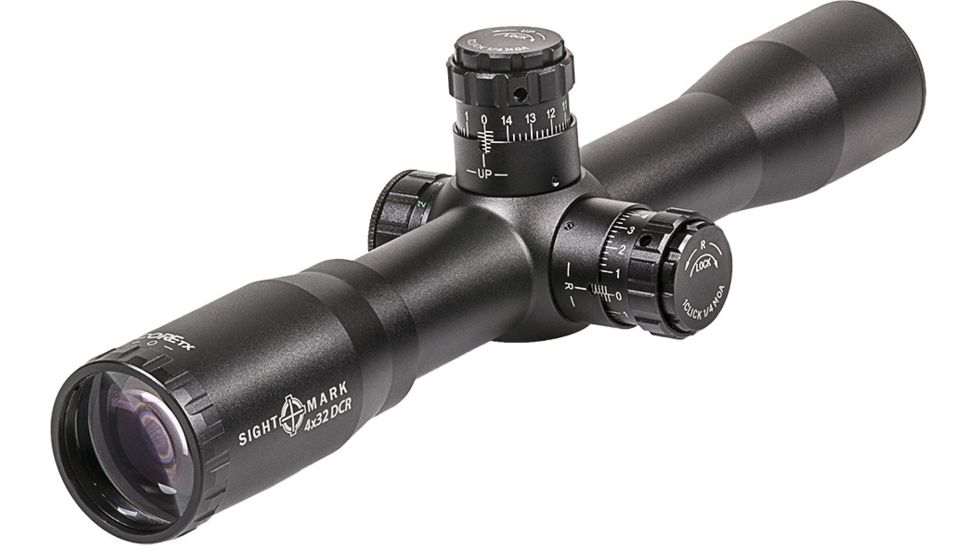

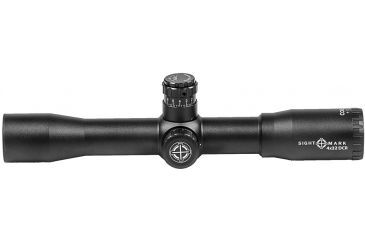

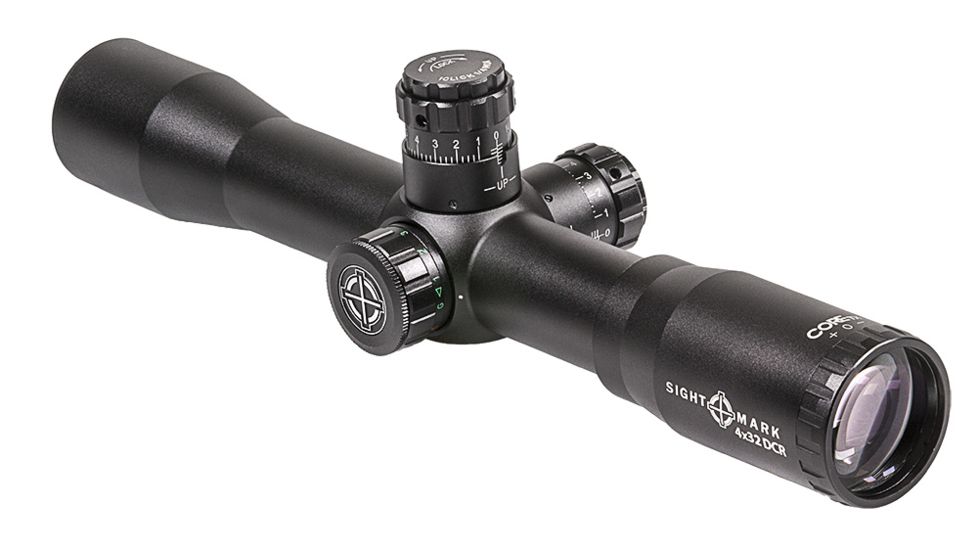

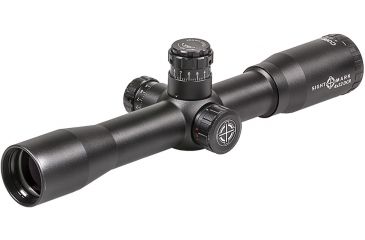

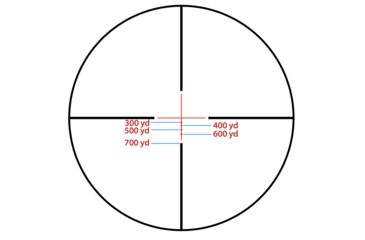

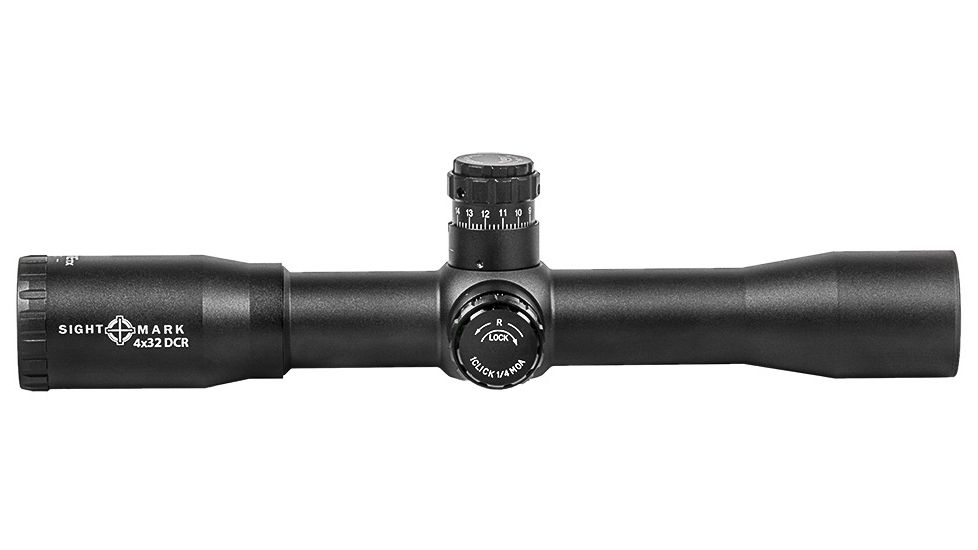

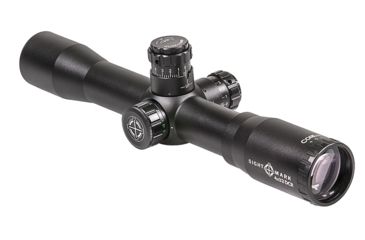

Sightmark Core TX Rifle Scopes use fully multi-coated optics to provide optimal light transmission in a variety of conditions. Etched glass reticles, in red or green, are illuminated to deliver optimal shot placement and are durable to withstand years of shooting. The Core TX Rifle Scopes feature exposed, lockable turrets which help maintain a consistent zero. Turrets are quick and easy to adjust to compensate for bullet drop and windage on the fly. The Core TX 4x32DCR is housed in a durable 30mm tube, built from aircraft grade aluminum. This scope features a duplex BDC reticle and is calibrated for .223 and .308 ammo.![]()
Specifications for SightMark Core TX 4x32DCR Rifle Scopes:
| Reticle Type: | DCR- Dual Caliber Reticle |
| Reticle: | Etched Glass |
| Illuminated Reticle: | Yes |
| Reticle Color: | Red and Green |
| Reticle Brightness Setting: | 0-5 |
| Finish/Color: | Matte Black |
| Magnification: | 4X |
| Objective Lens Diameter: | 32 mm |
| Eyepiece Diameter: | 1.65in.(42mm) |
| Exit Pupil Diameter: | 8mm |
| Eye Relief: | 4in. (101.6mm) |
| Field of View: | 8.4 m@100m |
| Diopter Adjustment: | +2 to -2 + / - |
| Tube Diameter: | 30mm (1.18in.) |
| Parallax Setting: | 100 yards |
| MOA Adjustment: | 1/4 MOA |
| Windage Range of Adjustment: | 80 MOA |
| Elevation Range of Adjustment: | 80 MOA |
| Maximum Recoil: | 1,200 Gs |
| Battery Type: | CR2032 |
| Battery Life: | 100-70 hours |
| Nitrogen Purged: | Yes |
| Shockproof: | Yes |
| Fog Proof: | Yes |
| Focal Plane: | 2nd |
| IP Rating (waterproof): | IP67-waterproof and dustproof |
| Body Material: | Aluminum |
| Lens material: | Glass |
| Lens Coating: | Fully multi-coated |
| Operating Temperature: | 0 to 120F (-17 to 49C) |
| Dimensions: | 11.26x3.2x2.5 inches (286x81x63mm) |
| Weight: | 18 ounces |
Features of SightMark Core TX 4x32DCR Rifle Scopes:
- BDC reticle calibrated for .223 and .308 ammo
- Exposed, lockable turrets
- Red/green illuminated reticle
- Single-piece, 30mm tube
- Aircraft grade aluminum
- Hard anodized finish
- Shockproof, fogproof, waterproof
- Fully multi-coated optics
- Covered by the Sightmark Limited Lifetime Warranty

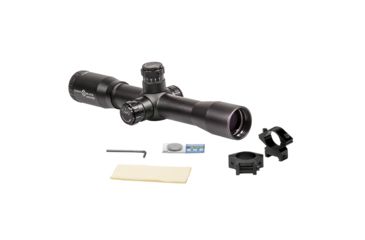

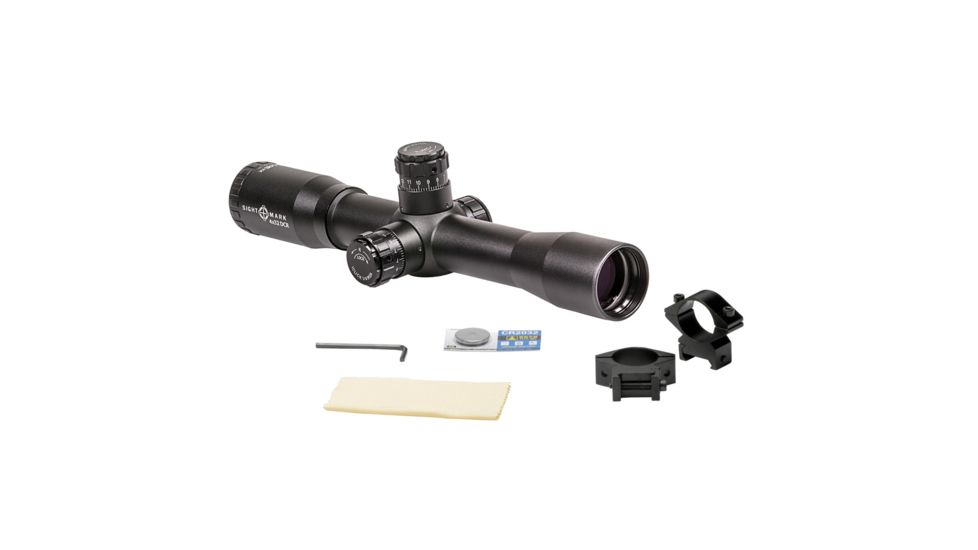

Package Contents:
- SightMark Core TX 4x32DCR Rifle Scopes
- Flip up lens covers
- 30mm scope rings
- CR2032 battery
Related Products to SightMark Core TX 4x32DCR Rifle Scope
SightMark Core TX 4x32DCR Rifle Scope Unavailable & Discontinued Models
List of Unorderable Models
- SightMark Core TX 4x32DCR .223/.308 BDC Dual Caliber Rifle Scope SM13071DCR , MPN: SM13071DCR , UPC: 812495020865 , Code: XK-RS-SM13071DCR
