Questions & Answers
Will this work with a Bergara B14 HMR, I know its a 700 action, just wondering if it would be compatible. Featured Answer

Bergara states in the B14 manual that trigger pull should not be set below 2.8 lbs. because of the heavy firing pin and accompanying spring, trigger adjustment for the TriggerTech Diamond is 4 oz - 32 oz (32 oz. = 2 lbs.); so the answer would be NO, it is below 2.8 lbs. However the TriggerTech Special's rate of adjustment is 1.0lbs-3.5lbs and it would be good to go as long as you keep it at 2.8 lbs. or above.

by ColoradoRancher, Verified Owner, June 26, 2019
let's be real The diamond vs geissele super 700 witch is better n why

Triggertech is a better trigger in my opinion, but everyone has an opinion and those are worthless. If it helps make up your mind, the triggertech diamond is the standard in the long range prs game where I have yet to see a geissele appear.

by Clayton, Verified Owner, November 26, 2021
Customer Reviews
Helpful Positive Review One sweet triggrr by Miggy, August 23, 2021
Trigger is phenomenal, installed in my brand new Bergara B14 .22 rifle and shot 1/4 to 1/2” groups at 50 yards. That was with the first 50-60 shots out of a brand new rifle. Installation was a snap and pull weight adjustment is via hex key without re...
Read More...
2/2 found this helpful
Helpful Positive Review Do not use in a Rem 700 by AA, Verified Owner, December 10, 2023
According to TriggerTech: Due to a wide variance in Remington action timing, we do not consider our Diamond trigger compatible with factory Rem700s which is why it is not offered with a bolt release. What typically happens with an incorrectly timed ...
Read More...
4/4 found this helpful
Helpful Positive Review Best Trigger built. by Squirts, December 23, 2023
This is the best trigger I’ve felt. So crisp and literally zero over travel. Mine came at 13.7 to 13.9 oz pull weight over 15 pulls with my digital Lyman. Easy to install in my new Remington Varmint 223 26” barrel dropped in a MDT Oryx chassis. Wit...
Read More...
1/1 found this helpful
Helpful Positive Review Best trigger out right now by Stevo, August 11, 2018
I’ve used or tried just about everything out there. This trigger is the best on the market for PRS. Light. Zero creep. Crisp repeatable break. Self contained design keeps out dust that would jam up a jewel.
4/4 found this helpful
Helpful Positive Review Top tier trigger by Mike, September 25, 2019
I have been waiting to purchase this trigger for quite some time hoping it would go on sale. It was 20% off during the labor day weekend so I jump on it. The quality is top notch and the weight adjustments are easy to reach from the bottom. Perfect f...
Read More...
4/5 found this helpful
Helpful Positive Review Rifle instructor by Guy, November 27, 2018
The trigger tech is the best out there And optics planet always has them in stock at fair prices and there customer service is second to none. The trigger tech manufacturing process is better in design and material they use , I haven’t had any of t...
Read More...
1/1 found this helpful
Read All 56 Reviews

Free Express Shipping!

Free Two Day Shipping
Select Two-Day Shipping and use coupon code 2DAYAIRClick to Copy Coupon Code during checkout to get a free shipping upgrade if eligible!
Show In Stock Only
6 Models Available

Show with deals only:

Free 2 Day Shipping
Trigger Shape
All
Hand
All
Search

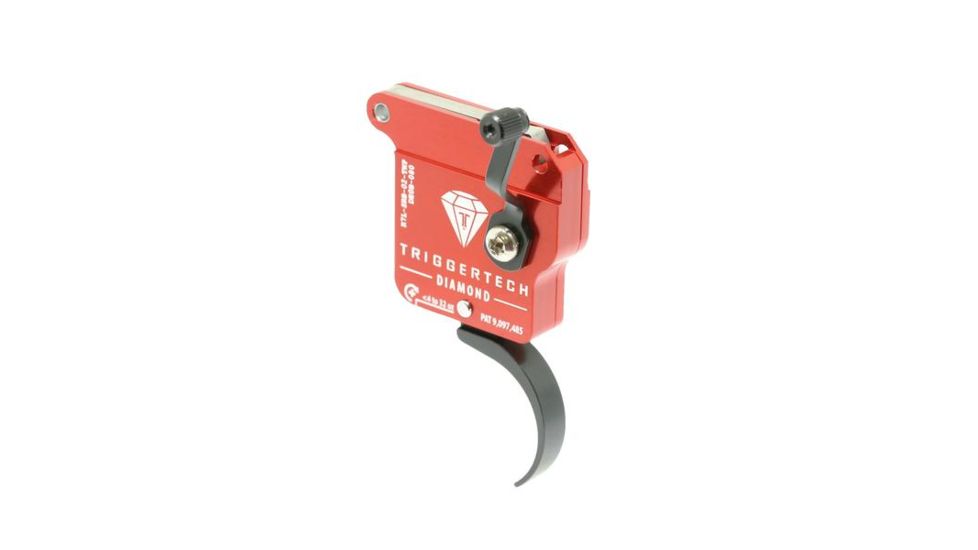

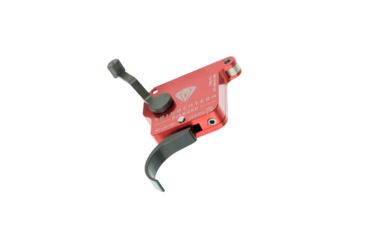

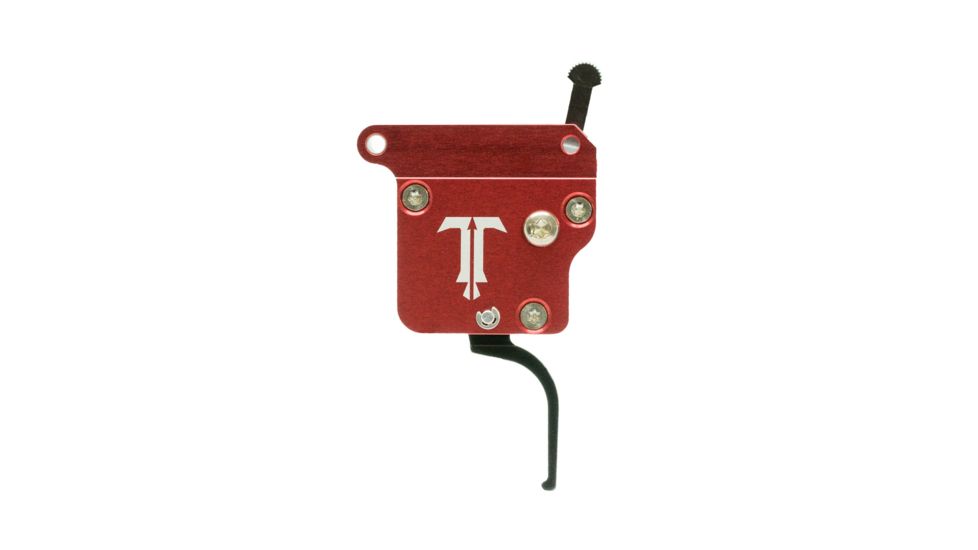

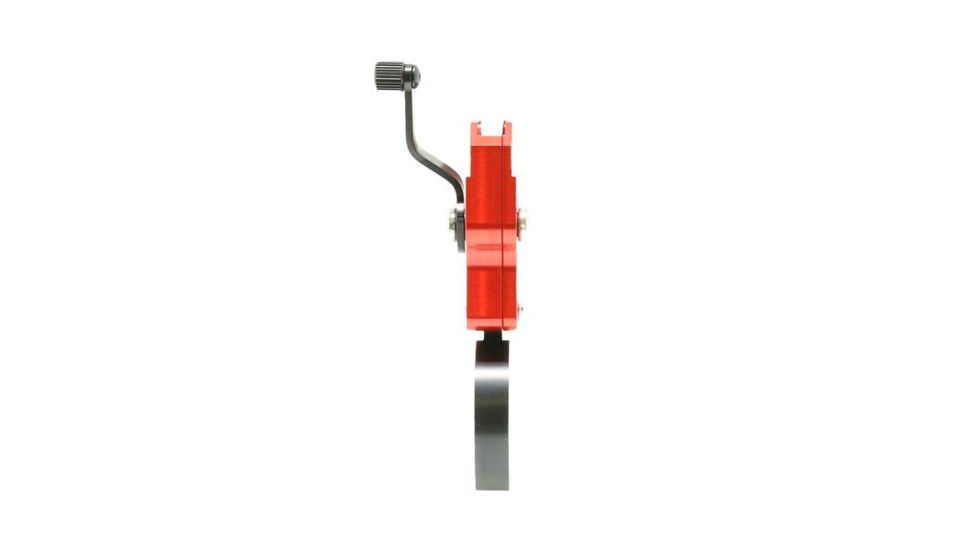

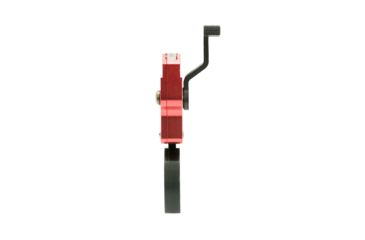

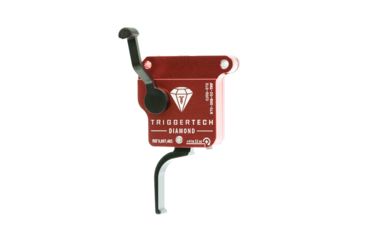

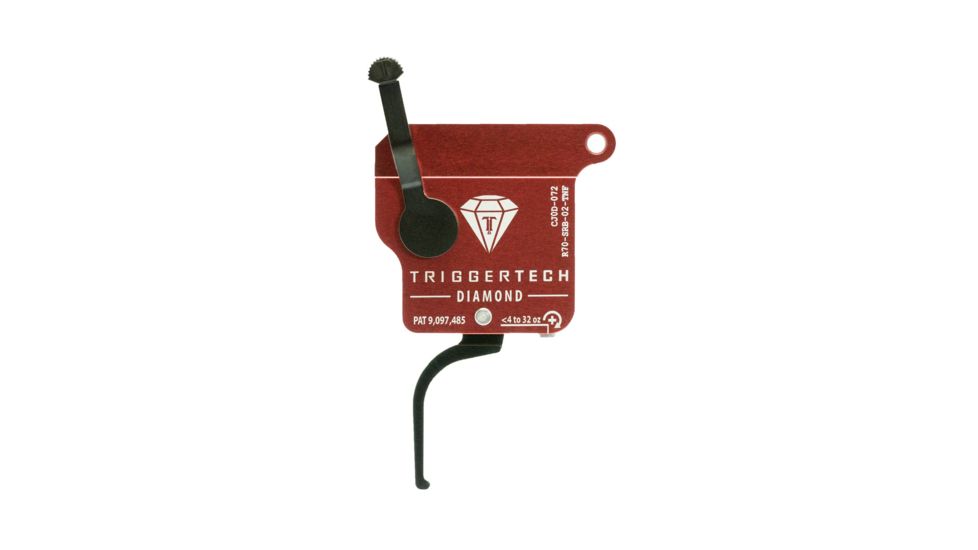

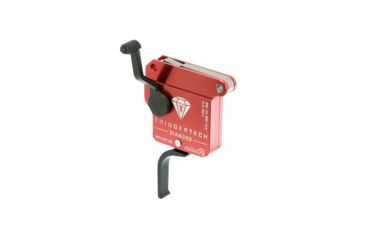

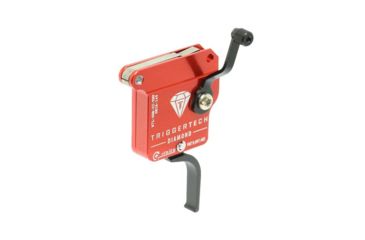

Product Info for Triggertech Remington 700 Diamond Trigger

The first TriggerTech Remington 700 Diamond Trigger was shown at the 2017 NRA Show. Since then Triggertech has worked with the K&M Shooting Team and several leading R700 Clone action manufacturers the refine these Rifle Triggers. The TriggerTech Rem 700 Diamond trigger is truly zero creep and is the most consistent and crisp breaking trigger you will ever use. The diamond will make you aware of the creep that exists in other triggers. It features new variable rate adjustment technology that enables quick and confident adjustment from 0.25-2lbs. with TriggerTech's patented CLKR Technology. The adjustment feature utilizes externally accessible set screw and the adjustment range begins at approx. 0.125 lb./click from less than 0.25lbs to 0.5625lbs. and the changes to approx. 0.0625lb. click from approx. 0.25lbs to 2lbs.image

Due to the exceptionally crisp break, most shooters report the pull weights feeling significantly lighter than a friction based trigger of the same measured weight. Five of the critical Diamond components are assembled as matched set to enable a true zero-creep break, extremely short overtravel and offers outstanding reliability, even in the harshest environments. Frictionless Release Technology, along with hardened 440C stainless steel internal components ensure corrosion resistance and an extended service life. As Frictionless Release Technology does not rely on coating, polishing or lubricating the key engagement surfaces, trigger pulls will be more consistent from shot to shot and after thousands of shots than you ever thought possible. Get the TriggerTech R700 Diamond Trigger to dominate at the range or on the hunting grounds.

All pull weights and measurements are approximate. Pull weights of TriggerTech Triggers are directly impacted by firing pin spring weight. Overweight firing pin springs may cause pulls weights to vary above the advertised range.

Specifications for Triggertech Remington 700 Diamond Trigger:

Manufacturer: Triggertech
Color: Black
Finish: PVD
Fabric/Material: 440C Stainless Steel, 7075-T6 Aluminum
Trigger Pull Weight: 0.25 - 2 lb
Trigger Pin Size: Standard
Gun Make: Remington
Gun Model: Remington Model 700
Gun Type: Rifle
Condition: New

Features of Triggertech Remington 700 Diamond Trigger:

  • Weapon Platform: Remington 700 Clone Actions
  • Trigger Action: Single Stage
  • FRT: Yes
  • TKR Technology: Yes
  • CLKR Technology: Yes
  • Overtravel: Sub .010in
  • Pull Weight: Sub 0.25lbs. - 2lbs.
  • Bolt Release: Without
  • Safety: With (removable)
  • Warranty: Product lifetime

Package Contents:

  • Triggertech Remington 700 Diamond Trigger
  • Installation Tools
  • Instructions Book
  • TriggerTech Patch

Triggertech Remington 700 Diamond Trigger Orderable Models

List of Orderable Models

Triggertech Rem 700 Black Diamond Curved Clean Trigger, PVD Black, R70-SRB-02-TNC , MPN: R70-SRB-02-TNC , UPC: 885768000703 , Code: 554-RTN-TR700DTB-R70-SRB-02-TNC
Triggertech Rem 700 Black Diamond Pro Clean Trigger, PVD Black, R70-SRB-02-TNP , MPN: R70-SRB-02-TNP , UPC: 885768000727 , Code: 554-RTN-TR700DTB-R70-SRB-02-TNP
Triggertech Rem 700 Left Black Diamond Flat Clean Trigger, PVD Black, R7L-SRB-02-TNF , MPN: R7L-SRB-02-TNF , UPC: 885768000772 , Code: 554-RTN-TR700DTB-R7L-SRB-02-TNF
Triggertech Rem 700 Black Diamond Flat Clean Trigger, PVD Black, R70-SRB-02-TNF , MPN: R70-SRB-02-TNF , UPC: 885768000710 , Code: 554-RTN-TR700DTB-R70-SRB-02-TNF
Triggertech Rem 700 Left Black Diamond Curved Clean Trigger, PVD Black, R7L-SRB-02-TNC , MPN: R7L-SRB-02-TNC , UPC: 885768000765 , Code: 554-RTN-TR700DTB-R7L-SRB-02-TNC
Triggertech Rem 700 Left Black Diamond Pro Clean Trigger, PVD Black, R7L-SRB-02-TNP , MPN: R7L-SRB-02-TNP , UPC: 885768000789 , Code: 554-RTN-TR700DTB-R7L-SRB-02-TNP

Triggertech Remington 700 Diamond Trigger Unavailable & Discontinued Models

List of Unorderable Models

USED Triggertech Rem 700 Black Diamond Curved Clean Trigger, PVD Black, R70-SRB-02-TNC, EDEMO3, Used, Condition Good , MPN: R70-SRB-02-TNC-EDEMO3 , Code: 554-RTN-TR700DTB-R70-SRB-02-TNC-EDEMO3
USED Triggertech Rem 700 Black Diamond Curved Clean Trigger, PVD Black, R70-SRB-02-TNC, EDEMO4, Used, Condition Fair , MPN: R70-SRB-02-TNC-EDEMO4 , Code: 554-RTN-TR700DTB-R70-SRB-02-TNC-EDEMO4
USED Triggertech Rem 700 Black Diamond Pro Clean Trigger, PVD Black, R70-SRB-02-TNP, EDEMO1, Used, Condition Good , MPN: R70-SRB-02-TNP-EDEMO1 , Code: 554-RTN-TR700DTB-R70-SRB-02-TNP-EDEMO1
USED Triggertech Rem 700 Black Diamond Curved Clean Trigger, PVD Black, R70-SRB-02-TNC, EDEMO5, Used, Condition Like New, Inspect and Rebox , MPN: R70-SRB-02-TNC-EDEMO5 , Code: 554-RTN-TR700DTB-R70-SRB-02-TNC-EDEMO-RE-A
DEMO, Triggertech Rem 700 Black Diamond Pro Clean Trigger, PVD Black, R70-SRB-02-TNP , MPN: R70-SRB-02-TNP-DEMO , Code: 554-RTN-TR700DTB-R70-SRB-02-TNP-DEMO
USED Triggertech Rem 700 Black Diamond Pro Clean Trigger, PVD Black, R70-SRB-02-TNP, EDEMO2, Used, Condition Like New , MPN: R70-SRB-02-TNP-EDEMO2 , Code: 554-RTN-TR700DTB-R70-SRB-02-TNP-EDEMO2
USED Triggertech Rem 700 Black Diamond Flat Clean Trigger, PVD Black, R70-SRB-02-TNF, EDEMO2, Used, Condition Like New , MPN: R70-SRB-02-TNF-EDEMO2 , Code: 554-RTN-TR700DTB-R70-SRB-02-TNF-EDEMO2
DEMO, Triggertech Rem 700 Black Diamond Flat Clean Trigger, PVD Black, R70-SRB-02-TNF , MPN: R70-SRB-02-TNF-DEMO , Code: 554-RTN-TR700DTB-R70-SRB-02-TNF-DEMO
