- Objective Lens Diameter:
- 24 mm
- Magnification:
- 6 x
- Reticle:
- Dead-Hold BDC
- Tube Diameter:
- 30 mm
- Reticle Focal Plane:
- Second Focal Plane (SFP)
- Finish:
- Anodized
- Field of View, Linear:
- 20.5 - 115.2 ft at 100 yds
- Eye Relief:
- 4 in
- Color:
- Black
- Weight:
- 25.2 oz
- Adjustment Click Value:
- 0.5 MOA
- Length:
- 10.1 in
- Adjustment Type:
- MOA
- Parallax:
- 100 yds
- Illumination Type:
- Non-Illuminated
- Battery Type:
- CR2032
- Fabric/Material:
- Aluminum
- Adjustment Range:
- 150 MOA
- Height:
- 1.29 in
- Lens Material:
- Glass
- Optical Coating:
- XR Plus Fully Multi-Coated
- Weather Resistance:
- Fog Resistant, Shock Resistant
- Water Resistance Level:
- Waterproof
- Shockproof:
- Yes
- Fogproof:
- Yes
- Package Type:
- Box
- Magnification Type:
- Fixed
- Condition:
- Factory DEMO
- W/E Travel at 100 Yds:
- 150 MOA
Code: VX-RS-RZR-16003-DEMO
MPN: 16003-DEMO

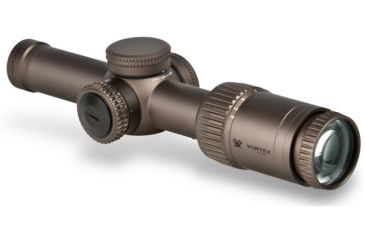

Product Info for Vortex Razor HD Gen II 1-6x24 Rifle Scope w/JM-1 BDC Reticle
Well thought out and executed, the Vortex Razor HD Generation II 1-6x24mm Rifle Scope w/JM-1 BDC Reticle is perfect for the AR platform. These ultra sleek Fixed Power Rifle Scopes engineered by the experts at Vortex Optics provide an ideal optic for short to medium-range tactical applications that require excellent performance. Generous eye relief on the Vortex Razor HD Gen II 1-6x24mm Waterproof Rifle Scope allows both-eyes-open use to maintain situational awareness and allow swift target acquisition. Customize your platform with the low-profile Vortex Razor HD Gen II 1-6x24mm Fogproof Rifle Scope.![]()
Features of Vortex Razor HD Gen II 1-6x24mm Tactical Rifle Scope:
- APO System - Apochromatic objective lens system uses index-matched lenses to correct color across the entire visual spectrum
- Optically Indexed Lenses - Optimize image sharpness and brightness from edge to edge
- HD Lens Elements - Premium HD (High Density) extra-low dispersion glass delivers the ultimate in resolution and color fidelity, resulting in High Definition images
- XRPlus Fully Multi-Coated - Premium proprietary coatings deliver the highest level of light transmission with multiple anti-reflective coatings on all air-to-glass surfaces for maximum brightness
- Plasma Tech - cutting edge application process provides unparalleled coating durability and performance
- Second Focal Plane Reticle - Scale of reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification
- Illuminated Center Dot - Daylight bright illuminated center dot provides a precise point-of-aim in all lighting conditions
- Locking Illumination - Locks illumination at preferred setting
- Tube Size - 3 mm diameter tube offers a versatile blend of adjustment, size and weight for a wide variety of shooting applications
- Single-Piece Tube - Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness
- Aircraft-Grade Aluminum - Constructed from a solid block of aircraft-grade aluminum for strength and rigidity
- Waterproof - O-ring seals prevent moisture, dust and debris from penetrating the Rifle Scope for reliable performance in all environments
- Fogproof - Argon gas purging prevents internal fogging over a wide range of temperatures
- Shockproof - Rugged construction withstands recoil and impact
- Hard Anodized Finish - Highly durable hard-coat anodization provides a low-glare matte surface and helps camouflage the shooter's position
- ArmorTek - Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt

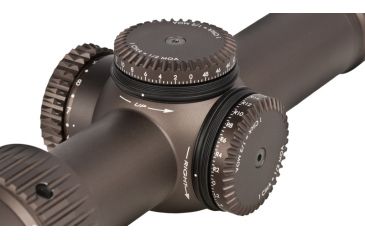

- Large Diameter Turrets - Provide fast, accurate and easily read elevation and windage adjustments. Caps provide external protection for turret
- Friction Reduction System - Heat-treated, hardened-steel pad floats on the end of the turret screw and interfaces with a hardened steel ring on the erector tube for steel-on-steel contact. Prevents galling or deformation of the erector screw contact point for superior durability and repeatability.
- Turret Screws - Provides low-friction, wear-resistant performance - precision-machined from a silicon-brass alloy and treated with an advanced dry-film lubricant. Turret screw threads are precision machined to sub-2 micron tolerances (less than 78-millionths of an inch). Ultra-smooth operation and adjustments
- Erector Tube System - Precision-machined from premium brass alloy with anti-galling properties for strength and durability. The chromium vanadium erector spring withstands compression, has high fatigue resistance and is tumble-polished to a mirror finish for micro-precise elevation and windage adjustments
- Fast Focus Eyepiece - Allows quick and easy reticle focusing
- Locking Side Illumination - Easily accessible and lockable illumination dial is located on the left side of turret housing. 11 intensity levels of illumination with off positions between each setting
Package Contents:
- Vortex Razor HD Gen II 1-6x24 Fogproof Rifle Scope
- Battery
- Lens Cloth
