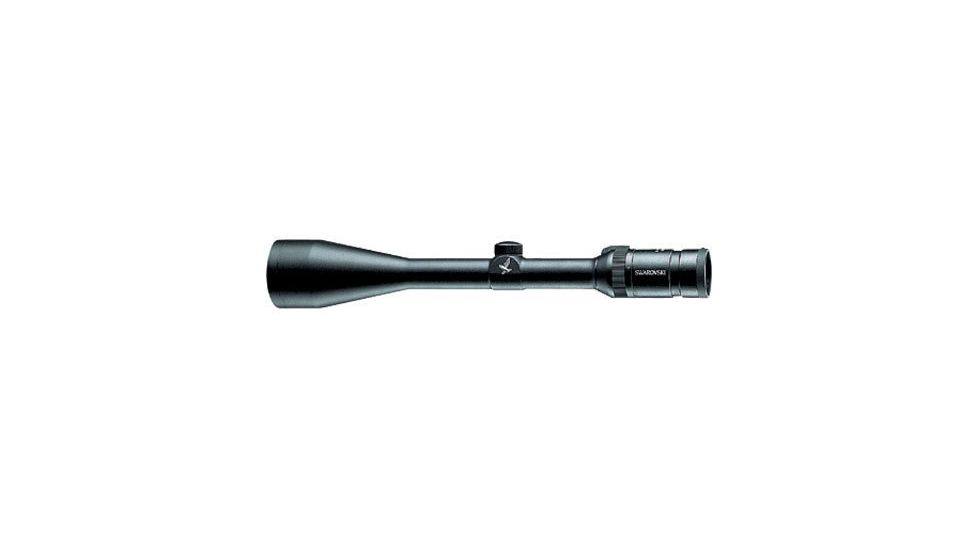

Swarovski Habicht AV 4-12x50mm Rifle Scope - TDS Plex Reticle 52037
1 of 2 images

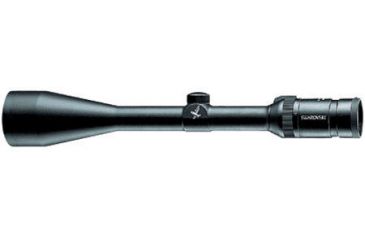

Swarovski Habicht AV 4-12x50mm Rifle Scope - TDS Plex Reticle 52037
2 of 2 images
TDS Plex Reticle
Tap Tap to Zoom
Questions & Answers
Magnification: 4 - 12 xReticle: TDS Plex Magnification Type: Variable Gun Type: Rifle
Code: SW-RS-52037
MPN: 52037
UPC: 708026520372
Product Info for Swarovski Habicht AV 4-12x50mm Rifle Scope - TDS Plex Reticle 52037
The lightweight and very compact construction of Swarovski 52037 Habicht AV 4-12x50 Rifle Scopes w/ TDS Plex Reticle makes this ideal for mountain hunting and stalking. Swarovski Habicht AV 4-12x50mm TDS Plex Rifle Scope features top quality resolution and amazing brightness in a 1" tube with reticle in the second image plane.
Specifications for Habicht AV 4 - 12x50 Swarovski Rifle Scopes w/ TDS Plex Reticle:
| Magnification:Â | Â 4-12x | |
| Objective lens diameter (mm):Â | Â 50 | |
| Objective lens diameter (in):Â | Â 1.97 | |
| Exit pupil, diameter (mm):Â | Â 12.5-4.2 | |
| Exit pupil, diameter (in):Â | Â 0.49-0.17 | |
| Eye relief (mm):Â | Â 90 | |
| Eye relief (in):Â | Â 3.5 | |
| Field of view, real (m/1000 m):Â | Â 9.7-3.3 | |
| Field of view, real (ft/1000 yds):Â | Â 29.1-9.9 | |
| Field of view, real (degree):Â | Â 5.5-1.9 | |
| Field of view, apparent (degree):Â | Â 22.7 | |
| Diopter compensation (dpt):Â | Â ?2.5 | |
| Transmission (%):Â | Â 94 | |
| Twilight factor (DIN 58388):Â | Â 11-25 | |
| Impact point correction per click (mm/100 m):Â | Â 7 | |
| Impact point correction per click (in/100 yds):Â | Â 0.25 | |
| Max. elevation/windage adjustment range (m/100 m):Â | Â 1.2 | |
| Max. elevation/windage adjustment range (ft/100 yd):Â | Â 3.6 | |
| Objective filter thread:Â | Â M 52 x 0.75 | |
| Length, approx. (mm):Â | Â 343 | |
| Length, approx. (in):Â | Â 13.5 | |
| Weight, approx. (g):Â | Â 395 | |
| Weight, approx. (oz):Â | Â 13.9 | |
| Functional temperature:Â | Â -20 to +55? C (-4 to +131? F) | |
| Storage temperature:Â | Â -30 to +70? C (-22 to +158? F) | |
| Submersion tightness:Â | Â 4 m (13 ft) (filled with nitrogen) | |
Features of Habicht Swarovski AV 4-12 x 50mm Rifle-Scopes w/ TDS Plex Reticle:
- RETICLE
-
- Centered reticle in the 2nd image plane (ocular image plane): - For precise shooting with low target coverage, even at high magnification. - For clear recognition, even with small targets at long distances.
- Patented zero setting system for precision adjustment of the point of impact without tools.
- Quadratic adjustment area for full edge-to-edge ranging.
- USABILITY
-
- Slender eyepiece for compact mounting.
- 90 mm (3.5 in) eye relief to protect against recoils, particularly when shooting upwards.
- Magnification ring with sure grip: easy to use and read when in firing position.
- Dioptric correction of +/?2,5 diopters.
- Objective with connection thread for standard photo filter for enhancing contrast.
- ROBUSTNESS
-
- Totally dust- and waterproof, even without turret cap.
- Sturdy, light main tube with or without mounting rail.
Package Contents:
- Swarovski Habicht AV 4-12x50mm Rifle Scope - TDS Plex Reticle 52037
