Thermal-Eye X-50 Thermal Imaging Camera has been discontinued by Thermal Eye and is no longer available. Our product experts have helped us select these available replacements below. You can also explore other items in the Thermal Imaging category yourself to try and find the perfect replacement for you!

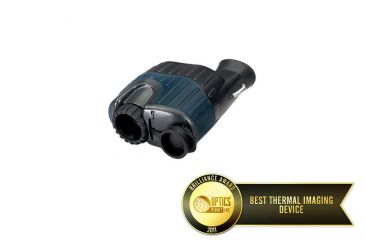

Thermal-Eye X-50 Thermal Imaging Camera Product Info

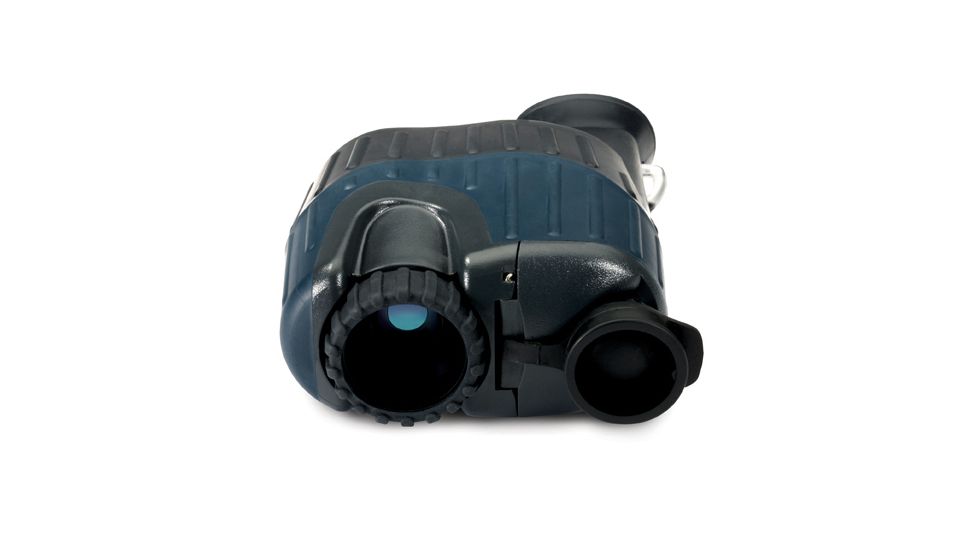

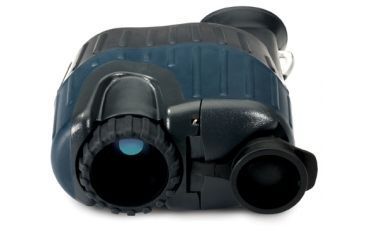

Thermal Eye X-50 Thermal Imaging Camera sets the standard for affordable, small, lightweight thermal imaging cameras. The Thermal Eye X50 Thermal Camera is pocket sized, rugged and durable. Based imageon the Thermal-Eye X100xp Camera, the Thermal Eye X50 from Thermal Eye is perfect for public safety, first responder and security operations. The Thermal X50 Sight has been designed for the cost-sensitive Local and Law Enforcement markets, where price often takes priority. The primary mission of Thermal Eye X50 Thermal Camera is to support first responders with rapid, easy to use, handheld thermal vision hardware, which helps to find and locate suspects and victims.

Thermal Eye X50 Thermal Image Camera is advanced technology, made more affordable. This thermal imager stows easily in your pocket for quick extraction in the field and on the run. The Thermal-Eye X-50 is unaffected by bright lights, glare or shadows, unlike traditional night vision technology. ThermalEye Thermal Imaging is developed with advanced amorphous silicon microbolometer technology. This thermal vision camera is very lightweight (13 ounces/ 0.38kg), and can detect human activity from more than 1000ft (300m) away. The ThermalEye X50 requires two commercial AA batteries, which provide an operating life of 5 hours (lithium batteries) or 2 hours (alkaline batteries).

Specifications for ThermalEye X 50 Thermal Imager Camera:

Focal Plane Array:
Material & Structure: Amorphous Silicon Microbolometer
Pixel Count (Resolution): 100 x 800
Spectral Response: 7-14 μm (filter bandwidth)
Thermal Sensitivity: ≤150 mK
Thermal Imaging Performance: Start-up Time
Brightness/Contrast: Fully automatic
Range to Detect Human Activity: Up to 1000ft (305m)
Susceptibility to Blinding Visible Light: None

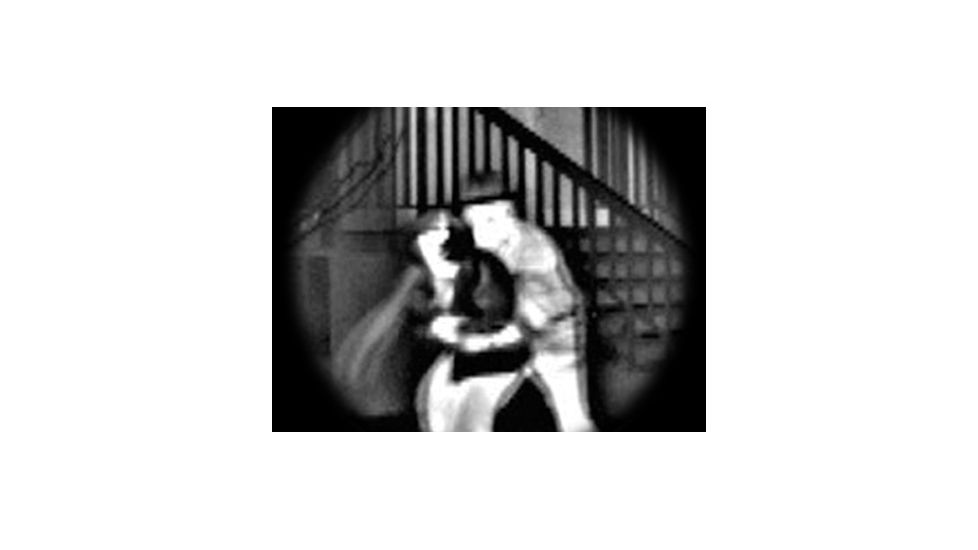

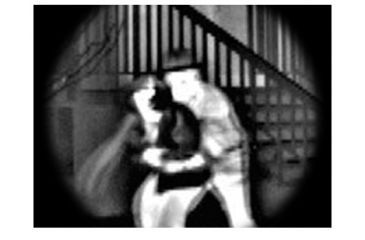

Infrared Polarity: White Hot
Optics:
FOV (H x V): 11 x 8
Focus method: Manual
Minimum Focus Distance: ~ 3ft (1m)
Video:
Viewfinder Display: Monochrome LCD (320 x 240 pixels)
Viewfinder Dimming: Integral to power on/off switch
Power:
Power Source: 2 AA batteries
Operating Time: 2 hours with alkaline 5 hours with lithium
Auxiliary Power: 9 to 12 VDC input on rear outlet jack
Environmental Characteristics
Operating Temperature: +14F to 12°F (-10C to 50C)
Storage Temperature: -4°F to 176°F (-20°C to 80°C)
Water & Shock Resistance: Waterproof to 9ft (3m) submersion, buoyant in water. Shockproof to 6ft (2m) drop.
EMC Compliance: FCC Part 15 & CE Mark
Physical Characteristics:
Size: 5-1/4" L x 4-1/2" W x 2" H (13.4 x 11.4 x 5.1cm)
Weight: 13oz (381g) batteries installed
Eye Cup: Integral to camera body with 2" eye relief

Features of Thermal Eye X-50:

  • Developed with advanced amorphous silicon microbolometer technology
  • Rugged, pocket-sized, lightweight
  • Detects human activity from more than 1000ft (300m) away
  • On-screen battery level indicator
  • Left- or right-hand operation with rugged slip-resistant grip
  • 1/4-20 tripod mount

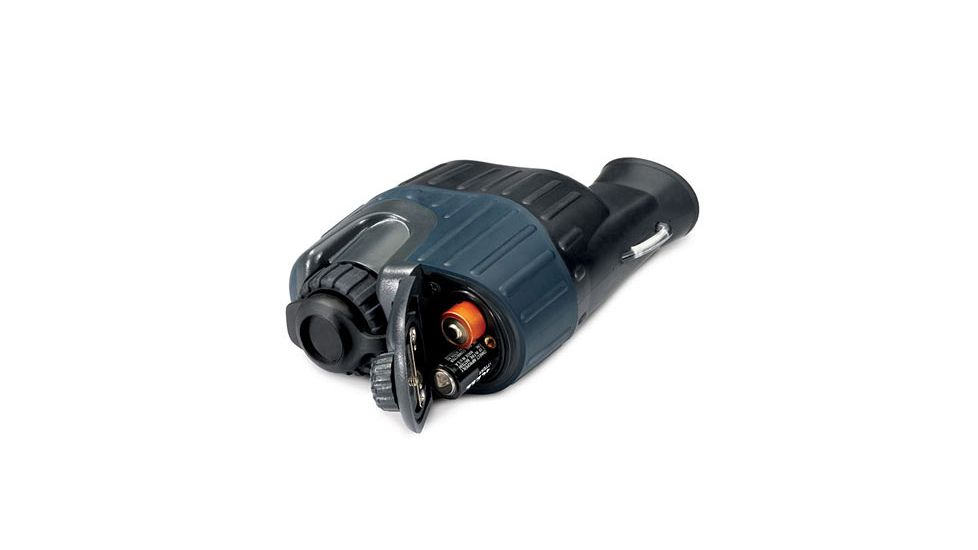

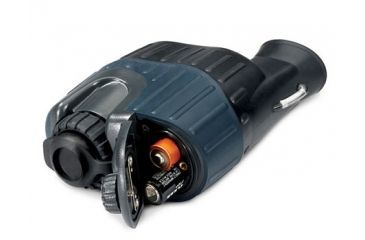

  • Tactile battery loading feature for stealth nighttime operation
  • External video and power jacks
  • Long eye-relief viewfinder for use with glasses, face shield, masks, etc.
  • Unaffected by bright lights, glare or shadows

Package Contents:

  • Thermal Eye X50 Thermal Image Camera X-50
  • 2 AA alkaline batteries
  • Neck strap & wrist strap
  • Lens cover
  • Lens cleaning cloth

Thermal-Eye X-50 Thermal Imaging Camera Related Products

Thermal-Eye X-50 Thermal Imaging Camera Unorderable Models

Thermal Eye X50 100x800px Waterproof Thermal Imaging Camera, PAL 3000303-2, MPN: 3000303-2, UPC: 3000303-2, Code: EY-HS-X50-3000303-2
Thermal Eye X50 100x800px Waterproof Thermal Imaging Camera, NTSC - 1000380-0001, MPN: 1000380-0001, UPC: 658175340409, Code: EY-HS-X50-1000380-0001
