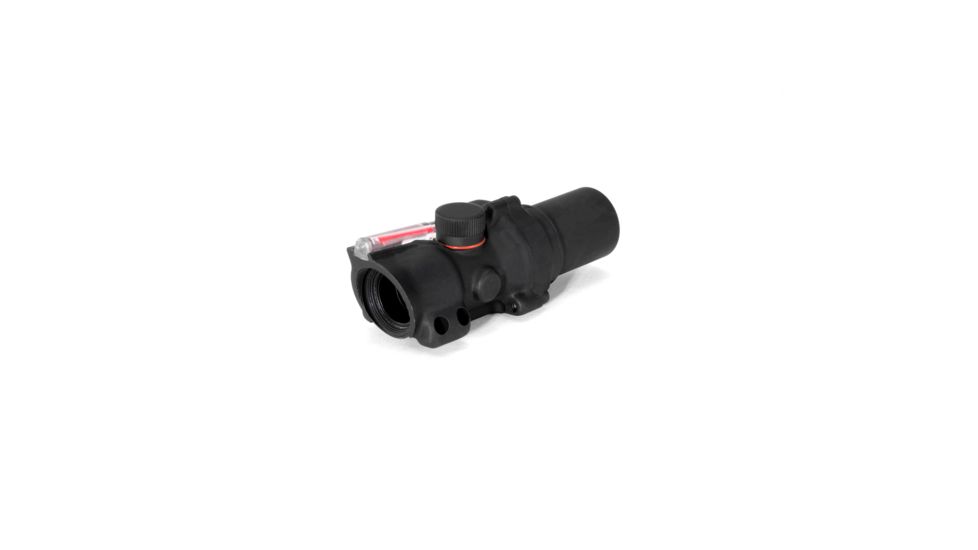

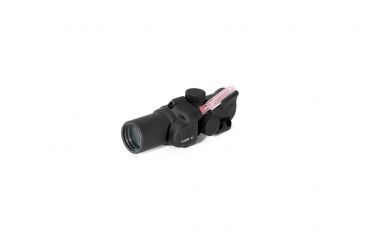

Wrapped in a smaller package, at four and half ounces, the Trijicon ACOG 1.5x16 Scope Circle Dot Reticle w/ Special Ring Short Housing is perfect for fast-moving tactical teams operating in close quarters or for speed-oriented competition venues. This very compact Trijicon ACOG provides weapons like the M16/M4 with excellent fire control capability. Targets are easier and quicker to acquire through the 1.5x16mm models because of the larger field of view (8.3 degrees) and eye-friendly design.

Trijicon's revolutionary Advanced Compact Optical Gunsight (ACOG), originally designed for the military, is now offered in a lightweight compact design. Available in a variety of reticle and magnification configurations, Trijicon Compact ACOG Gun Scope is ideally suited for a wide range of firearm applications and shooting situations. Trijicon Compact ACOG Day&Night Scope is the smaller, lighter weight and more compact version of full sized Trijicon ACOG Weapon Sight. Even with its reduced size, the Compact ACOG Riflescope by Trijicon delivers the same precision any-light aiming capabilities…the same accuracy…and the same tough, dependable performance as the original Trijicon ACOG Riflesight. At less than 6 ounces, Trijicon Compact ACOG BAC Scope Sight is perfect for fast-moving tactical teams operating in close quarters or for speed-oriented competition venues.

Available Trijicon TA26 Compact ACOG 1.5 x 16mm Circle Dot Reticle Scopes:

• TA26S-10-KIT: Trijicon ACOG 1.5x16 Amber Ring & Dot Reticle Scope w/ Special Ring Short Housing
• TA26SR-10-KIT: Trijicon ACOG 1.5x16 Red Ring & Dot Reticle Scope w/ Special Ring Short Housing
• TA26SG-10-KIT: Trijicon ACOG 1.5x16 Green Ring & Dot Reticle Scope w/ Special Ring Short Housing

Included with each model is a FREE Gerber Suspension Multi-Plier 1471.

Specifications for Trijicon 1.5x16 ACOG Rifle-Sight w/ Circle Dot Reticle and Special Ring Short Housing:

Magnification:		1.5
Objective Size:		16
Bullet Drop Compensator:		No
Length (in):		4.00
Weight (oz):		4.50
Illumination source:		Fiber Optics & Tritium

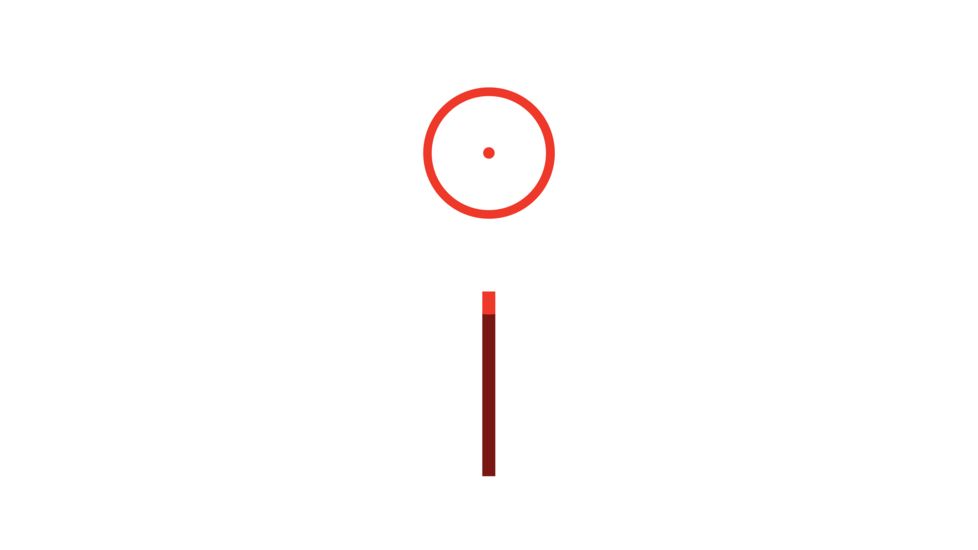

Reticle Pattern:		Circle Dot
Day Reticle Color:		Amber (TA26S-10), Red (TA26SR-10), Green (TA26SG-10)
Night Reticle Color:		Amber (TA26S-10), Red (TA26SR-10), Green (TA26SG-10)
Calibration:		N/A
Bindon Aiming Concept:		Yes
Eye Relief (in):		2.4
Exit Pupil (mm):		10.70
Field of View (°):		7.40
Field of View @ 100yrds (ft):		39.00
Adjustment @ 100 yds (clicks/in):		2.0
Tube Size:		N/A
Mount:		N/A
Mount On/Comes With:		N/A
Housing Material Forged:		Forged Aluminum
Special Order:		No

Features of Trijicon 1.5 x 16 ACOG Gun-Sights w/ Special Ring Short Housing, Circle Dot Reticle:

• Military - Grade Aluminum Alloy Housing Forged 7075-T6 aircraft aluminum alloy housing provides for a nearly indestructible sighting system
• Bindon Aiming Concept (BAC) Trijicon ACOG Sights equipped with BAC allow use of the both-eyes-open aiming method along with scope magnification sighting for rapid target acquisition - in any light
• Longer Eye-Relief Maximum eye-relief for larger caliber rifles and large exit pupil for faster target acquisition
• Internally adjustable Since only the prism housing moves, Trijicon ACOG is much more rugged than conventional design
• Waterproof to 100 Feet / 50 Meters Dry nitrogen filled to eliminate fogging
• Trijicon Fiber Optics Automatically adjusts the brightness level and contrast of the reticle to available light conditions
• Totally Battery-Free ACOG delivers increased hit potential in all lighting conditions - without the use of failure-prone batteries
• Broad Band Anti-Reflective Coated Lenses Multi-coated lenses provide superior clarity and light gathering capabilities with zero distortion
• Ideal for hunting, even among multiple, moving target
• Proudly Made in the U.S.A.
• Lifetime Warranty

Package Contents:

• Trijicon 1.5x16 A.C.O.G. Advanced Compact Optical Gunsight with Circle Dot Reticle, Special Ring Short Housing
• 1 Compact ACOG Scopecoat (TA62)
• 1 Medium sized Pelican Case (TA88)
• 1 Lenspen (LENSPEN)
• 1 Trijicon Logo Sticker (PR15)
• 1 Manual
• 1 Warranty Card
• FREE Gerber Suspension Multi-Plier 1471

In addition to Trijicon ACOG Compact 1.5x16 Night & Day Riflescope Circle Dot Reticle w/ Special Ring Short Housing, make sure to check other Trijicon Riflescopes and other Trijicon products offered in our store.

For more information on Trijicon Compact Advanced Combat Optical Riflesights please make sure to check out the Trijicon Compact Advanced Combat Optical Gunsights Catalog  in PDF format (~120Kb).

For a 360° Spin of Trijicon ACOG Rifle Scope please click here.
