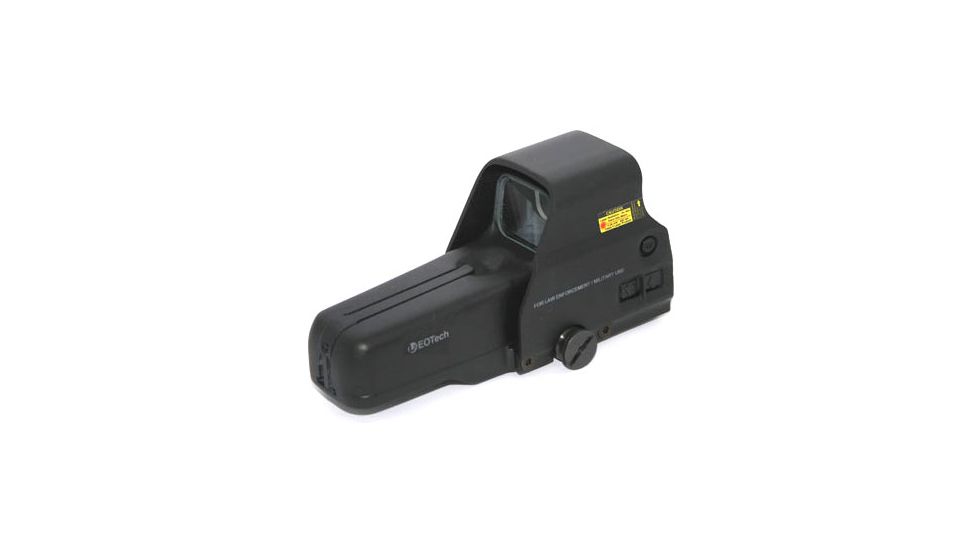

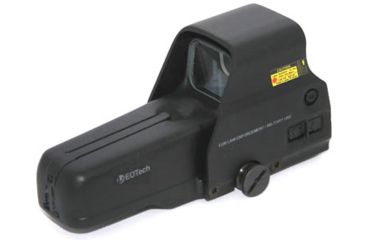

EOTech 557 AR223 Holographic Sight 557.AR223
Tap Tap to Zoom
Code: ET-RD-557-AR223-EE
MPN: 557.AR223
UPC: 672294572237
Product Info for EOTech 557 AR223 Holographic Sight
EOTech 557.AR223 Sight has been developed to optimize the functionality of the HWS. The buttons have been moved from the back to the left side for instant access, allowing a magnifier, night vision, or a back up iron sight to fit closely to the holographic weapon sight body. This new button position allows the user to operate the HWS function switches easier than ever before. Additionally, a portion of the front base has been raised to allow the weapon sight to fit over standard hand guards found on many M-4 or M-16 style weapons.
The 557.AR223 by L-3 EOTech is configured with a new ballistic matching reticle image for the M4 carbine. The battle tested circle/dot reticle will be offered along with a series of 1 MOA aiming dots that are vertically aligned and calibrated specifically for the ballistic drop of .223 caliber ammunition. The reticle provides 4 aiming dots for target distances of 0-300m, 400m, 500m, and 600m. The use of a magnifier is strongly recommended with this EOTech optical sight.
Specifications for EOTech Holo Sight 557:
| Operation | ||
|---|---|---|
| Optics: | Transmission holography - parallax free | |
| Magnification: | 1x | |
| Eye Relief: | Unlimited | |
| Length/Width/Height: | 5.6"x2.1"x2.8" (133x49x71 mm) | |
| Weight: | 11.9 oz | |
| Temperature: | -40 to 150 F (using AA lithiums); -20 to 140 F (AA Alkaline) | |
| Waterproof: | Submersible to 33 ft depth | |
| Sealing: | Fogproof internal optics | |
| Color/Finish: | Non reflective black with hard coat finish | |
| Adjustment (per click): | 0.5 MOA (1/2" at 100 yds) | |
| Adjustment Range: | +/- 40 MOA travel | |
| Mount: | 1" Picatinny (MIL-STD-1913) rail | |
| Return to Zero: | Repeatable to 1 MOA after re-mounting | |
| Heads-Up-Display Window | ||
| Optical Surfaces: | Anti-glare coating | |
| Window Dimensions: | 1.20" x 0.85" (30 x 23mm) | |
| Front Window Material: | 1/8" solid glass | |
| Rear Window Material: | Shatter resistant laminate (3/16" thick) | |
| Field of View (100 yds): | 30 yds (28m) at a 4" eye relief | |
| Standard Reticle: | AR223 BDC reticle with additional drop point dots for 400, 500, and 600 meters | |
| Electrical | ||
| Brightness Adjustment Range: | 146000 | |
| Night Vision Brightness Range: | 1280 | |
| Function Button Location: | Left side near the rear of sight | |
| Power Source: | 2x 1.5V AA batteries (supports lithium, alkaline, or rechargeable) | |
| Battery Life: | 1,000 continuous hours (lithium) at nominal setting 12; 600 continuous with AA alkaline | |
| Brightness Settings: | 30 settings with scrolling feature (10 settings for NV use) | |
| Auto Battery Check Indicator: | Flashing reticle upon start-up | |
| Auto Shut-down: | At 8 hrs- programmable to 4 hrs | |
Features of EOTech HWS 557:
- Buttons on left side to work specifically with NV or magnifiers
- AA Battery model (supports Lithium or Alkaline)
- Ballistic reticle specific to .223 caliber munitions
- Compatible with Gen I-III+ Night Vision Systems (tandem operation)
- Raised 7mm base
Package Contents:
- L-3 EOTech HOLOgraphic Weapon Sight HWS 557
