- Objective Lens Diameter:
- 24 mm
- Magnification:
- 1 - 8 x
- Reticle:
- CQB2
- Tube Diameter:
- 30 mm
- Reticle Focal Plane:
- Second Focal Plane (SFP)
- Exit Pupil:
- 3 - 9.6 mm
- Illumination Color:
- Red
- Finish:
- Matte Black Anodized
- Field of View, Linear:
- 35.3 - 4.9 m at 100 m
- Eye Relief:
- 90 mm
- Diopter Adjustment Range:
- -3 - 2 dpt
- Color:
- Black
- Weight:
- 1.39 lb
- Adjustment Click Value:
- 1 cm at 100 m
- Length:
- 11.54 in
- Adjustment Type:
- Mil Rad
- Parallax:
- 100 m
- Illumination Type:
- LED
- Battery Type:
- CR2032
- Width:
- 30 mm
- Fabric/Material:
- Aluminium
- Adjustment Range:
- 13 Mil Rad
- Height:
- 30 mm
- Lens Material:
- SCHOTT Grade Glass
- Optical Coating:
- Yes
- Light Transmission:
- 90 %
- Brightness Settings:
- 11
- Battery Life:
- 100+ hours
- Operating Temperature:
- -40 - 122 Fahrenheit
- Weather Resistance:
- Yes
- Water Resistance Level:
- Waterproof
- Water Resistant Mark:
- 3 m
- Battery Quantity:
- 1
- Package Type:
- Box
- Included Accessories:
- Schmidt and Bender 20 Year Transferable Warranty, Standard
- Magnification Type:
- Variable
- Additional Features:
- Single Turn MRAD
- W/E Travel at 100 Yds:
- 10 MRAD
- Gun Type:
- Rifle
Code: BD-RS-SBSDRS1-682-811-918-B6-B2
MPN: 682-811-918-B6-B2
UPC: 191992000182

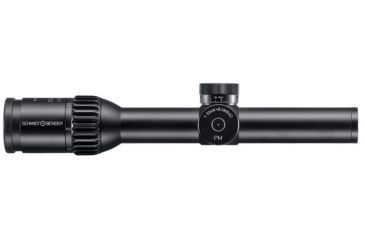

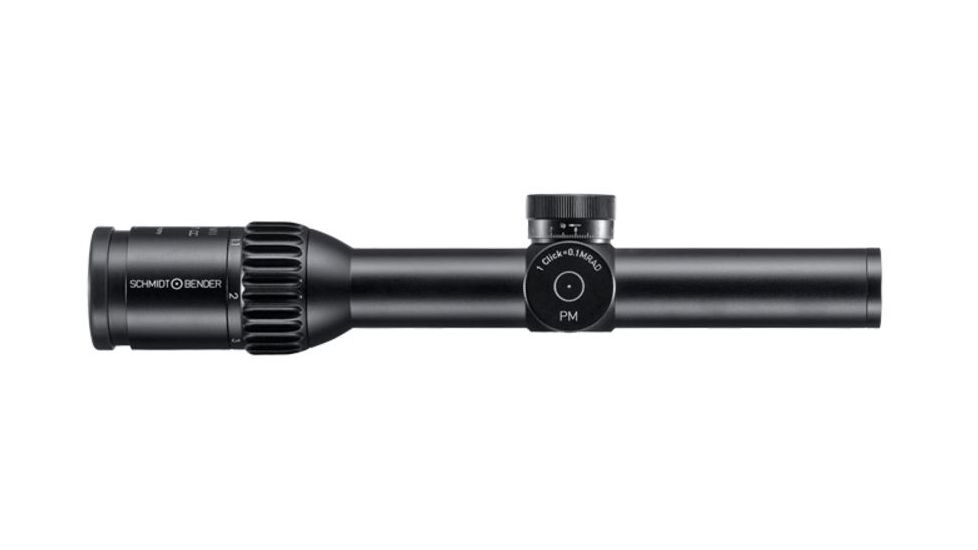

Product Info for Schmidt & Bender Police Marksman II 1-8x24mm Rifle Scope w/Short Dot CQB Reticle
The Schmidt & Bender 1-8x24 PM II ShortDot Dual CC Rifle Scope has a FlashDot in the 2nd focal plane and an illuminable reticle at the 1st focal plane. This combines the advantage of both a reflex sight and a Rifle Scope, which is an ideal solution for mobile use in urban terrain from short to medium distances. The FlashDot allows in combination with the CC Mode (Close Combat Mode) the usage as a reflex sight for short distances. In this mode the Rifle Scope has a true 1 time magnification and is parallax free to 7m. By increasing the magnification above the CC Mode, the Rifle Scope is parallax free to 100m. Since the FlashDot is located in the 2nd focal plane, the size of the dot stays constant. Hereby 3 different illumination increments are eligible. At higher magnifications, the Mildot reticle in the 1st focal plane can be used. Thus an opportunity for direct measurement of target and object sizes is enabled. With a maximum magnification of 8, the 1-8x24 PM II ShortDot Dual CC is also an ideal Rifle Scope for identification purposes and operations up to medium distances. Hereby the illumination of the reticle can be regulated in 8 different increments, with 3 optimized for usage with a night vision device. The 1-8x24 PM II ShortDot Dual CC is a compact 2 in 1 system. Elevation and windage turrets are lockable to protect the zero position against unintentional adjustment. Waterproof to 3 meters. Schmidt and Bender 20 Year Transferable Warranty
Package Contents:
- Schmidt Bender 1-8x24 PM II Short Dot CC, Rifle Scope
Schmidt & Bender 20 Year Transferable Limited Warranty
Schmidt & Bender warrants that the Schmidt & Bender Scopes shall, when delivered, substantially comply with the product descriptions provided by Schmidt & Bender. This warranty applies when such defects appear in Scopes delivered hereunder within the warranty period. The general warranty period shall be twenty (20) years. Some exclusions apply. Schmidt & Bender shall not be liable for any claims resulting from misuse, unauthorized modification, abuse of the Scopes, improper handling, including but not limited to damages caused to Scopes due to normal wear and tear.
Related Products to Schmidt & Bender Police Marksman II 1-8x24mm Rifle Scope w/Short Dot CQB Reticle
Schmidt & Bender Police Marksman II 1-8x24mm Rifle Scope w/Short Dot CQB Reticle Unavailable & Discontinued Models
List of Unorderable Models
- Schmidt Bender PMII Short Dot, Rifle Scope, 30mm tube, 1-8x24mm, CQB cm cw, CC 2nd Focal, Black 682-811-918-B6-B2 , MPN: 682-811-918-B6-B2 , UPC: 191992000182 , Code: BD-RS-SBSDRS1-682-811-918-B6-B2

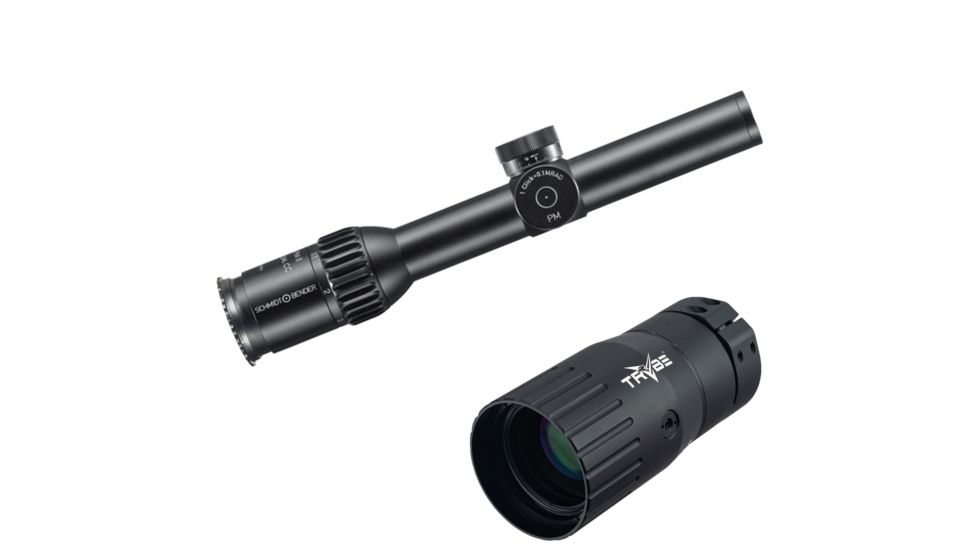

- OP Exclusive - Schmidt Bender PMII Short Dot, Rifle Scope, 30mm, 1-8x24, CQB cm cw PMII, CC 2nd Focal, Black 682-811-918-B6-B2 w/ TRYBE Optics Enhancer - Magnification Doubler , Code: BD-RS-SBSDRS1-682-811-918-B6-B2-KIT1

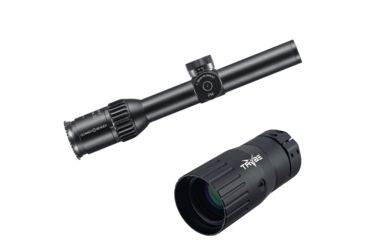

- OP Exclusive - Schmidt Bender PMII Short Dot, Rifle Scope, 30mm, 1-8x24, CQB cm ccw PMII, CC 2nd focal, Black 682-811-918-B7-B3 w/ TRYBE Optics Enhancer - Magnification Doubler , Code: BD-RS-SBSDRS1-682-811-918-B7-B3-KIT1
