Schmidt & Bender 1-8x24 PM II ShortDot Dual CC Tutorial
1 of 11 images

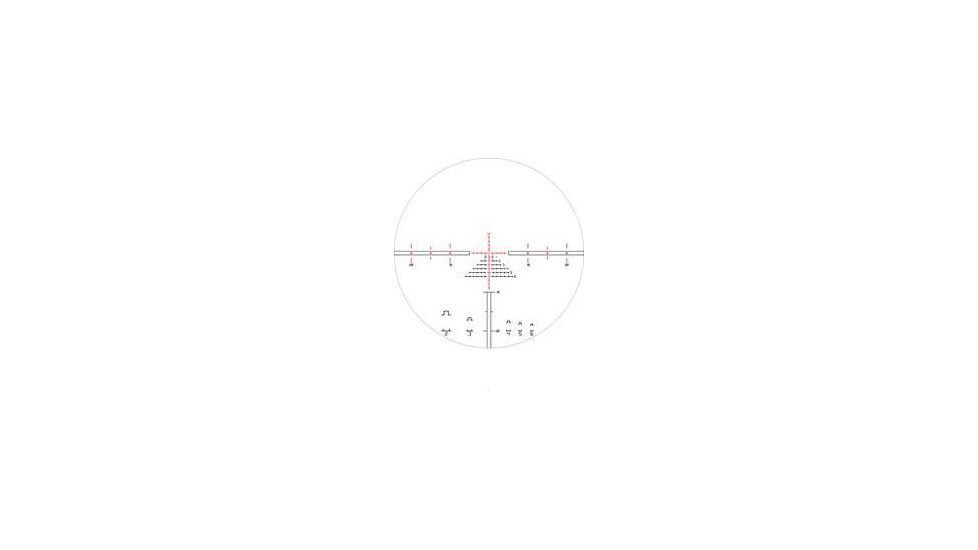

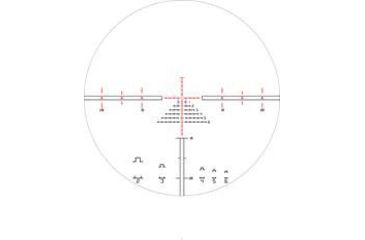

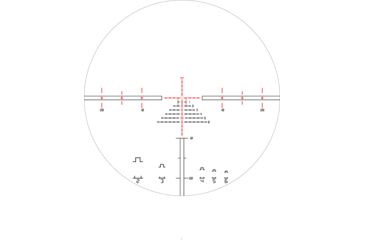

Schmidt & Bender 1-8x24 PM II ShortDot Dual CC MDR-T6 1cm ccw ST,LT, More Tactical Clicks, Single Turn, Locking Turrets Zero Click, Pantone 7504M, length 293mm / 30mm tube 683-846-43E-K2-H2
2 of 11 images
Schmidt & Bender 1-8x24 PM II ShortDot Dual CC Rifle Scope, First Focal Plane, MDR Reticle, 1cm ccw ST MTC LT / ST ZC LT, Black, 683-811-44E-K2-H2
3 of 11 images

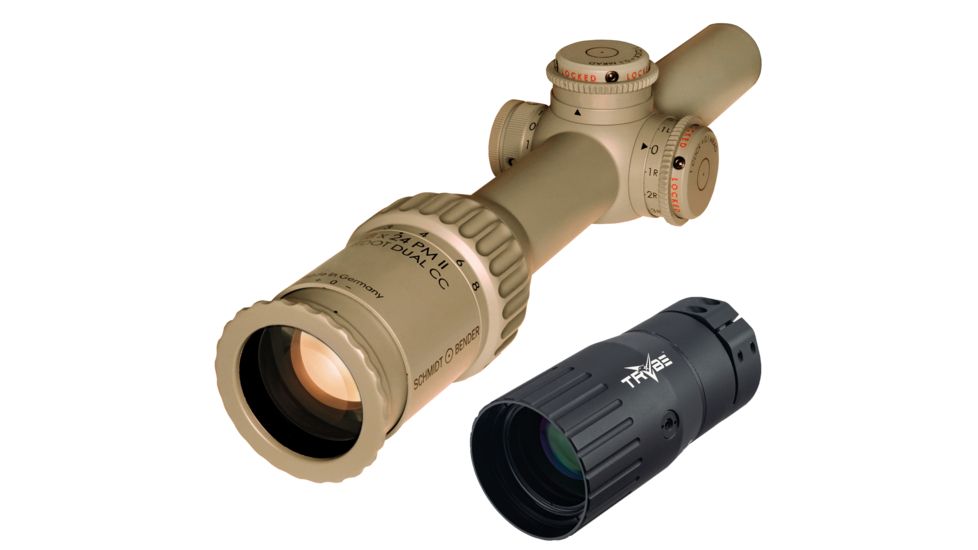

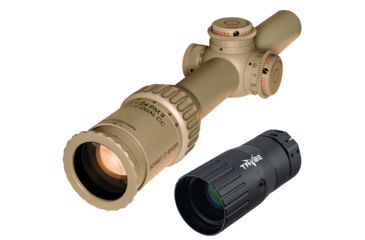

OP Exclusive - Schmidt & Bender 1-8x24 PM II ShortDot Dual CC MDR-T6 1cm ccw ST,LT, More Tactical Clicks, Single Turn, Locking Turrets Zero Click, Pantone 7504M, length 293mm / 30mm tube, 683-846-43E-
4 of 11 images

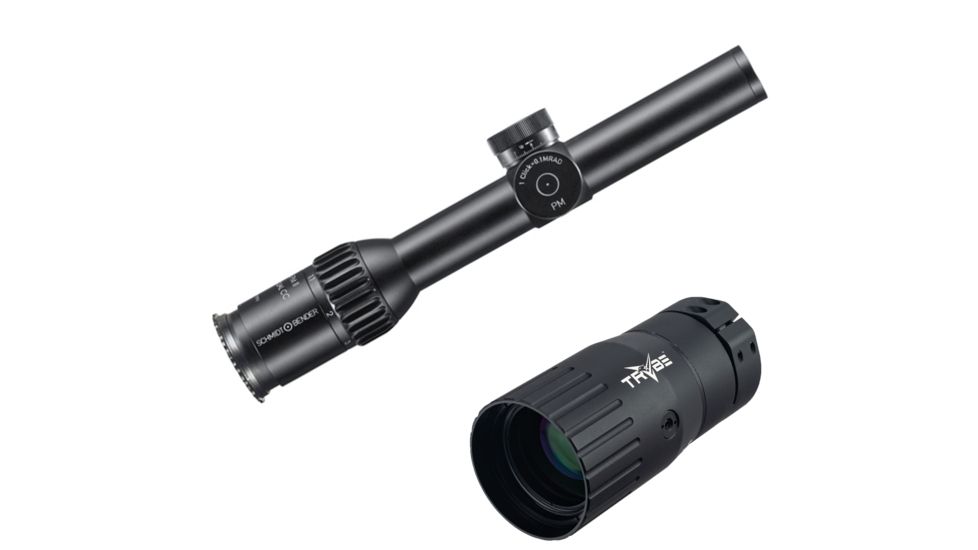

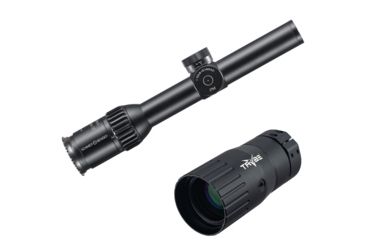

OP Exclusive - Schmidt & Bender 1-8x24 PM II ShortDot Dual CC MDR-T6 Rifle Scope 1cm ccw ST,LT, More Tactical Clicks, Single Turn, Locking Turrets Zero Click, black, length 293mm / 30mm tube, 683-811-4
5 of 11 images

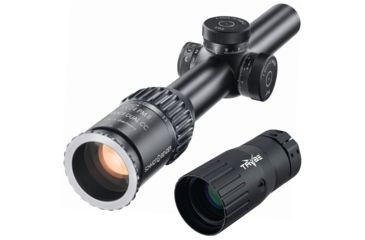

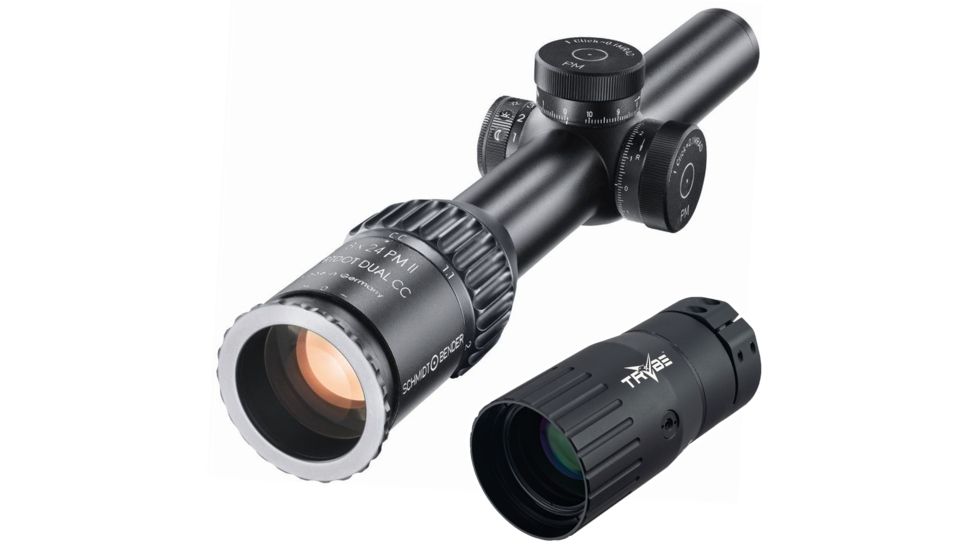

OP Exclusive - Schmidt & Bender 1-8x24 PM II ShortDot Dual CC MDR-T6 1cm ccw ST,LT, More Tactical Clicks, Single Turn, Locking Turrets Zero Click, RAL8000, length 293mm / 30mm tube, 683-845-43E-K2-H2
6 of 11 images
Schmidt & Bender 1-8x24 PM II ShortDot Dual CC Rifle Scope, First Focal Plane, MDR Reticle, 1cm ccw ST MTC LT / ST ZC LT, Black, 683-811-44E-K2-H2
7 of 11 images
Schmidt & Bender 1-8x24 PM II ShortDot Dual CC Rifle Scope, First Focal Plane, MDR Reticle, 1cm ccw ST MTC LT / ST ZC LT, Black, 683-811-44E-K2-H2
8 of 11 images
Schmidt & Bender 1-8x24 PM II ShortDot Dual CC MDR-T6 1cm ccw ST,LT, More Tactical Clicks, Single Turn, Locking Turrets Zero Click, RAL8000, length 293mm / 30mm tube, 683-845-43E-K2-H2
9 of 11 images
Schmidt & Bender 1-8x24 PM II ShortDot Dual CC MDR-T6 1cm ccw ST,LT, More Tactical Clicks, Single Turn, Locking Turrets Zero Click, Pantone 7504M, length 293mm / 30mm tube, 683-846-43E-K2-H2
10 of 11 images

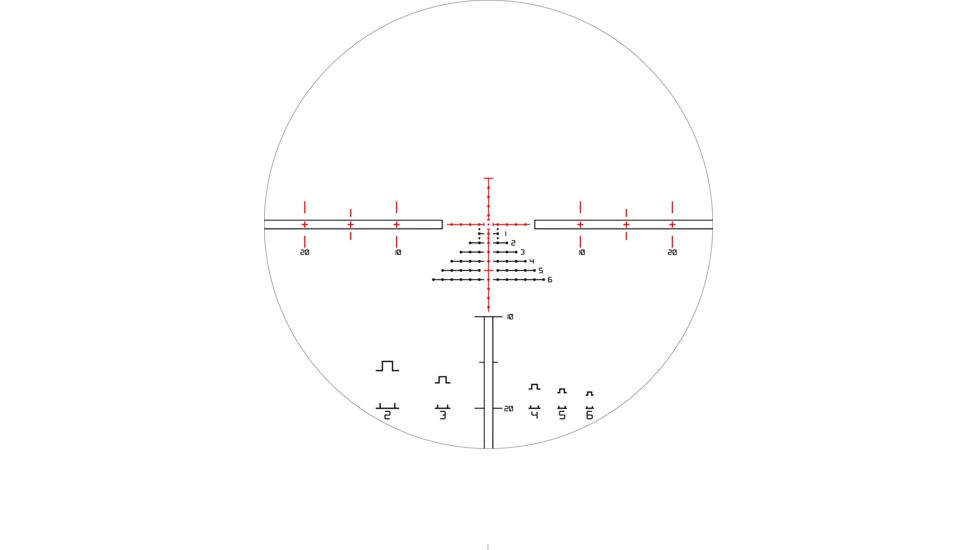

Schmidt & Bender 1-8x24 PM II ShortDot Dual CC MDR-T6 Rifle Scope 1cm ccw ST,LT, More Tactical Clicks, Single Turn, Locking Turrets Zero Click, black, length 293mm / 30mm tube, 683-811-43E-K2-H2
11 of 11 images
Schmidt & Bender 1-8x24 PM II ShortDot Dual CC MDR-T6 1cm ccw ST,LT, More Tactical Clicks, Single Turn, Locking Turrets Zero Click, RAL8000, length 293mm / 30mm tube, 683-845-43E-K2-H2
Tap Tap to Zoom
Documents
Questions & Answers
- Objective Lens Diameter:
- 24 mm
- Magnification:
- 1 - 8 x
- Reticle:
- MilDot CC
- Tube Diameter:
- 30 mm
- Reticle Focal Plane:
- Second Focal Plane (SFP)
- Exit Pupil:
- 3 - 9.6 mm
- Illumination Color:
- Red
- Finish:
- Pantone
- Field of View, Linear:
- 4.9 - 35.3 m at 100 m
- Field of View, Angle:
- 2.8 - 20 degrees
- Eye Relief:
- 90 mm
- Diopter Adjustment Range:
- -3 - 2 dpt
- Color:
- Pantone
- Weight:
- 1.41 lb
- Adjustment Click Value:
- 0.25 MOA
- Length:
- 293 mm
- Adjustment Type:
- MOA
- Parallax:
- 100 m
- Illumination Type:
- LED
- Battery Type:
- CR2032
- Width:
- 30 mm
- Fabric/Material:
- Aluminium
- Adjustment Range:
- 12 Mil Rad
- Height:
- 30 mm
- Lens Material:
- SCHOTT Grade Glass
- Optical Coating:
- Yes
- Light Transmission:
- 90 %
- Brightness Settings:
- 6
- Battery Life:
- 100+ hours
- Operating Temperature:
- -40 - 122 Fahrenheit
- Weather Resistance:
- Yes
- Water Resistance Level:
- Waterproof
- Water Resistant Mark:
- 25 m
- Shockproof:
- Yes
- Fogproof:
- No
- Battery Quantity:
- 1
- Included Accessories:
- TRYBE Optics Enhancer - Magnification Doubler
- Magnification Type:
- Variable
- Additional Features:
- Counter Clock Wise Click Value
- W/E Travel at 100 Yds:
- 13 MRAD
- Gun Type:
- Rifle
Code: BD-RS-PMIICCW-683-846-43E-K2-H2-KIT1
Product No Longer Available
Product Info for Schmidt & Bender 1-8x24 PM II ShortDot Dual CC MDR-T6 1cm ccw ST LT MTC / ST LT ZC Rifle Scopes
With the new version of the 1-8x24 PM II ShortDot Dual CC Schmidt & Bender present anonther concept of his 8 time magnification Rifle Scopes. In contrast to the 1-8x24 PM II ShortDot Dual CC CC with a reticle and FlashDot in the 2nd focal plane the new version of the 1-8x24 PM II ShortDot Dual CC has a FlashDot in the 2nd focal plane and an illuminable reticle at the 1st focal plane. This combines the advantage of both a reflex sight and a Rifle Scope, which is an ideal solution for mobile use in urban terrain from short to medium distances. The FlashDot allows in combination with the CC Mode (Close Combat Mode) the usage as a reflex sight for short distances. In this mode the Rifle Scope has a true 1 time magnification and is parallax free to 7m. By increasing the magnification above the CC Mode the Rifle Scope is parallax free to 100m. Since the FlashDot is located in the 2nd focal plane the size of the dot stays constant. Hereby three different illumination increments are eligible. At higher magnifications the Mildot reticle in the 1st focal plane can be used. Thus a opportunity for a direct measurement of target and object sizes is enabled. With a maximum magnification of 8 the 1-8x24 PM II ShortDot Dual CC is also an ideal Rifle Scope for identification purposes and operations up to medium distances. Hereby the illumination of the reticle can be regulated in 8 different increments, whereof three are optimized for the usage with a night vision.
Features of Schmidt & Bender 1-8x24 PM II ShortDot Dual CC MDR-T6 1cm ccw ST LT MTC / ST LT ZC Rifle Scopes:
- dual focal plane Rifle Scope for short and medium distance; red dot in SFP and reticle in FFP; 12MIL of elevation and windage adjustment; CC Mode for parallax setting at 7m and beyond 1.1 magnification parallax setting at 100m
- dual focal plane
- Included Accessories:
- lens covers
Package Contents:
- Schmidt & Bender 1-8x24 PM II ShortDot Dual CC MDR-T6 1cm ccw ST LT MTC / ST LT ZC Rifle Scopes
