Questions & Answers
Can and how does this mount to helmet? Is the attachment offered thru OP or Flir? Or is it even possible? Expert Answer

Yes, you can mount it to a helmet. You would need a shroud for the helmet and a Wilcox, mini-rail style mount, as well as a dual-dovetail adapter.
https://www.opticsplanet.com/wilcox-l4-g24-break-away-night-vision-mount.html
https://www.opticsplanet.com/wilcox-l4-g24-lt-permanent-mount-shroud-combo-w-lanyard.html

by Tom B, Gear Expert, November 4, 2021
Is this front objective eye relief compatible with conventiinal magnified optics such as rifle scopes with rear objective eye relief of 3in to 4in.? Expert Answer

This unit cannot be used with magnified optics effectively. This is a thermal which means the optic would have to be mounted behind the eyepiece of the monocular. This means that you would be theoretically zooming in on tiny screen in the eyepiece to get your image through the normal day scope. It is not an effective use of this monocular.

by Armando R., Gear Expert, December 17, 2020
Customer Reviews
Helpful Positive Review
This is an update to my previous rating of only 1 star. Over the last few days I've determined the following: 1) all of the problems detailed in my original review seem to have been caused by subpar battery charge or quality, 2) the Breach seems to b...
Read More...
49/52 found this helpful
Helpful Positive Review
Flir Breach Mount on Dual mount with PVS14 by JY, Verified Owner, July 10, 2021
I added the Flir breach to a Dual mount from ModArmory next to a Gen3 PVS-14 WP. I am still fine tuning but if you use outdoor alert on the lowest brightness it is possible to over lay well but it takes time to get used to. There are some times it la...
Read More...
13/13 found this helpful
Helpful Positive Review
Better then PVS-14 by James Elbert, Verified Owner, October 22, 2021
I got a pvs14 white phosphorus Gen3 hand picked best they sell. If you can only buy one or the other I would go Flir Breach over the PVS14 just my opinion. I saved enough to buy both but if I had to choose I would do only the flir. It makes it super ...
Read More...
16/21 found this helpful
Helpful Positive Review
Excellent Product! by Jimmy, November 10, 2018
I bought this along with a Team Wendy Helmet to use while Hog Hunting and have not been let down! Easy to use and adjust this unit allows me to walk in total darkness and scan for Hogs. Once I spot a target I just flip up the Wilcox mount its attache...
Read More...
14/22 found this helpful
Helpful Negative Review
Quite working by Bluefinlight, September 7, 2021
Purchased this flir breach from optic planet whom I enjoy doing business with. Received it today. The Breach looks nice but stoped working within the first five minutes of use. It won’t turn on. Tried four separate batteries and no luck. I’m returnin...
Read More...
4/14 found this helpful
Most Recent Reviews
Good image (not great) but out of spec helmet mounting system ,no front lens focus, no more weapon mounting capability, poor battery life makes this no better than the scout at almost double the cost. Whoever at FLIR thought this was a good replaceme...
Read More...
66/81 found this helpful
Read All 10 Reviews
Magnification:
1 x
Color:
Black
Resolution:
320x256 pixels
Field of View, Angle:
24 - 19 degrees
Objective Lens Diameter:
9.1 mm
Width:
2.7 in
Length:
5.5
Height:
1.9 in
Battery Life:
Up to 90 minutes at 20C
Eye Relief:
16 mm
Battery Type:
CR123A
Water Resistance Level:
Water Resistant
Refresh Rate:
60 Hz
Finish:
Matte
Condition:
Used
Lens Material:
Glass
Operating Temperature:
-20 - 50 Celsius, -4 - 122 Fahrenheit
Thermal Sensitivity:
50 mK
Condition Quality:
Fair
Minimum Focus Distance:
0.25 m
Condition Details:
Missing Item
Temperature Detection Range:
-40 - 80 Celsius
Additional Features:
Temperature Image Palettes - White, Hot, Ranbow HC, Ironbow, Sepia, Arctic, Outdoor Alert
Included Accessories:
CR123A Battery, Lens Cloth, Hard Case
Magnification Type:
Fixed

Code: FR-THM-6WN8Q14001-TAB176WN8Q14001-EDEMO1

MPN: TAB176WN8Q14001-EDEMO1

Product No Longer Available

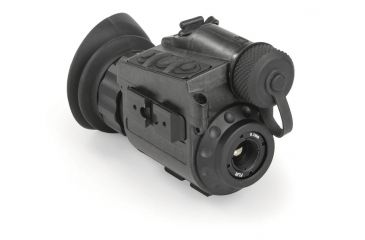

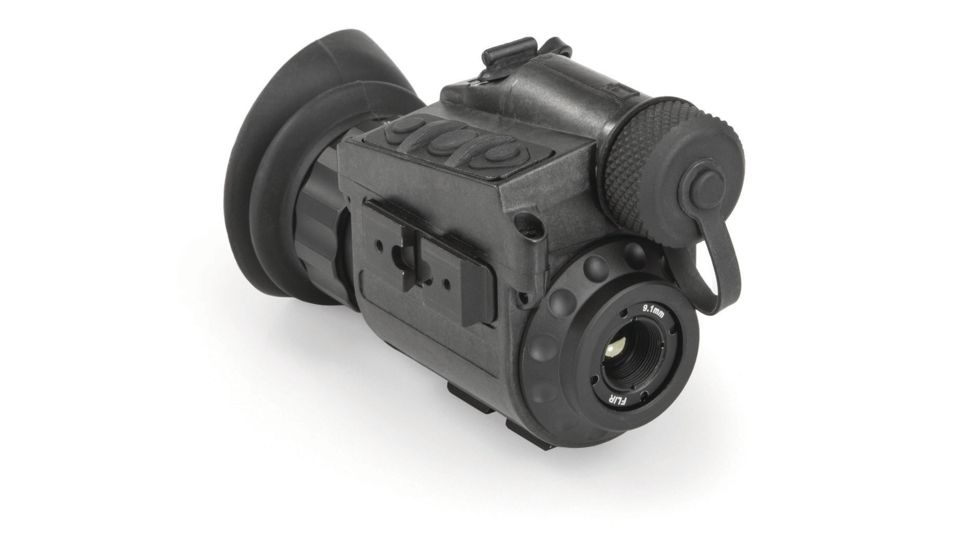

Product Info for Flir Systems Breach PTQ136 Multi-Functional Thermal Imaging Monocular / FLIR Boson - 320x256, 60Hz Core

Designed specifically with law enforcement in mind, the FLIR Systems Breach PTQ136 Multi-Functional Thermal Imaging Monocular can spot the heat of suspects and objects in total darkness or even during daylight hours. The options are endless with these Thermal Imaging Monoculars by FLIR Systems thanks to the seven varying palette options that let you choose how to survey. Plus, the FLIR Breach PTQ136 Thermal Optic can be concealed in a pocket or mounted to a helmet with its mini-rail feature while only adding a minimal amount of weight (7.4oz) to your gear. Observe, record and catch suspects with ease with the impeccable detection of the FLIR Breach Tactical Thermal Imaging Device.image

Features of Flir Systems Breach PTQ136 Multi-Functional Thermal Imaging Monocular / FLIR Boson - 320x256, 60Hz Core:

  • FLIR Boson Thermal Core
  • Video capture capabilities
  • Mini-rail mounting system
  • 7 different video palettes

Package Contents:

  • FLIR Thermal Imaging Multi-Purpose Monocular, FLIR Boson - 320x256, 60Hz Core, Black
