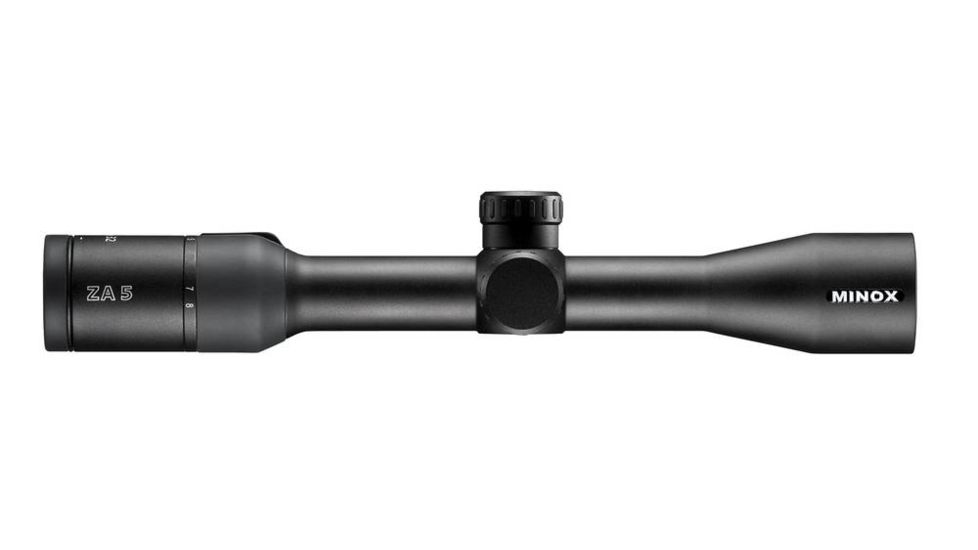

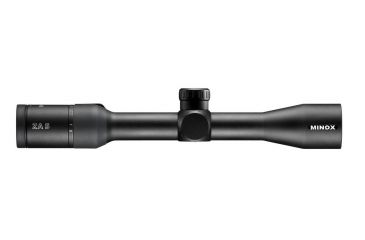

Minox ZA 5 1.5-8x32 Lightweight Shotgun Rifle Scope
Tap Tap to Zoom
Read More...
Read More...
Product Discontinued by Manufacturer
Minox ZA 5 1.5-8x32 Lightweight Shotgun Rifle Scope has been discontinued by Minox and is no longer available. Our product experts have helped us select these available replacements below.You can also explore other items in the Rifle Scopes & Accessories, Rifle Scopes yourself to try and find the perfect replacement for you!
Product Info for Minox ZA 5 1.5-8x32 Lightweight Shotgun Rifle Scope
Minox ZA 5 1.5-8x32 Rifle Scopes is built to operate perfectly in the harshest environments and after enduring the roughest handling, uncontrollable, unexpected things that can happen in the field. The ZA5 1.5-8x 32mm Rifle Scope from Minox is versatile, compact and lightweight – perfect for shotgun, lightweight rifle, or dangerous game. These Minox Rifle Scopes feature lenses from legendary German glass specialist Schott. The magnification on these Rifle Scopes is low enough for woodland hunters yet, provide the high power requirements for open plains and high mountains. Minox also provides complete, no-fault warranty protection with every Minox Rifle Scope.
NOTE: Warranty does not cover fire, theft, loss, or intentional damage
Specifications for Minox ZA-5 1.5-8 x 32mm Rifle Scopes:
| Clear aperture (inch): | 1.26 |
| Parallax adjustment -Range (Side focus): | 100yd |
| Fully Multicoated: | Yes |
| Eye relief: | > 4.0" |
| Exit pupil high power: | 0.16" |
| Exit pupil low power: | 0.84" |
| Eyepiece - diopter (min): | -2 |
| Eyepiece + diopter (min): | 1.5 |
| Magnification high power (mm): | 8 |
| Magnification low power (mm): | 1.5 |
| Field of View Low Power/ft@100yds: | 59.6 |
| Field of View High Power/ft@100yds: | 11.8 |
| Windage / Elevation Click values: | 1/4 min |
| Windage travel - total: | 90 min |
| Min travel one direction from optinial center: | 45 min |
| Elevation travel - total: | 90 min |
| Main tube Outside diameter: | 1" |
| Overall length 12.3": | 11.8" |
| Front mounting distance: | 1.77" |
| Rear mounting distance: | 2.17" |
| Weight: | 13 oz |
Features of Minox ZA 5 1.5x-8x 32mm Rifle Scope:
- Lenses by legendary German glass specialist SCHOTT AG
- Minox M* coating - up to 21 different layers applied to the glass surface to greatly improve light transmission, brightness, contrast, detail, and color rendering
- Windage and elevation knobs, finger adjustable, with positive & precise reticle movements of 1/4 MOA, zero resettable
- Long four inch plus eye relief
- Rubber cushioned fast-focus eyepiece
- Smooth operating soft-touch rubber variable power ring
Package Contents:
- Minox ZA 5 1.5-8x32 Rifle Scope
Related Products to Minox ZA 5 1.5-8x32 Lightweight Shotgun Rifle Scope
Minox ZA 5 1.5-8x32 Lightweight Shotgun Rifle Scope Unavailable & Discontinued Models
List of Unorderable Models
- Minox ZA 5 1.5-8x32 Lightweight Shotgun Rifle Scope, Black w/ VersaPlex Reticle 66103 , MPN: 66103 , UPC: 4007450661030 , Code: MX-RS-ZA5-158X32-66103
- Minox ZA 5 1.5-8x32 Lightweight Shotgun Rifle Scope, Black w/ German #4 Reticle 66104 , MPN: 66104 , UPC: 4007450661047 , Code: MX-RS-ZA5-158X32-66104
- Minox ZA 5 1.5-8x32 Lightweight Shotgun Rifle Scope, Black w/ MinoPlex Reticle 66100 , MPN: 66100 , UPC: 4007450661009 , Code: MX-RS-ZA5-158X32-66100
