Product Discontinued by Manufacturer
Minox ZE 5i 3-15x56 Rifle Scope has been discontinued by Minox and is no longer available. Our product experts have helped us select these available replacements below.You can also explore other items in the Rifle Scopes & Accessories, Rifle Scopes yourself to try and find the perfect replacement for you!
Product Info for Minox ZE 5i 3-15x56 Rifle Scope
The Minox ZE 5i 3-15x56 Rifle Scope gives you the magnification you need and the versatility you want. The Minox ZE 5i Hunting Rifle Scope is the ultimate bright scope for use in deep twilight. Universal and flexible for short, medium and long ranges in densely wooded and wide open hunting grounds. Excellent light transmission to extend the decisive moment.After successfully introducing and establishing the MINOX ZA Rifle Scope line, the optical specialist from Wetzlar is now expanding its product range with the presentation of four new ZE-i Rifle Scopes. The new Rifle Scopes have been meticulously designed to meet the needs of passionate hunters and marksmen and women. With our quality seal "Made in Germany" and an outstanding cost/benefit ratio, they are able to set new standards in their class. Equipped with a 30 mm Rifle Scope tube, a 5x magnification and a red dot reticle with 11 brightness settings, the Minox ZE 5i Zoom Rifle Scope offers the user maximum flexibility and precision for short and long range shooting distances.
Specifications for Minox ZE 5i 3-15x56 SF Rifle Scope:
| Object Lens | ||
|---|---|---|
| Clear aperture (in.): | 2.20 | |
| Parallax adjustment range (Side focus): | 55 yds/50m - infinity | |
| Eyepiece | ||
| Fully multicoated: | Yes | |
| Eye relief: | 3.94 | |
| Exit pupil high power (in.): | .45 | |
| Exit pupil low power (in.): | .15 | |
| Eyepiece -diopter (min): | 2.5 | |
| Eyepiece +diopter (max): | 2.5 | |
| Power Selector | ||
| Magnification high power: | 15 | |
| Magnification low power: | 3 | |
| Image | ||
| Field of view low power/ft 100 yards: | 36.3 | |
| Field of view high power/ft 100 yards: | 7.6 | |
| Windage/Elevation | ||
| Reticle adjustment per click: | 1cm/100m | |
| Windage travel - total: | > or = 19 MOA | |
| Elevation travel - total: | > or = 19 MOA | |
| Mechanical | ||
| Main tube outside diameter (in.): | 1.2 | |
| Overall length (in.): | 14.6 | |
| Front mounting distance (in.): | 1.8 | |
| Rear mounting distance (in.): | 2.8 | |
| Weight (oz.): | 26.1 | |
Features of Minox ZE Rifle Scope:
- Precise reticle with a brilliant illuminated red dot - adjustable in 11 levels of brightness.
- Extremely bright red dot even for hunting during the day
- Helps you to aim quickly and significantly increase your hit rate
- Red dot visible at the 2nd focal plane
- Auto Power-Off: automatic deactivation of the red dot
- Spare battery integrated into the reticle adjustment drum
Package Contents:
- Minox ZE 5i 3-15x56 Rifle Scope
Related Products to Minox ZE 5i 3-15x56 Rifle Scope
Minox ZE 5i 3-15x56 Rifle Scope Unavailable & Discontinued Models
List of Unorderable Models

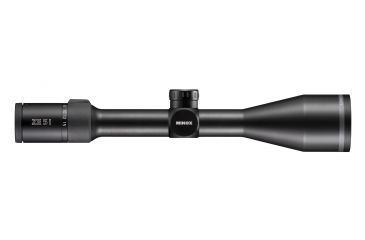

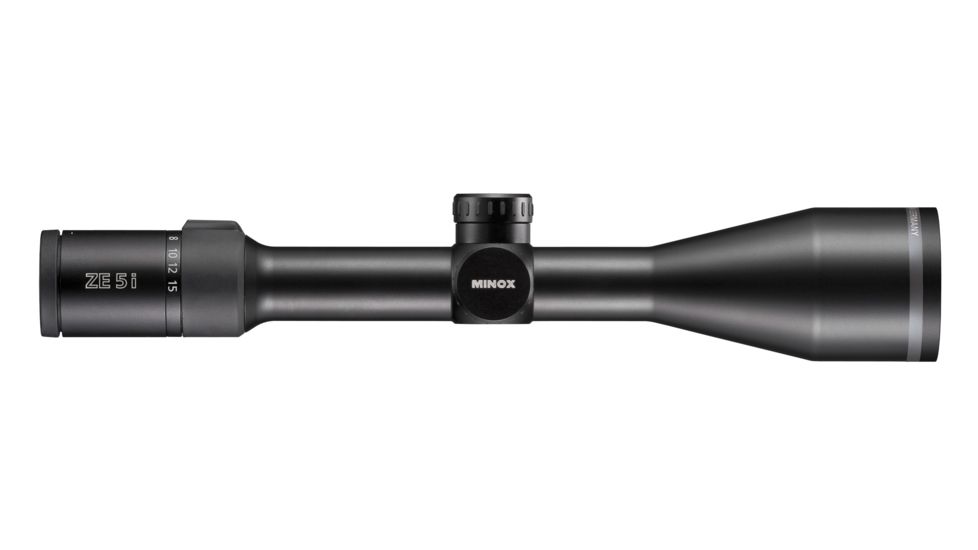

- Minox ZE 5i 3-15x56 SF w/ Illuminated BDC Reticle, Black 66571 , MPN: 66571 , UPC: 4007450665717 , Code: MX-RS-ZE31556-66571

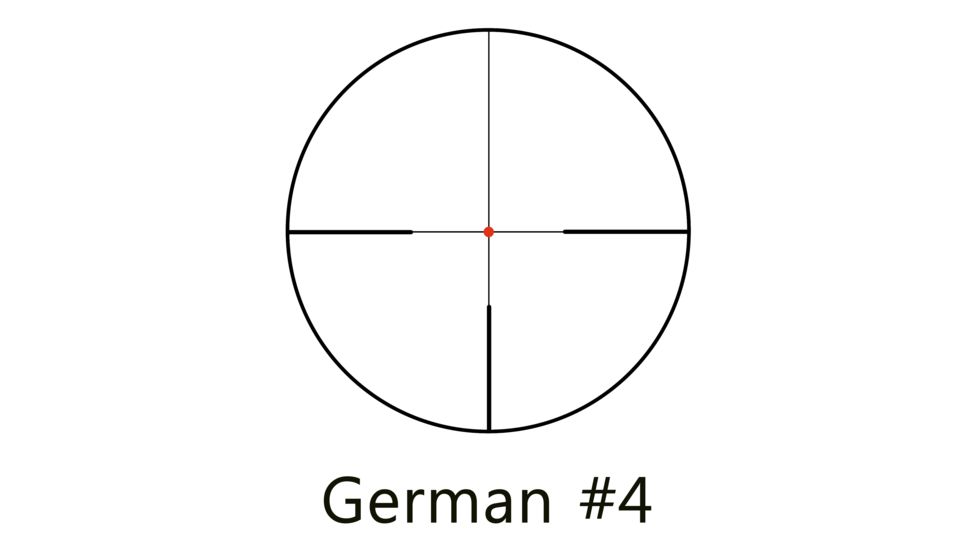

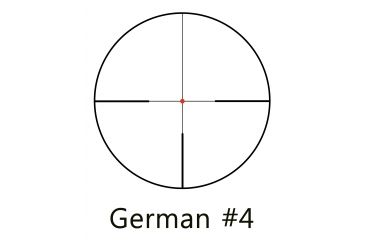

- Minox ZE 5i 3-15x56 SF w/ Illuminated German #4 Reticle, Black 66574 , MPN: 66574 , UPC: 4007450665748 , Code: MX-RS-ZE31556-66574
