Name: Morovision Scorpion Multi-Purpose Thermal Imager with 12degree Lens, NTSC
Brand: Morovision
SKU: MV-THR-MVP-5000-000
Availability: Discontinued

Morovision Scorpion Multi-Purpose Thermal Imager NTSC

Questions & Answers

Color:: Black

Code: MV-THR-MVP-5000-000

MPN: MVP-5000-000

Product No Longer Available

Compare

Product Info for Morovision Scorpion Multi-Purpose Thermal Imager with 12degree Lens, NTSC

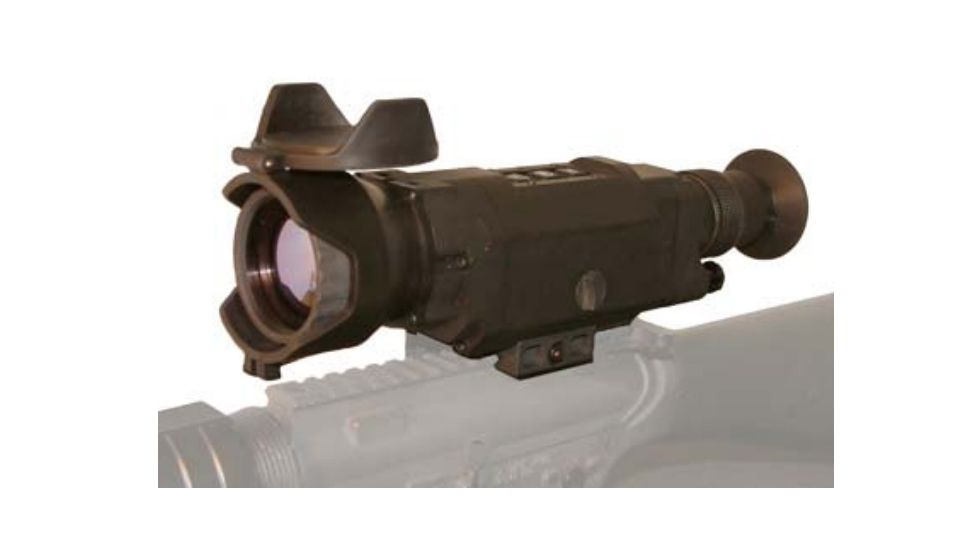

The Morovision Thermal Scorpion Multi-Purpose Imager MVP-5000-000 combines the ergonomic features of a handheld and the convenience of weapon mounting. This Thermal Imaging Rifle Scope from Morovision is based on the proven 320 x 240 Thermal-Eye 4500 Amorphous Silicon microbolometer core, making it perfect for force protection, border patrol officers, police SWAT and special operations forces. The Morovision 12 Degree Scorpion Multiple Purpose Thermal Imaging Device has an image capture feature that stores 200 pictures with USB download interface. This Morovision Thermal Imager Includes protective shield to reduce eyepiece exposure from sand and dust. The Morovision Multi-Purpose Scorpion Thermal Imaging Device offers More than 6 hours operation with four CR123 lithium batteries.

Specifications for Morovision 12° Scorpion Multi-Purpose Thermal Image Gun Sight:

Infrared Focal Plane Array
Type & Material:	Amorphous Silicon Microbolometer
Pixel Count (Resolution):	320 x 240
Spectral Response:	7-14 um (filter bandwidth)
Thermal Sensitivity:	<50 mK
Thermal Imaging Performance
Startup Time:	~ 4 sec
Contrast / Brightness:	Fully Automatic, advanced image processing
Susceptibility to Blinding Visible Light:	None
Infrared Polarity:	User Selectable White = Hot, Black = Cold
Lens Focal Length:	50mm w/ 750ft /230m Range to Detect Human Activity
Lens Focal Length:	25mm w/ 1500ft / 460m Range to Detect Human Activity
Lens Focal Length:	12mm w/ 3000ft / 915m Range to Detect Human Activity
Video
Output Format:	Analog NTSC on rear outlet jack
Display Brightness:	User Adjustable
Digital Zoom:	2X, 4X
Captures 200 images:	USB downloadable
Switchable Polarity:	White Hot / Black Hot
Eyepiece:	Adjustable Diopter and focusing
Power
Power Source:	4 CR123 Lithium batteries
Operating Time:	6 hours (77°F / 25°C Night Operation)
Auxiliary Power:	9 to 12 VDC input on rear outlet jack
Environmental Characteristics
Operating Temperature:	-4°F to 140°F (-20°C to 60°C)
Storage Temperature:	-4°F to 176°F (-20°C to 80°C)
Water & Shock Resistance:	Waterproof to 9 feet (3m) submersion, buoyant in fresh water, Shockproof to 4 feet (1.2m) drop

EMC Compliance:	FCC Part 15
Physical Characteristics
Size:	50mm - 10" L x 2.75" W x 3" H (25.4 x 6.9 x 7.6cm); 25mm - 10.75" L x 2.75" W x 3" H (27.3 x6.9 x 7.6cm); 12mm - 11" L x 2.75" W x 3" H (28.0 x6.9 x 7.6cm)
Weight:	13 oz (381g), batteries installed; 50mm, 31 oz.; 25mm, 31 oz.; 12mm, 34 oz.;

Features of Morovision 12° Multi-Purpose Scorpion Thermal Imaging Scope:

Rapid start-up in 4 seconds
5 selectable reticles
Digital boresight capability
Image capture feature stores 200 pictures with USB download interface
More than 6 hours operation with four CR123 lithium batteries.
Amorphous Silicon detector with 320 x 240 resolution
Includes protective shield to reduce eyepiece exposure from sand and dust
Riser, 1 1/2°± See-Through Picatinny Rail Riser, and AC power adaptor
Handstrap, MIL-STD-1913 (Picatinny Rail) mount and 1/4-20 thread mount for handheld, weaponmount or tripod operation
Lightweight, rugged design " unit withstands 4ft drop, 2ft on-weapon drop and 9ft submersion - live fire tested on M4 and suitable for M16
