Tap Tap to Zoom
- Magnification:
- 3 - 12 x
- Reticle:
- Illuminated SR 4-NK
- Magnification Type:
- Variable
- Gun Type:
- Rifle
Code: SW-RS-57098
MPN: 57098

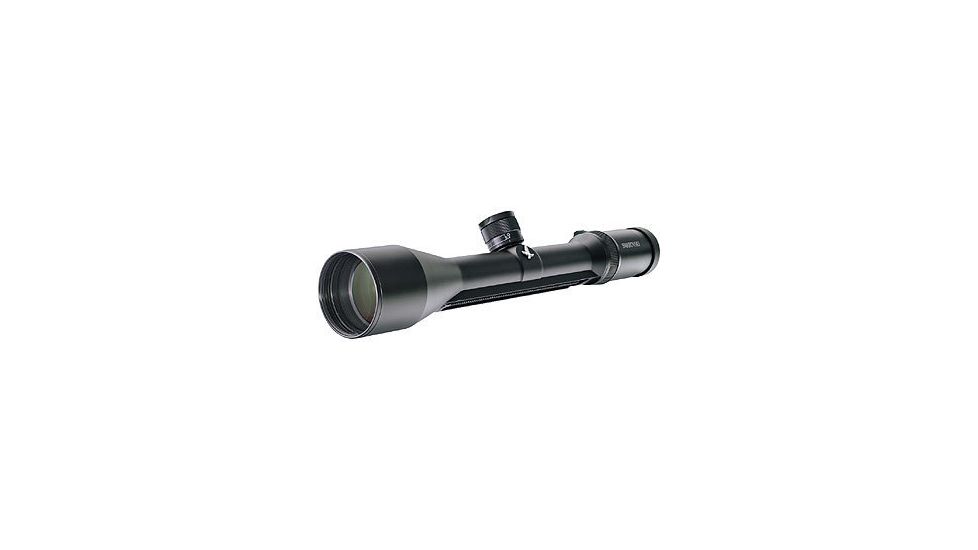

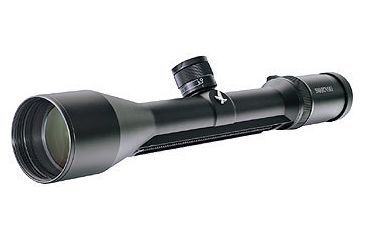

Product Info for Swarovski PH Habicht PV-N 3-12x50mm SR 4-NK Reticle Rifle Scope - Swarovski Rail & Illuminated #4NK Reticle 57098 Rifle scope
Swarovski 57098 PH Habicht PV-N 3-12x50 SR Illuminated 4-NK Reticle Rifle Scope are Swarovski Rifle Scopes with the innovative SR mounting rail (Swarovski Rail), which herald a genuine revolution in the precision and the mounting of Rifle Scopes. This unique meshing system will prevent any movement whatsoever of the Rifle Scopes , which may result from recoil forces ? even with big game and wild boar calibers. Swarovski PH PVN 3-12x50mm SR 4NK Reticle Habicht Rifle Scope with Rail is now no longer necessary to drill any holes when fitting the rifle-scope. As a result, it is now possible to not only mount the Rifle Scope from Swarovski much closer to the rifle, but it can also be easily changed at any time. Swarovski PV N 3-12 x 50 Habicht #4NK Reticle SR Rifle Scope is lightweight and with variable magnification perfect for stalking or when moving from hide to hide. Rapid magnification adjustment with an ergonomic sure grip. Swarovski PV-N Habicht PH3-12x50SR - 4NK Illuminated Rifle Scope offers the perfect optical system, which provides a wide field of view and edge-to-edge sharpness. Swarovski PH Series 3-12x50SR 4NK PV-N Rifle Scope w/ Illuminated Reticle features the telescopic dampening system for the eyecup protects against injuries.![]()
Specifications for Swarovski Habicht PV-N 3-12 x 50 mm Rifle-scopes w/ Swarovski Rail & Illuminated #4-NK Reticle:
| Magnification:Â | Â 3-12x | |
| Objective lens diameter (mm):Â | Â 39-50 | |
| Objective lens diameter (in):Â | Â 1.54-1.97 | |
| Exit pupil, diameter (mm):Â | Â 13.1-4.2 | |
| Exit pupil, diameter (in):Â | Â 0.52-0.17 | |
| Eye relief (mm):Â | Â 80 | |
| Eye relief (in):Â | Â 3.15 | |
| Field of view, real (m/1000 m):Â | Â 11-3.5 | |
| Field of view, real (ft/1000 yds):Â | Â 33-10.5 | |
| Field of view, real (degree):Â | Â 6.3-2 | |
| Field of view, apparent (degree):Â | Â 23.2 | |
| Diopter compensation (dpt):Â | Â +2, -3 | |
| Transmission (%):Â | Â 94/92 | |
| Twilight factor (DIN 58388):Â | Â 09-25 | |
| Impact point correction per click (mm/100 m):Â | Â 10 | |
| Impact point correction per click (in/100 yds):Â | Â 0.36 | |
| Max. elevation/windage adjustment range (m/100 m):Â | Â 1.1 | |
| Max. elevation/windage adjustment range (ft/100 yd):Â | Â 3.3 | |
| Objective filter thread:Â | Â M 52 x 0.75 | |
| Length, approx. (mm):Â | Â 340 | |
| Length, approx. (in):Â | Â 13.4 | |
| Weight, approx. (g):Â | Â 495 | |
| Weight, approx. (oz):Â | Â 18.3 | |
| Functional temperature:Â | Â -20 to +55? C (-4 to +131? F) | |
| Storage temperature:Â | Â -30 to +70? C (-22 to +158? F) | |
| Submersion tightness:Â | Â 4 m (13 ft) (filled with nitrogen) | |
Features of Habicht Swarovski PH Series PV - N 3 - 12x50mm SR 4 - NK Matte Black Rifle Scope:
- OPTICS
- Complex, high light-gathering optical system for a wide field of view with maximum edge-to-edge sharpness. Nitrogen purged to prevent fogging.
- Microstructure grooves to prevent residual reflections inside the tube for bright, contrasty images, even with backlighting.
- USABILITY
- The advantages of the new SR mounting rail are best appreciated on calibers with powerful recoil forces, such as big game or wild boar.
- Fitted without any drill holes on the rifle scope.
- The rifle scope can be easily changed at any time and without causing any damage.
- Eyecup with telescopic shock dampening, increases safety particularly when shooting upwards.
- Magnification ring with sure grip and offset scale. Easy to use and read when in firing position.
- Dioptric correction from ?2 to 3 diopters.
- ROBUSTNESS
- Swarovski meshing system for total shock resistance.
- Can be mounted much closer to the rifle.
- Rubber cover for the exposed mesh to protect against dust and dirt.
- Guaranteed Swarovski quality ? long warranty.
- Sturdy, interlocking fixture: No movement or slippage in any direction. The rifle scope stays firmly in place. No drilling or adhesive necessary.
- Totally dust- and waterproof, even without turret cap.
- Patented Swarovski Coil Spring System guarantees shock resistance, even with large calibre firearms.

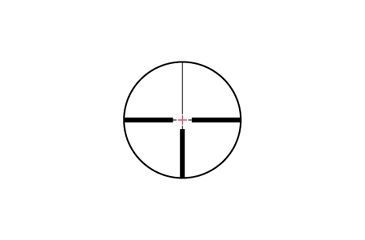

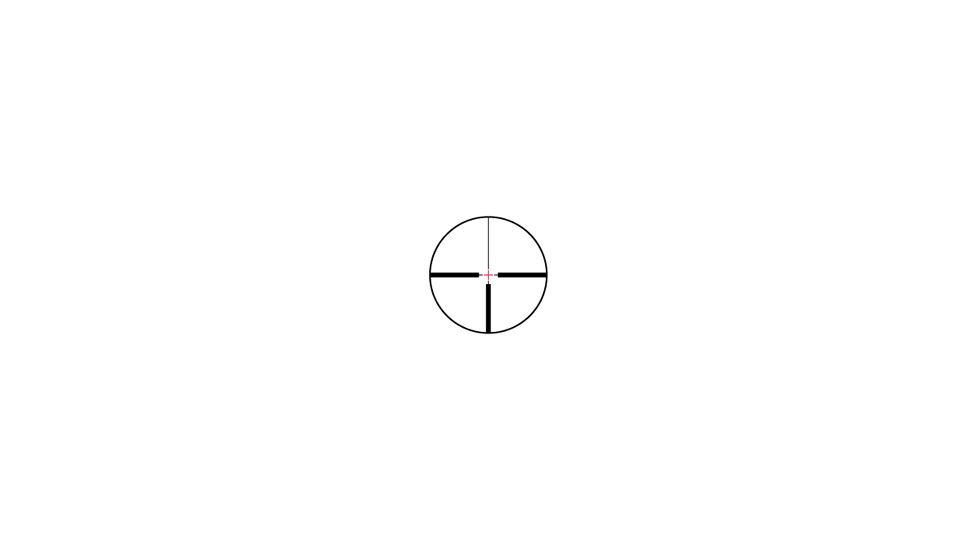

- ILLUMINATED RETICLE
- Illuminated reticles with variable fine adjustment of light intensity. Fully functioning, even when illumination is switched off.
- PV-N models are 100% waterproof with screw-on turret caps or illumination unit attached.
- Spare battery holder supplied as standard with the illumination device.
Package Contents:
- Swarovski PH Habicht PV-N 3-12x50mm SR Illuminated 4-NK Reticle Rifle Scope w/ Rail 57098
