Questions & Answers
What type of scope mounts the rings does it go on it because I have bought maybe four different types and none of them fit Expert Answer

I would recommend reaching out to us at techsales@opticsplanet.com so we can help you out further.

by Ryan Tarczynski, Gear Expert, May 7, 2021
What kind of rings will work with it ? Expert Answer

Any rings that are tube diameter of 30 mm and would need the ring height of high for this scope.

by Ryan Tarczynski, Gear Expert, May 7, 2021
Customer Reviews
Helpful Positive Review
great scope for the $$ by Andy, April 4, 2017
This glass is very clear and bright for the money. It is my first mildot reticle, and I'm really loving it. The top angle focus is easily accessed, but causes the middle of the scope body to be longer than most scopes, thereby limiting forward/backwa...
Read More...
4/4 found this helpful
Helpful Positive Review
Rugged and easy to use. by jerry, July 23, 2015
Solid with attention to details like big knurly knobs for adjustment, the thickened area by the adjustment knobs to prevent scope slide, and the sight is very clear. I especially like the mil dot sight without batteries for batteries may not be avail...
Read More...
8/8 found this helpful
Helpful Negative Review
Top angle focus assy fell off by ee9843791, October 31, 2017
Mine is the non lit reticle TP416x50MD --First- the finish is blotchy and inconsistent--shade to scope -the worst. Second- the knob screws are scratched up- like the tech was rough with it. Third the reticle is crowded at the cross hair and too thi...
Read More...
9/12 found this helpful
Most Recent Reviews
It will not Focus!!! by hole puncher, July 30, 2022
I got this Scope for the fast focus know on the side.Well, it will not focus a clear picture, no matter what you adjust.I bought a scope mount, and it was said it will fit this Scope, but it didn't.So I looked and looked, and I finally bought a $70.0...
Read More...
1/1 found this helpful
Read All 4 Reviews
Objective Lens Diameter:
50 mm
Magnification:
4 - 16 x
Reticle:
Mil-Dot
Tube Diameter:
30 mm
Reticle Focal Plane:
Second Focal Plane (SFP)
Exit Pupil:
3 - 10 mm
Illumination Color:
None
Finish:
Matte
Field of View, Linear:
6.3 - 24.1 ft at 100 yds
Eye Relief:
3.25 in
Diopter Adjustment Range:
-3 - 3 dpt
Color:
Black
Weight:
26.5 oz
Adjustment Click Value:
1/4 MOA
Length:
14.1 in
Adjustment Type:
MOA
Parallax:
50 yds to infinity
Illumination Type:
Non-Illuminated
Battery Type:
CR2032
Width:
2.5 in
Fabric/Material:
Aluminum
Adjustment Range:
60 MOA
Height:
2.5 in
Focus Range:
50 yds to infinity
Lens Material:
Glass
Optical Coating:
Diamond Tuff14, Fully Multi-Coated
Brightness Settings:
11
Battery Life:
300 hours
Operating Temperature:
-20 - 60 Celsius
Weather Resistance:
Yes
Water Resistance Level:
IP65
Shockproof:
Yes
Fogproof:
Yes
Battery Quantity:
1
Included Accessories:
Standard
Magnification Type:
Variable
Condition:
New
W/E Travel at 100 Yds:
60 MOA
Attachment Type:
Riflescope Ring

Code: LW-RS-TP416X50-TP416x50MD

MPN: TP416x50MD

UPC: 810194020063

Product No Longer Available

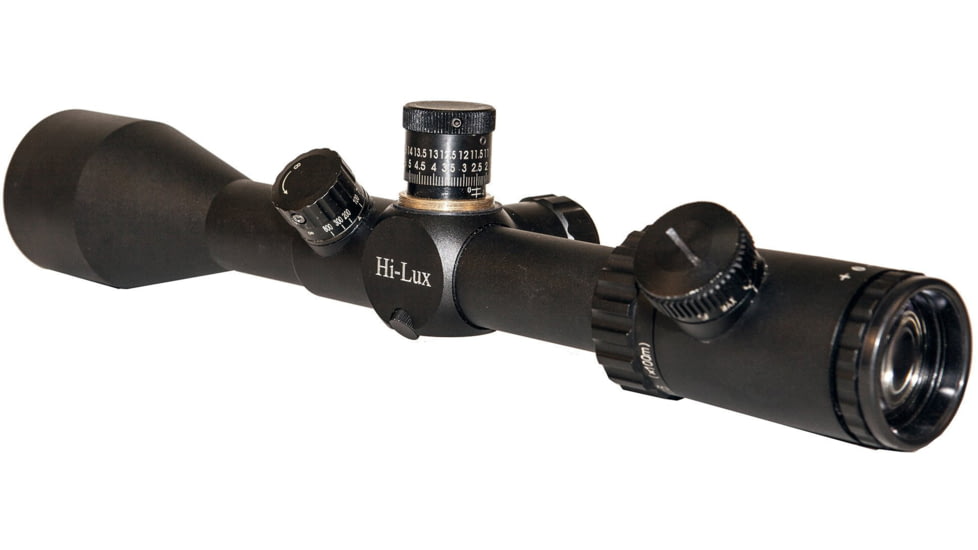

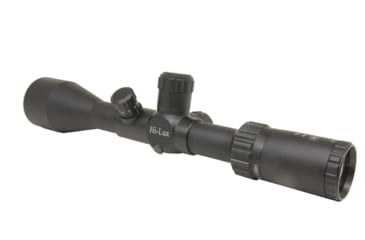

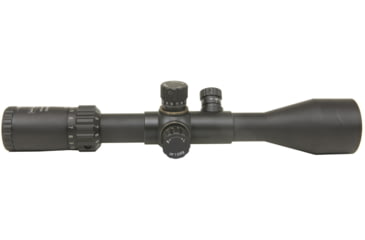

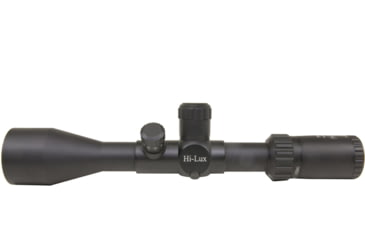

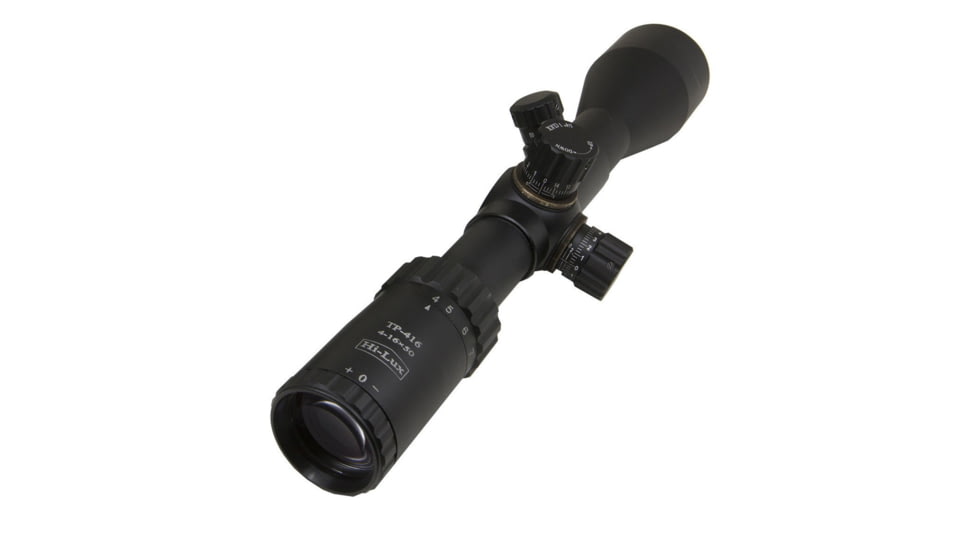

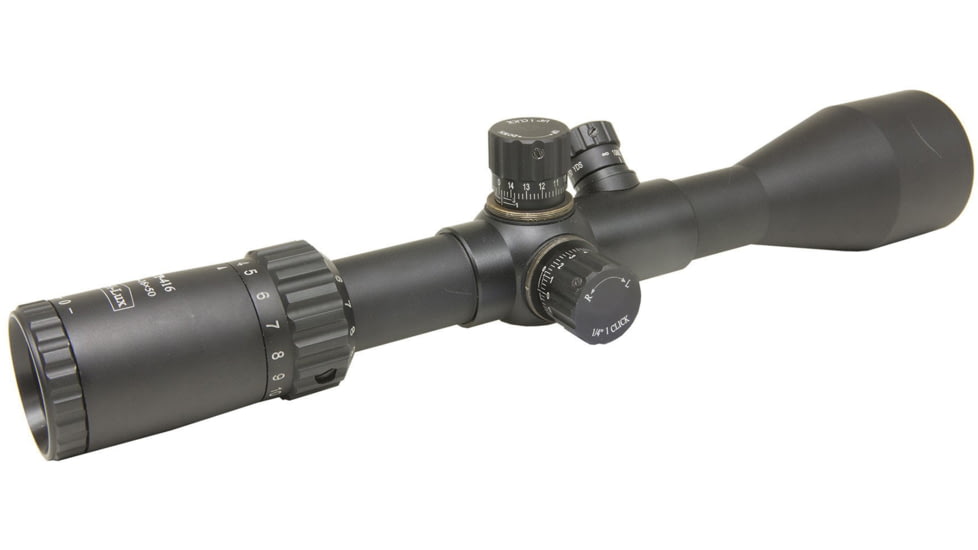

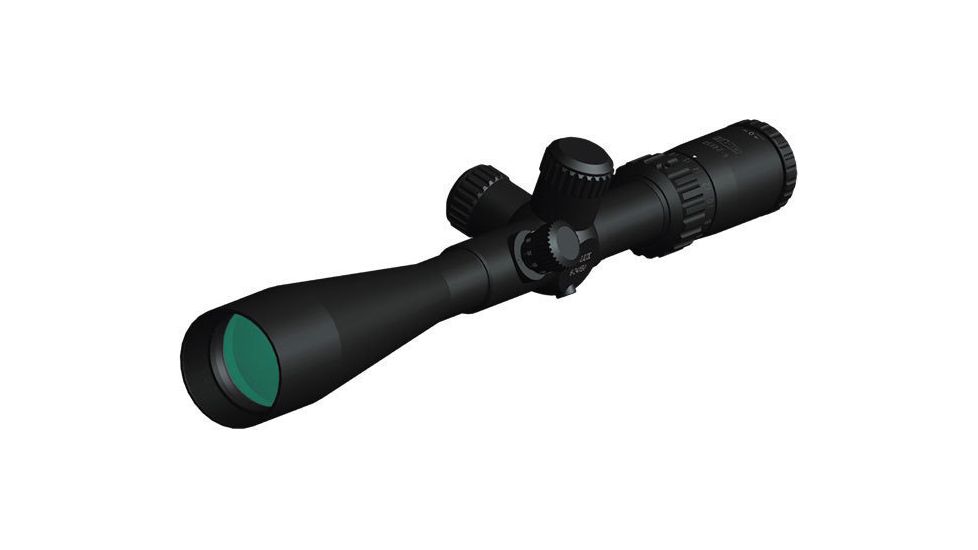

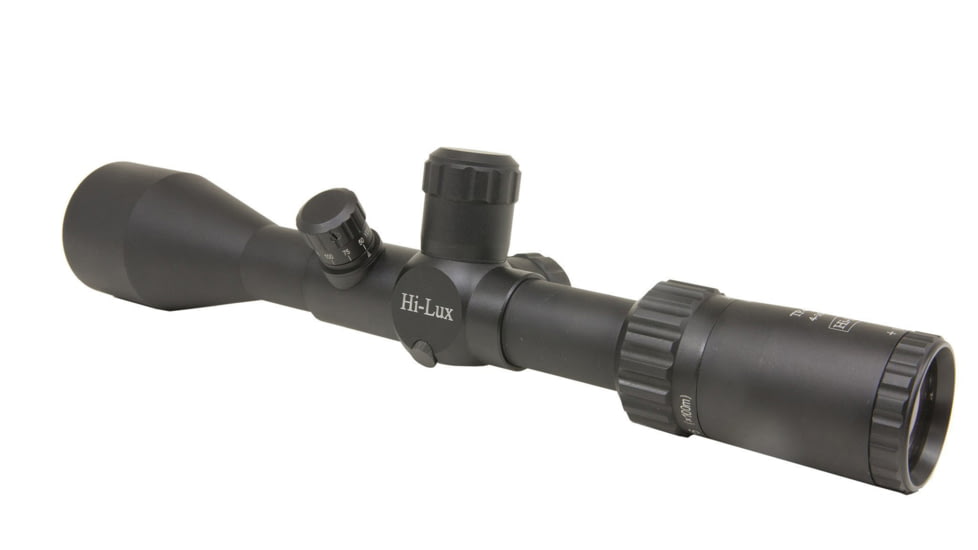

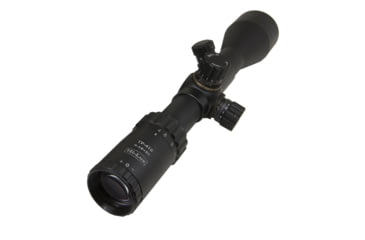

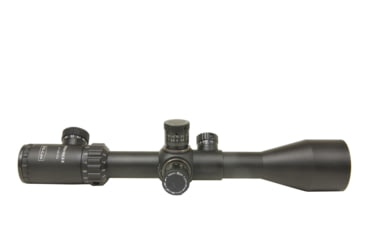

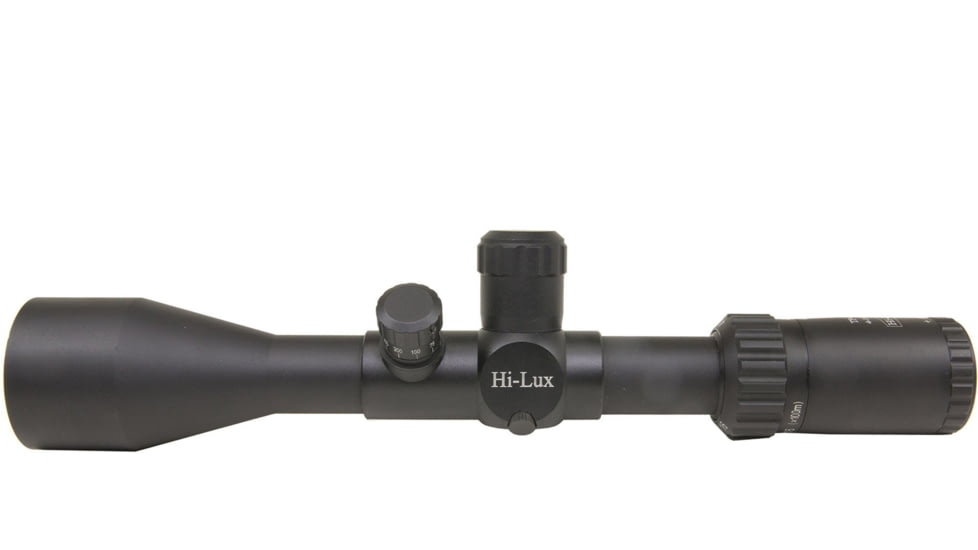

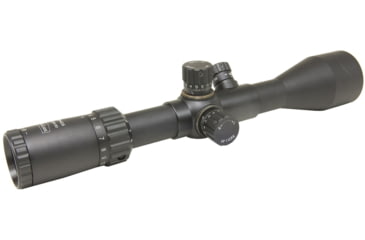

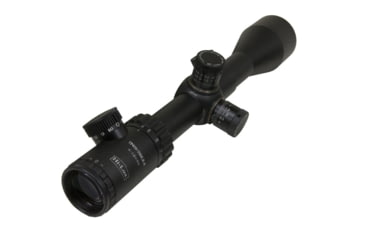

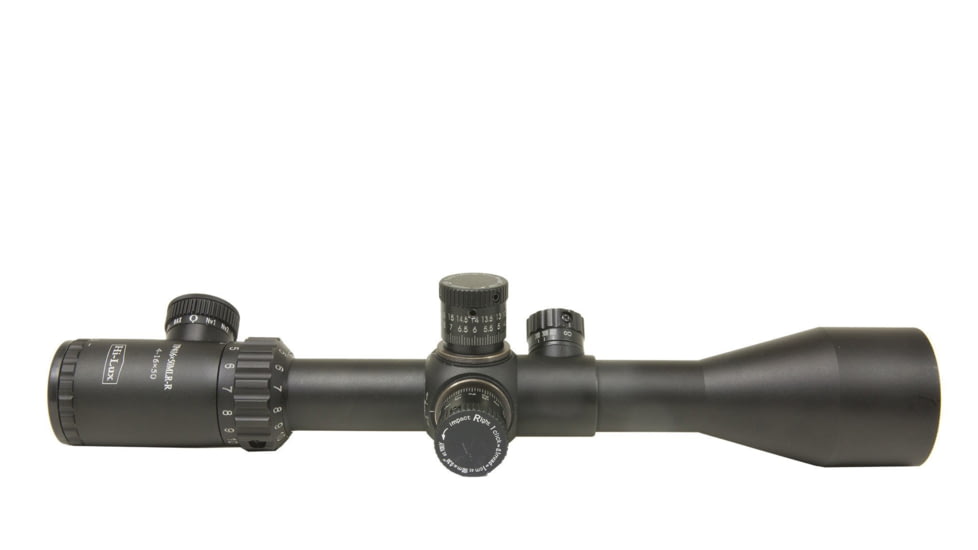

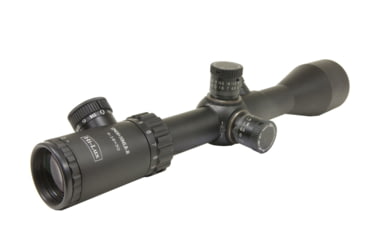

Product Info for Hi-Lux Optics Top Angle 4-16x50mm Rifle Scopes, 30mm Tube, Second Focal Plane (SFP)

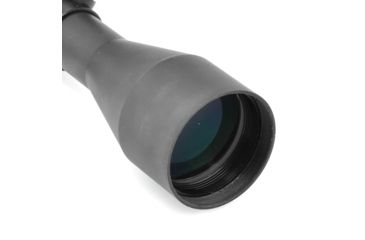

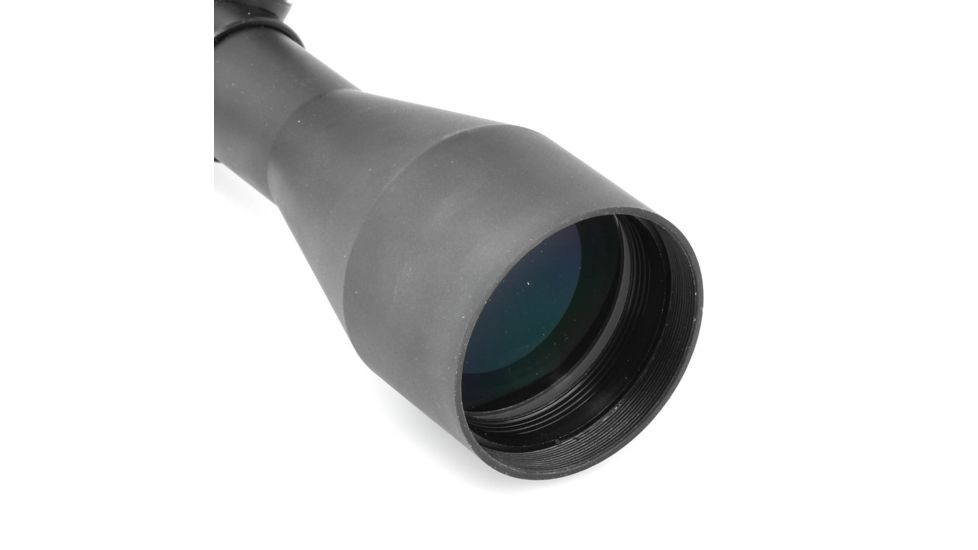

This ATR scope from Hi-Lux Optics gives you gorgeous views and access to nifty features that will improve your precision and performance when shooting a sporting rifle. Hi-Lux Leatherwood designed these Rifle Scopes with large, DiamondTuff fully multi-coated 50mm objective lenses that create a bright and brilliant sight picture capable of performing in nearly any shooting environment. With high magnification and precise turret adjustments, this 4-16x50 scope is the ideal optic for long-range hunters and target shooters.image

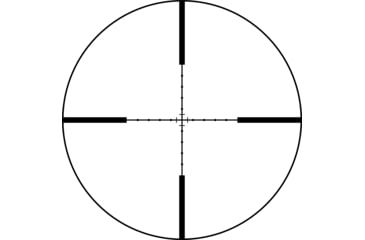

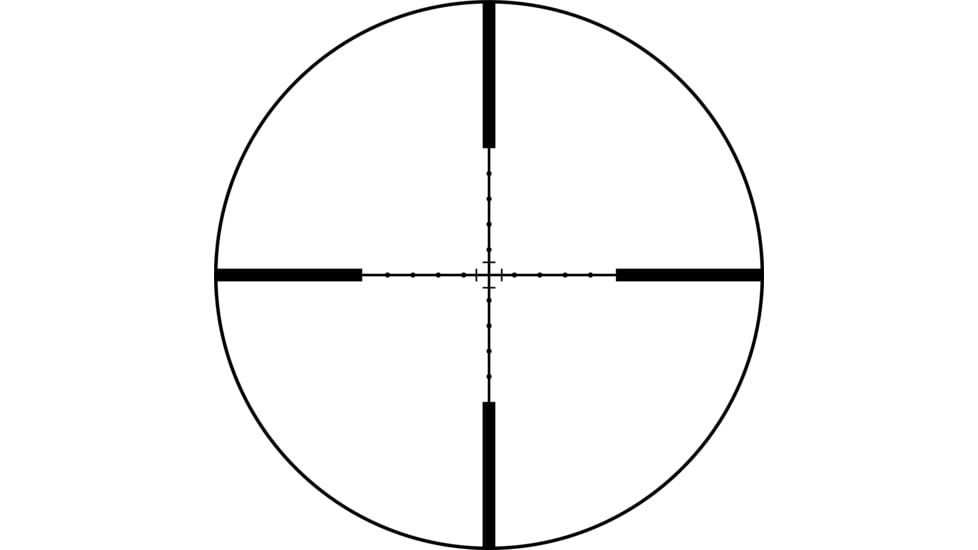

Hi-Lux Optics ATR Top-Angle Professional 30mm Series scopes are available with a variety of reticle options, including a classic Mil-Dot reticle or their illuminated MLR reticles that can help improve target acquisition speed and vision in low-light environments. Built from rugged yet lightweight aluminum and finished with Hi-Lux PermaCoat soft luster coatings, this long-range scope offers extra strength and corrosion resistance to overcome the most grueling conditions in the field. Sharpen your shooting skills when taking on targets at a distance with this Hi-Lux Top Angle 4x-16x Rifle Scope.

Features of Hi-Lux Optics Top Angle 4-16x50mm Rifle Scopes, 30mm Tube, Second Focal Plane (SFP)

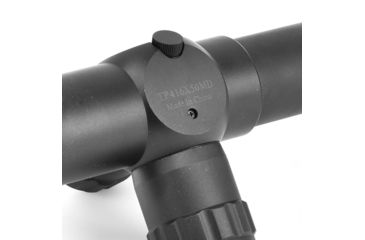

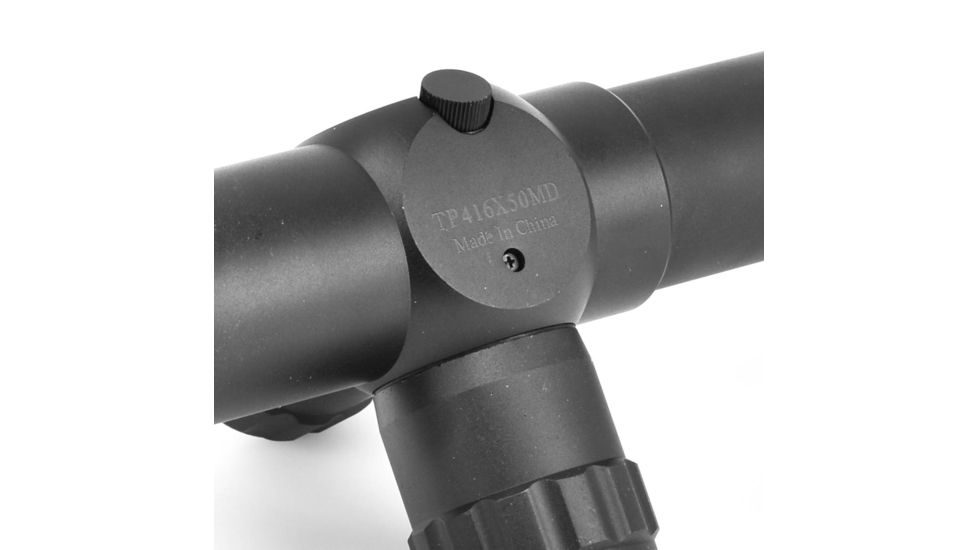

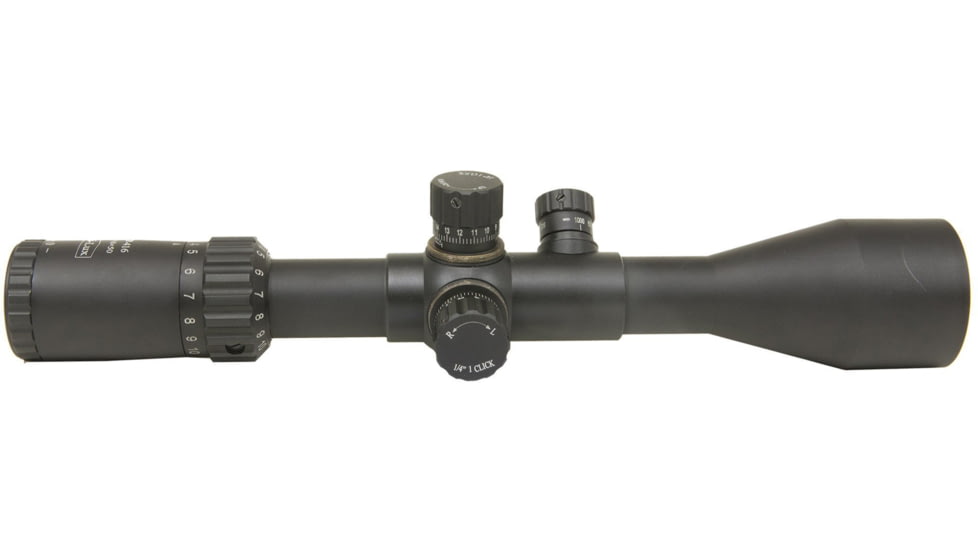

  • The Top Angle 4-16X50 rifle scope offers ambidextrous parallax controls located 45 degrees offset on the main tube
  • The scope is housed in a 30mm main tube for more internal adjustment travel than conventional 1" rifle scopes

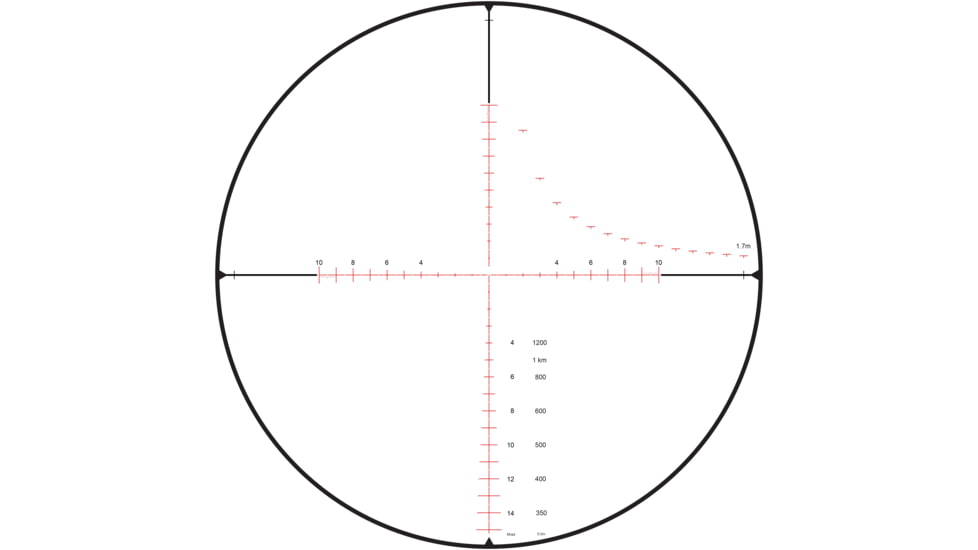

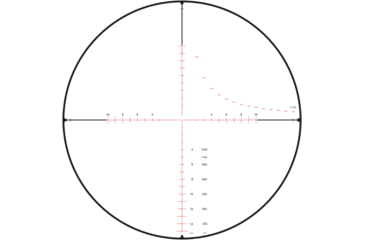

  • This model offers an illuminated Medium to Long Range (MLR) Ranging Reticle that is based in Mils.

Package Contents:

  • Hi-Lux Optics Top Angle 4-16x50mm Rifle Scopes, 30mm Tube, Second Focal Plane (SFP)
  • Flip Up Lens Covers
  • Microfiber Cloth
  • CR2032 Battery

Riflescope Accessories

1–60 / 60
Previous
Next

Firearm Case

1–21 / 21
Previous
Next

Related Products to Hi-Lux Optics Top Angle 4-16x50mm Rifle Scopes, 30mm Tube, Second Focal Plane (SFP)

Hi-Lux Optics Top Angle 4-16x50mm Rifle Scopes, 30mm Tube, Second Focal Plane (SFP) Unavailable & Discontinued Models

List of Unorderable Models

  • Hi-Lux Optics Top Angle 4-16x50mm Rifle Scopes, 30mm, Second Focal Plane, Mil-Dot, Matte, Black, TP416x50MD , MPN: TP416x50MD , UPC: 810194020063 , Code: LW-RS-TP416X50-TP416x50MD

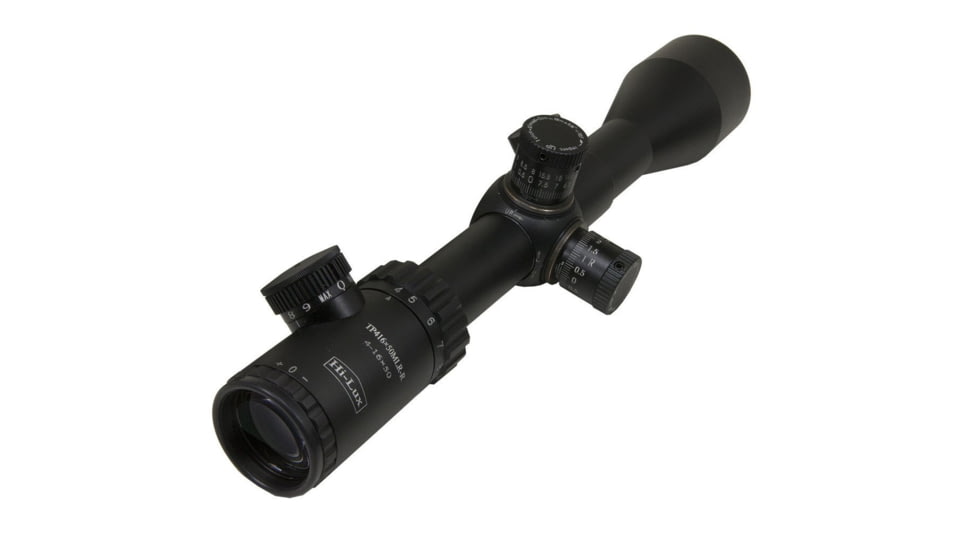

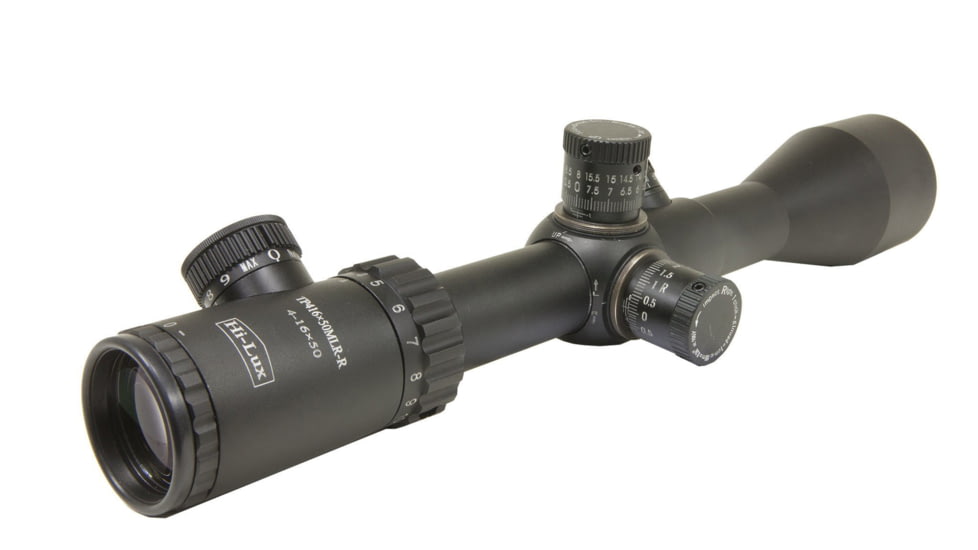

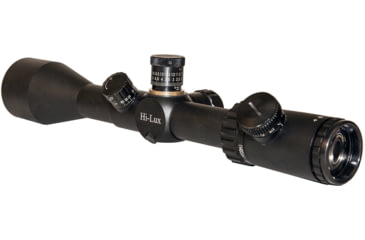

  • Hi-Lux Optics Top Angle 4-16x50mm Rifle Scopes, 30mm, Second Focal Plane, Illuminated MLR Red, Matte, Black, TP416x50MLR-R , MPN: TP416x50MLR-R , UPC: 810194020087 , Code: LW-RS-TP416X50-TP416X50MLR-R
  • Hi-Lux Optics Top Angle 4-16x50mm Rifle Scopes, 30mm, Second Focal Plane, TP416x50MD-DEMO , MPN: TP416x50MD-DEMO , Code: LW-RS-TP416X50-TP416x50MD-DEMO
  • Hi-Lux Optics Top Angle 4-16x50mm Rifle Scopes, 30mm Tube, Second Focal Plane, Illuminated MLR Green, Matte Black, TP416X50MLR , MPN: TP416x50MLR , UPC: 810194020070 , Code: LW-RS-TP416X50-TP416X50MLR
