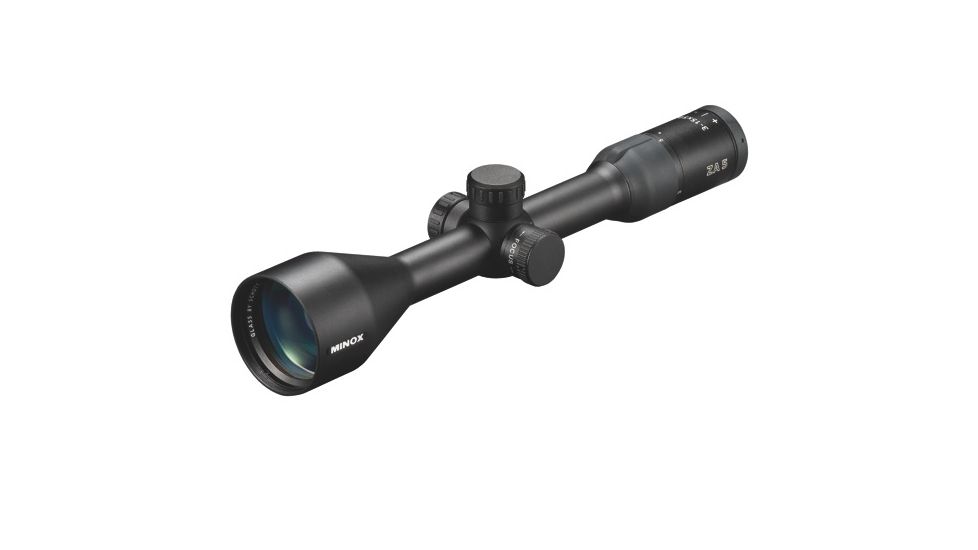

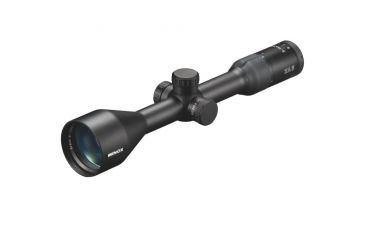

Minox ZA 5 3-15x50 Rifle Scope w/Side Focus Parallax Adjustment
Tap Tap to Zoom
Read More...
Product Discontinued by Manufacturer
Minox ZA 5 3-15x50 Rifle Scope w/Side Focus Parallax Adjustment has been discontinued by Minox and is no longer available. Our product experts have helped us select these available replacements below.You can also explore other items in the Rifle Scopes & Accessories, Rifle Scopes yourself to try and find the perfect replacement for you!
Product Info for Minox ZA 5 3-15x50 Rifle Scope w/Side Focus Parallax Adjustment
Minox ZA 5 3-15x50 SF Rifle Scopes offer a lens system that delivers target-popping contrast and "can’t hide" brightness dawn or dusk, rain or shine, ensuring accurate shot placement no matter how challenging the conditions. The ZA5 3x-15x 50mm Side Focus Rifle Scope provides the highest quality and traditional German Engineering Values. These Rifle Scopes maintain values such as quality, precision and ruggedness in sport optics development and manufacturing which reflects the Minox philosophy. These Minox Rifle Scopes feature lenses from legendary German glass specialist SCHOTT, who have been developing and manufacturing special glass for more than 125 years.
NOTE: Warranty does not cover fire, theft, loss, or intentional damage
Specifications for Minox ZA-5 3x to 15x 50mm Side Focus Rifle Scope:
| Clear aperture (inch): | 1.97 |
| Parallax adjustment -Range (Side focus): | 25yds |
| Fully Multicoated: | Yes |
| Eye relief: | > 4.0" |
| Exit pupil high power: | 0.13" |
| Exit pupil low power: | 0.66" |
| Eyepiece - diopter (min): | -2 |
| Eyepiece + diopter (min): | 1.5 |
| Magnification high power (mm): | 15 |
| Magnification low power (mm): | 3 |
| Field of View Low Power/ft@100yds: | 31.5 |
| Field of View High Power/ft@100yds: | 6.3 |
| Windage / Elevation Click values: | 1/4 min |
| Windage travel - total: | 50 min |
| Min travel one direction from optinial center: | 25 min |
| Elevation travel - total: | 50 min |
| Main tube Outside diameter: | 1" |
| Overall length 12.3": | 12.4" |
| Front mounting distance: | 1.97" |
| Rear mounting distance: | 2.17" |
| Weight: | 13.8 oz |
Features Minox 3-15x50mm SF Rifle Scopes:
- Side Focus Parallax Adjustment
- Lenses by legendary German glass specialist SCHOTT AG
- Minox M* coating - up to 21 different layers applied to the glass surface to greatly improve light transmission, brightness, contrast, detail, and color rendering
- Windage and elevation knobs, finger adjustable, with positive & precise reticle movements of 1/4 MOA, zero resettable
- Long four inch plus eye relief
- Rubber cushioned fast-focus eyepiece
- Smooth operating soft-touch rubber variable power ring
Package Contents:
- Minox ZA 5 3-15x50 SF Rifle Scope
Related Products to Minox ZA 5 3-15x50 Rifle Scope w/Side Focus Parallax Adjustment
Minox ZA 5 3-15x50 Rifle Scope w/Side Focus Parallax Adjustment Unavailable & Discontinued Models
List of Unorderable Models
- Minox ZA 5 3-15x50 SF Rifle Scope, MinoPlex Reticle - 66520 , MPN: 66520 , UPC: 4007450665205 , Code: MX-RS-ZA5-315X50-66520
- Minox ZA 5 3-15x50 SF Rifle Scope, XR-BDC Reticle - 66522 , MPN: 66522 , UPC: 4007450665229 , Code: MX-RS-ZA5-315X50-66522
- Minox ZA 5 3-15x50 SF Waterproof Rifle Scope, BDC Reticle, Matte Black - 66521 , MPN: 66521 , UPC: 4007450665212 , Code: MX-RS-ZA5-315X50-66521

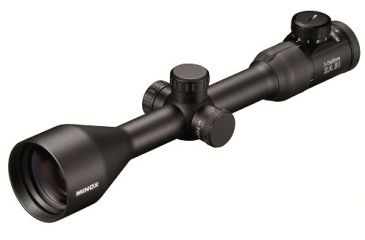

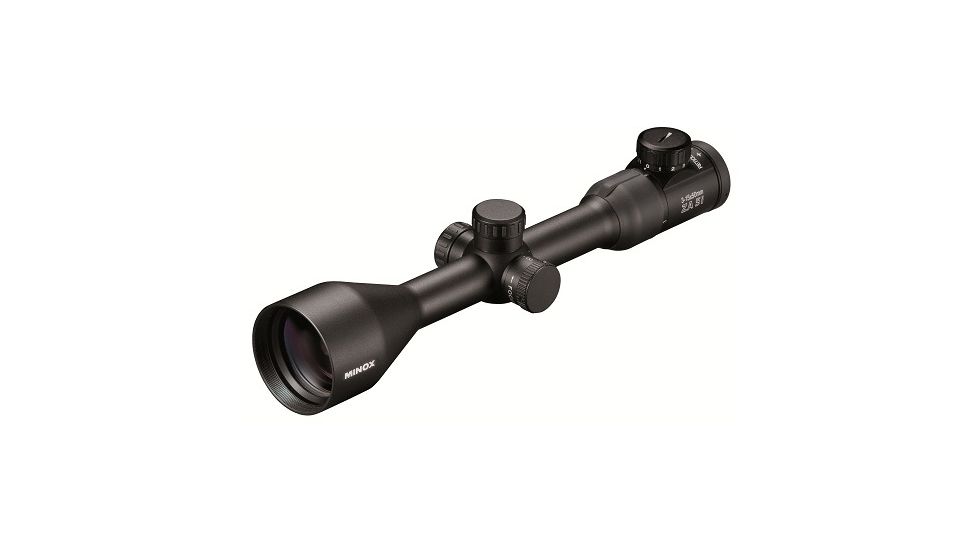

- Minox ZA 5i 3-15x50 SF w/Illuminaded Plex Reticle, Black 66525 , MPN: 66525 , UPC: 4007450665250 , Code: MX-RS-ZA5-315X50-66525
